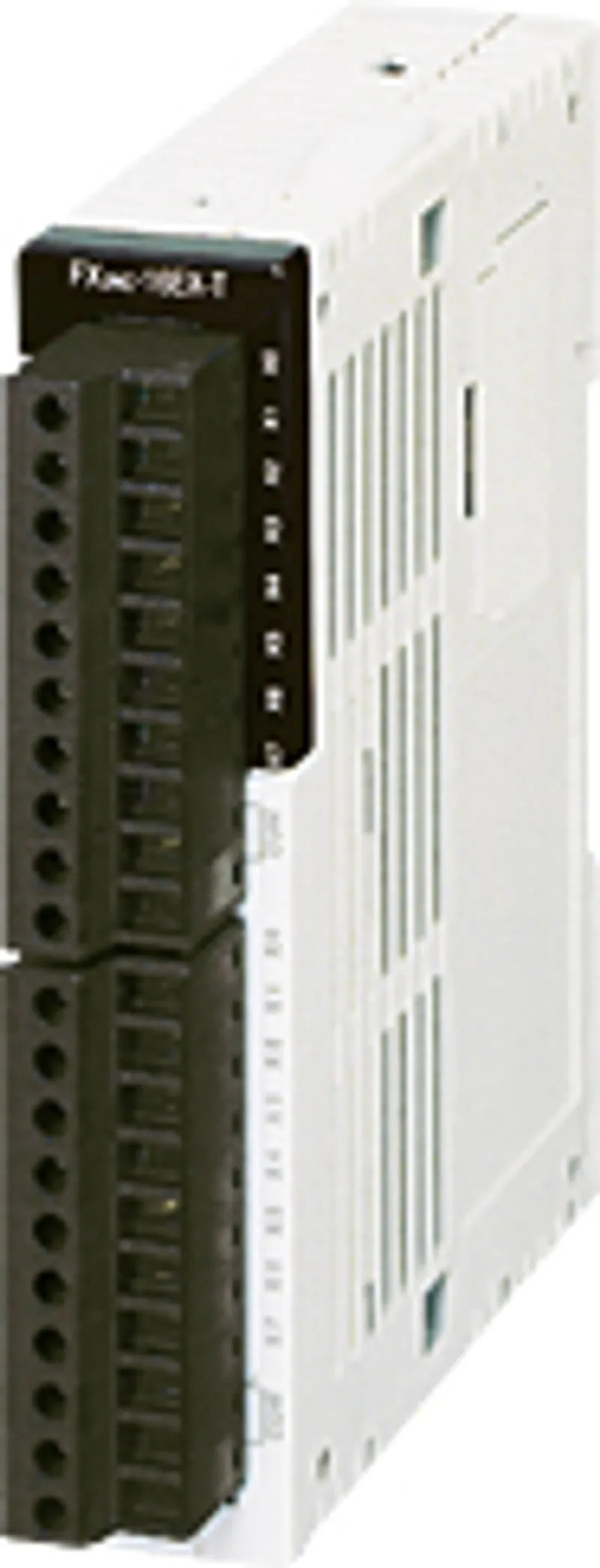

FX2NC-16EX-T Mitsubishi MELSEC-F (FX) Series Input/output extension

MPN: FX2NC-16EX-T · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Input/output extension
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX2NC-16EX-T be shipped?

FX2NC-16EX-T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2NC-16EX-T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2NC-16EX-T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-16EX-T, subject to availability and destination.

The Mitsubishi Electric FX2NC-16EX-T is a input/output extension in the MELSEC-F (FX) Series. Input: 16 points. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Input/output extension
Sales status	2028/03 To be end of order (Mitsubishi Electric)
Outline	Input: 16 points

Specifications

Applicable PLC	FX1NC, FX3GC, FX2NC, FX3UC
Mass (weight)	0.15 kg

Power supply specifications

Rated voltage

PLC internal power

Input specifications

Power consumption	2.2 W
No. of input points	16 points
Input connection type	Terminal block for Europe
Input type	Sink
Input signal form	No-voltage contact input or NPN open collector transistor
Input signal voltage	24 V DC +20% -15% Ripple voltage (p-p) 5% or less
Input signal current	5 mA/24 V DC
Input impedance	4.3 kΩ
ON input sensitivity current	3.5 mA or more
OFF input sensitivity current	1.5 mA or less
Input response time	Approx. 10 ms
Input circuit insulation	Photocoupler insulation
Indication of input operation	LED is lit when input is on

Specifications

Ambient temperature	0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between input terminal of extension input block and ground terminal: 500 V AC for 1 min
Insulation resistance	Between input terminal of extension input block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
