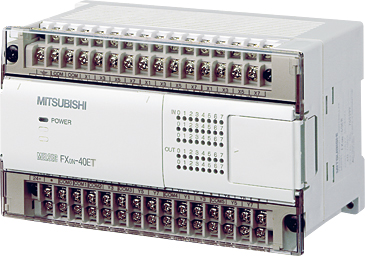

FX0N-40ET Mitsubishi MELSEC-F (FX) Series Input/output extension

MPN: FX0N-40ET · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX0N-40ET (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Input/output extension
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX0N-40ET now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX0N-40ET, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX0N-40ET be shipped?

FX0N-40ET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX0N-40ET in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX0N-40ET and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX0N-40ET, subject to availability and destination.

The Mitsubishi Electric FX0N-40ET is a input/output extension in the MELSEC-F (FX) Series. Input: 24 points Output: 16 points. Mitsubishi Electric has discontinued it (2012/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Input/output extension
Sales status	2012/09 Discontinued (Mitsubishi Electric)
Outline	Input: 24 points Output: 16 points

Specifications

Applicable PLC	FX1N
Mass (weight)	0.75 kg

Power supply specifications

Rated voltage	100 V to 240 V AC
Allowable supply voltage range	85 V to 264 V AC
Frequency rating	50/60 Hz
Power fuse	3 A
Rush current	100 V AC: 30 A max. 5 ms or less 200 V AC: 50 A max. 5 ms or less
Power consumption	40 VA
24 V DC service power supply	200 mA The presence of the extension block is irrelevant.

Input specifications

No. of input points	24 points
Input connection type	Removable terminal block (M3 screw)
Input type	Sink
Input signal form	No-voltage contact or NPN open collector transistor
Input signal voltage	24 V DC±10%
Input signal current	5 mA/24 V DC
Input impedance	4.3 kΩ
ON input sensitivity current	3.5 mA or more
OFF input sensitivity current	1.5 mA or less
Input response time	Approx. 10 ms
Input circuit insulation	Photocoupler insulation
Indication of input operation	LED on panel lights when input.

Output specifications

No. of output points	16 points
Output connection type	Removable terminal block (M3 screw)
Output type	Transistor/sink output
External power supply	5 V to 30 V DC
Max. load: Resistance load	0.5 A/1 point The total load current per common terminal should be the following value. ・4 output points/common terminal: 0.8 A or less
Max. load: Inductive load	12 W/24 V DC
Open circuit leakage current	0.1 mA/30 V DC
Response time: OFF→ON	0.2 ms or less for 200 mA (at 24 V DC)
ON voltage	1.5 V or less
Response time: ON→OFF	0.2 ms or less for 200 mA (at 24 V DC)
Insulation of circuit	Photocoupler insulation
Indication of output operation	When photocoupler is driven, LED on panel is lit.

Specifications

Ambient temperature	0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between power supply terminal (AC power supply) and ground terminal: 1500 V AC for 1 min Between 24 V DC service power supply connected to input terminal (24 V DC) and ground terminal: 500 V AC for 1 min Between output terminal (transistor) and ground terminal: 500 V AC for 1 min
Insulation resistance	Between each terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
