Mitsubishi Electric FX0N-40ER-DS

Mitsubishi MELSEC-F (FX) Series Input/output extension

MPN
FX0N-40ER-DS
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX0N-40ER-DS (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX0N-40ER-DS?

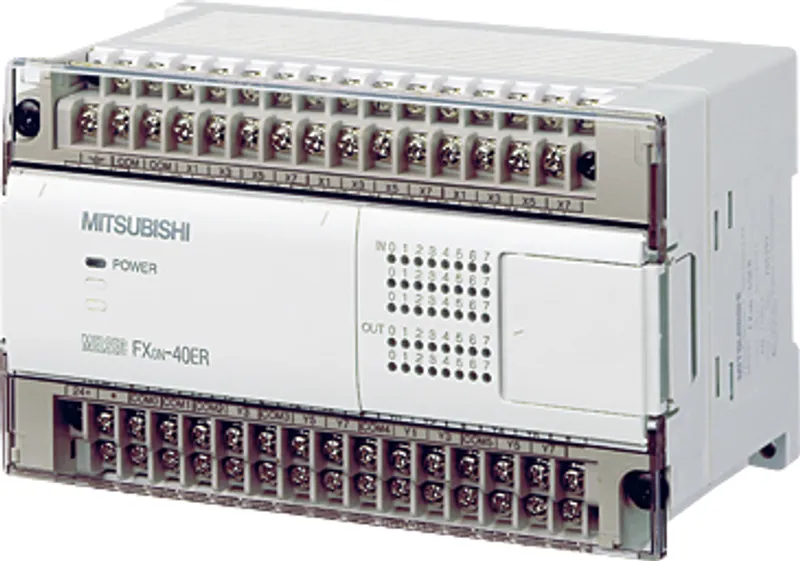

The Mitsubishi Electric FX0N-40ER-DS is a input/output extension in the MELSEC-F (FX) Series. Input: 24 points Output: 16 points. Mitsubishi Electric has discontinued it (2012/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryInput/output extension
Sales status2012/09 Discontinued (Mitsubishi Electric)
OutlineInput: 24 points Output: 16 points

Specifications

Applicable PLCFX1N
Mass (weight)0.75 kg

Power supply specifications

Rated voltage24 V DC
Allowable supply voltage range+20%, -15%
Power fuse3 A
Power consumption20 W

Input specifications

No. of input points24 points
Input connection typeRemovable terminal block (M3 screw)
Input typeSink/source
Input signal formSink: No-voltage contact input or NPN open collector transistor Source: No-voltage contact input or PNP open collector transistor
Input signal voltage24 V DC +20%, -15%
Input signal current5 mA/24 V DC
Input impedance4.3 kΩ
ON input sensitivity current3.5 mA or more
OFF input sensitivity current1.5 mA or less
Input response timeApprox. 10 ms
Input circuit insulationPhotocoupler insulation
Indication of input operationLED on panel lights when input.

Output specifications

No. of output points16 points
Output connection typeRemovable terminal block (M3 screw)
Output typeRelay
External power supply240 V AC 30 V DC or less (250 V AC or less when the unit does not comply with CE standards)
Max. load: Resistance load2 A/1 point The total load current per common terminal should be the following value. ・4 output points/common terminal: 8 A or less
Max. load: Inductive load80 VA
Min. load5 V DC, 2 mA (reference value)
Response time: OFF→ONApprox. 10 ms
Response time: ON→OFFApprox. 10 ms
Insulation of circuitMechanical insulation
Indication of output operationWhen power is applied to relay coil, LED is lit.

Specifications

Ambient temperature0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween power supply terminal (DC power supply) and ground terminal: 500 V AC for 1 min Between input terminal (24 V DC) and ground terminal: 500 V AC for 1 min Between output terminal (relay) and ground terminal: 1500 V AC for 1 min
Insulation resistanceBetween each terminals and ground: 5 MΩ or higher by 500 V DC insulation resistance tester
GroundingClass D grounding (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.

FX0N-40ER-DS: frequently asked questions

Can I still buy the FX0N-40ER-DS now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX0N-40ER-DS, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX0N-40ER-DS be shipped?

FX0N-40ER-DS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX0N-40ER-DS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX0N-40ER-DS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX0N-40ER-DS, subject to availability and destination.
