Mitsubishi Electric FX1N-1DA-BD

Mitsubishi MELSEC-F (FX) Series Analog

MPN
FX1N-1DA-BD
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX1N-1DA-BD (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX1N-1DA-BD?

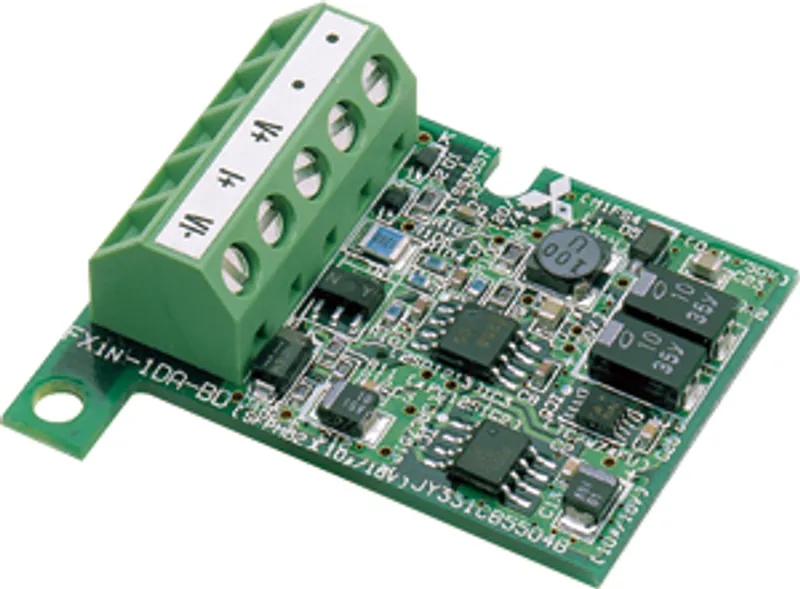

The Mitsubishi Electric FX1N-1DA-BD is a analog in the MELSEC-F (FX) Series. Analog output: 1 ch. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryAnalog
Sales status2015/12 Discontinued (Mitsubishi Electric)
OutlineAnalog output: 1 ch

Specifications

Applicable PLCFX1S (V2.0 or later), FX1N (V2.0 or later)
Number of occupied I/O points0 point (This number is not related to the maximum number of input/output points of the PLC.)
Analog output: Analog output range: Voltage output0 V to +10 V DC (External load resistance: 2 kΩ to 1 MΩ)
Analog output: Analog output range: Current output4 mA to 20 mA DC (External load resistance: 500 Ω or less)
Analog output: No. of output channels1 channel
Analog output: Output characteristicsThe output characteristics cannot be adjusted.
Analog output: Digital input: Voltage output12 bits, binary
Analog output: Digital input: Current output11 bits, binary
Analog output: Resolution: Voltage output2.5 mV (10 V × 1/4000)
Analog output: Resolution: Current output8 μA (16 mA × 1/2000)
Analog output: Total accuracy: Voltage output±1% (±0.1 V) for 10 V full scale
Analog output: Total accuracy: Current output±1% (±0.16 mA) for 16 mA full scale
Analog output: Time required for D/A conversionApprox. 10 ms (D/A conversion starts with the END instruction, and is output after approx. 10 ms.)
Analog output: Isolation methodThe channels between the analog input area and PLC are non-isolation.

Power supply specifications

Power supplyPLC internal power

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -20 to 70°C (-4 to 158 °F) when stored
Ambient humidity35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzAmplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageThe analog output area is not insulated from the PLC. (Do not perform a withstand voltage test.)
Insulation resistanceThe analog input area is not insulated from the PLC. (Do not perform an insulation resistance test.)
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.

FX1N-1DA-BD: frequently asked questions

Can I still buy the FX1N-1DA-BD now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX1N-1DA-BD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX1N-1DA-BD be shipped?

FX1N-1DA-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX1N-1DA-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX1N-1DA-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX1N-1DA-BD, subject to availability and destination.
