Mitsubishi Electric FX0N-3A

Mitsubishi MELSEC-F (FX) Series Analog

MPN
FX0N-3A
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX0N-3A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

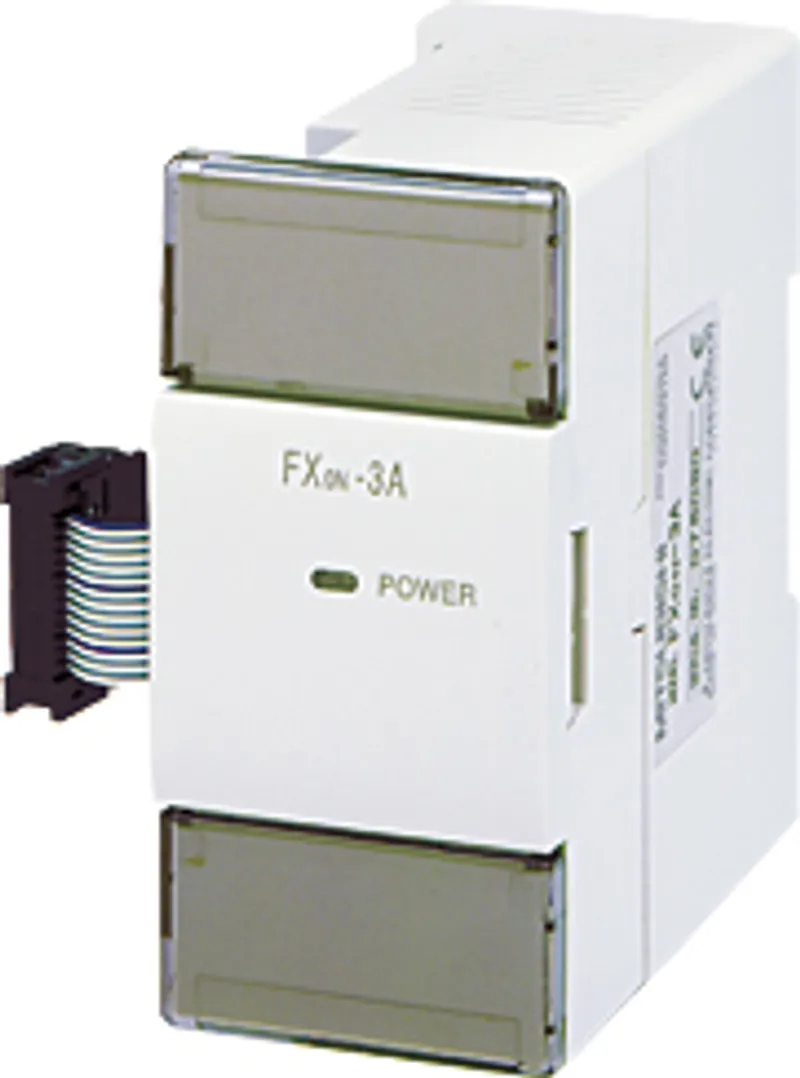

What is the Mitsubishi Electric FX0N-3A?

The Mitsubishi Electric FX0N-3A is a analog in the MELSEC-F (FX) Series. Analog input: 2 ch Analog output: 1 ch. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryAnalog
Sales status2015/12 Discontinued (Mitsubishi Electric)
OutlineAnalog input: 2 ch Analog output: 1 ch

Specifications

Applicable PLCFX1N, FX2N, FX3U, FX1NC, FX2NC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC and FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3UC.
Number of occupied I/O points8 points (Taken from either the input or output points of the PLC.)
Mass (weight)0.2 kg
Analog input: Analog input range: Voltage input0 V to 10 V DC, 0 V to 5 V DC(Input resistance 200kΩ)
Analog input: Analog input range: Current input4 to 20 mA DC (Input resistance 250 Ω)
Analog input: Number of input channels2 channels
Analog input: Absolute maximum input: Voltage input-0.5 V, +15 V
Analog input: Absolute maximum input: Current input-2 mA, +60 mA
Analog input: Input characteristics• Voltage input and current input cannot be used together. • The input characteristics are the same for both channels. • The input characteristics can be adjusted with the OFFSET/GAIN volume.
Analog input: Digital output8 bits binary
Analog input: Resolution: Voltage inputWhen 0 V to 10 V: 40 mV (10 V × 1/250) When 0 V to 5 V: 20 mV (5 V × 1/250)
Analog input: Resolution: Current input64 μA (16 mA × 1/250)
Analog input: Total accuracy: Voltage input±1% (±0.1 V) for 10 V full scale Same for 0 V to 5 V DC input (±0.1V)
Analog input: Total accuracy: Current input±1% (±0.16 mA) for 16 mA full scale
Analog input: A/D conversion timeTO instruction processing time × 2 + FROM instruction processing time (Operation synchronized with sequence program)
Analog input: Isolation method・The photocoupler is used to insulate the analog input area from the PLC. ・Channels are not insulated from each other.
Analog output: Analog output range: Voltage output0 V to 10 V DC, 0 V to 5 V DC (External load resistance: 1 kΩ to 1 MΩ)
Analog output: Analog output range: Current output4 mA to 20 mA DC (External load resistance: 500 Ω or less)
Analog output: No. of output channels1 channel
Analog output: Output characteristicsThe output characteristics can be adjusted with the OFFSET/GAIN volume.
Analog output: Digital input8 bits binary
Analog output: Resolution: Voltage outputWhen 0 V to 10 V: 40 mV (10 V × 1/250) When 0 V to 5 V: 20 mV (5 V × 1/250)
Analog output: Resolution: Current outputWhen 4 mA to 20 mA DC: 64 μA (16 mA × 1/250)
Analog output: Total accuracy: Voltage output±0.1 V
Analog output: Total accuracy: Current output±0.16 mA
Analog output: Time required for D/A conversionTO instruction processing time × 3 (Operation synchronized with sequence program)
Analog output: Isolation method・The photocoupler is used to insulate the analog output area from the PLC. ・Channels are not insulated from each other.

Power supply specifications

Power supply5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC ±10% 90 mA(internal power supply from PLC main unit)

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistanceBetween batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.

FX0N-3A: frequently asked questions

Can I still buy the FX0N-3A now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX0N-3A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX0N-3A be shipped?

FX0N-3A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX0N-3A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX0N-3A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX0N-3A, subject to availability and destination.
