Mitsubishi Electric FX-USB-AW

Mitsubishi MELSEC-F (FX) Series Option/Training

MPN
FX-USB-AW
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

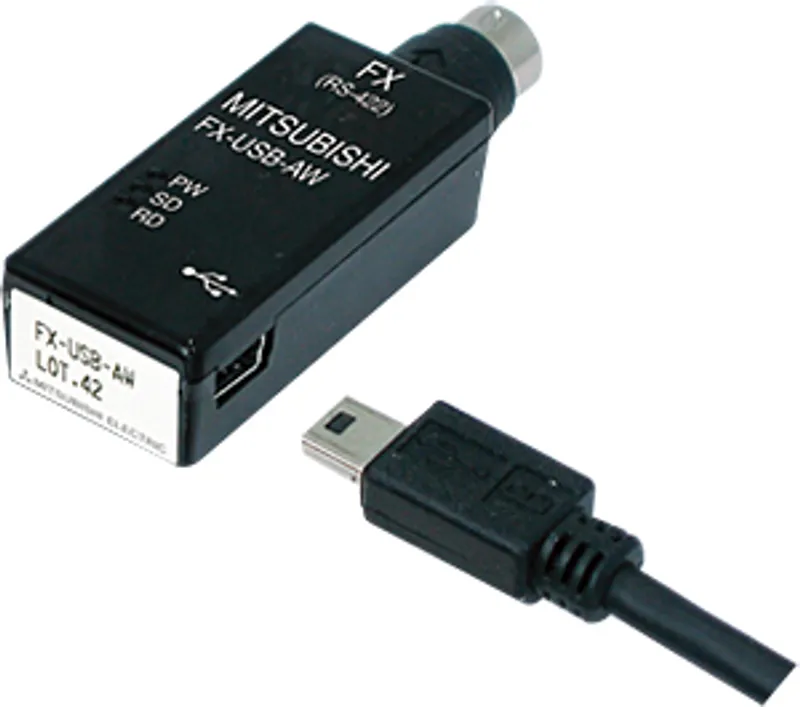

What is the Mitsubishi Electric FX-USB-AW?

The Mitsubishi Electric FX-USB-AW is a option/Training in the MELSEC-F (FX) Series. RS-422/USB converter for between PLC and PC. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryOption/Training
Sales status2028/03 To be end of order (Mitsubishi Electric)
OutlineRS-422/USB converter for between PLC and PC

Specifications

Connectable devices and transmission speedFX0, FX0S, FX0N, FX1S: 9.6 kbps FX1N, FX1NC: 19.2 kbps or less FX2N (Earlier than Ver. 3.00), FX2NC (Earlier than Ver. 3.00): 9.6 kbps FX2N (Ver.3.00 or later), FX2NC (Ver. 3.00 or later): 19.2 kbps or less FX3U, FX3UC: 115.2 kbps or less FX2N-10GM, FX2N-20GM: 9.6 kbps FX2N-1RM(-E)-SET: 9.6 kbps
SoftwareGX Works2 (SW□DNC-GXW2-J, SW□DNC-GXW2-E) GX Developer (SW□D5C-GPPW-J, SW□D5C-GPPW-E) FX-PCS/WIN *1 , FX-PCS/WIN-E *2 FX-PCS-VPS/WIN,FX-PCS-VPS/WIN-E *1 FX-PCS/WIN for versions earlier than 4.40, the communication port setting can be selected from COM1-COM4. For versions 4.40 or later, the communication port setting can be selected from COM1-COM9. *2 FX-PCS/WIN-E for versions earlier than 3.30, the
OSWindows (R) 98(SE) Windows (R) Millennium Edition Windows (R) 2000 Windows (R) XP Windows Vista (R) Windows (R) 7 Windows (R) 8 Windows (R) 8.1 Windows (R) 10 Windows (R) 11 Windows Vista (R) is supported with USB driver software Ver. 1.10 or later. Windows (R) XP, Windows Vista (R) is only the 32-bit version of this operating system is supported. Windows (R) 7 32-bit version OS is supported with
Device driverIncluded in the installer for GX Works2 Ver. 1.585K or later.
Power Supply Voltage (Current consumption)RS-422: 5 V DC (15 mA) USB: 5 V DC (30 mA)
Baud Rate115.2 kbps or less (The baud rate is different in PLC.)
Port: FX-USB-AW: To RS-422Mini-DIN 8Pin male
Port: FX-USB-AW: To FX-USB-AWUSB Mini-B plug female
Port: To a cable: To FX-USB-AWUSB Mini-B plug male
Port: To a cable: To PCUSB A plug male
Cable length: RS-422Directly mount on PLC (extension not possible)
Cable length: USBIncluded cable is 3 m. (5 m at most)

FX-USB-AW: frequently asked questions

When can FX-USB-AW be shipped?

FX-USB-AW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX-USB-AW in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX-USB-AW and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX-USB-AW, subject to availability and destination.
