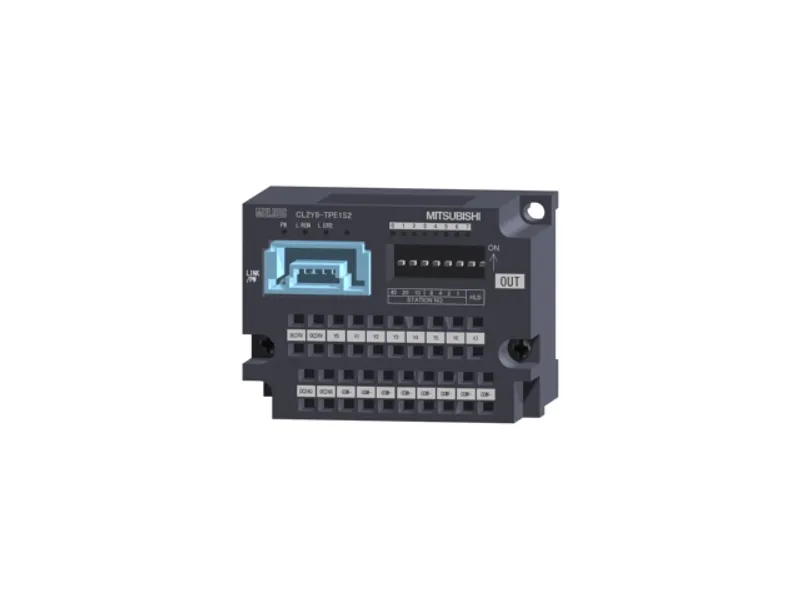

CL2Y8-TPE1S2 Mitsubishi MELSEC network modules Remote I/O

MPN: CL2Y8-TPE1S2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original CL2Y8-TPE1S2 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link/LT
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the CL2Y8-TPE1S2 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the CL2Y8-TPE1S2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CL2Y8-TPE1S2 be shipped?

CL2Y8-TPE1S2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CL2Y8-TPE1S2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CL2Y8-TPE1S2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CL2Y8-TPE1S2, subject to availability and destination.

The Mitsubishi Electric CL2Y8-TPE1S2 is a remote I/O in the MELSEC network modules. Transistor output: 8 points, 12/24 V DC, 0.1 A/point, source type, spring-clamp terminal block type. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output
Sales status	2025/03 Discontinued (Mitsubishi Electric)
Outline	Transistor output: 8 points, 12/24 V DC, 0.1 A/point, source type, spring-clamp terminal block type

Output specifications

Output type	Transistor output (source type)
Number of output points	8 points
Rated load voltage	12/24 V DC
Operating load voltage range	10.2...28.8 V DC (ripple ratio: within 5 %)
Maximum load current	0.1 A/point, 0.8 A/common
Maximum inrush current	0.7 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.1 V DC or less (TYP.) 0.1 A, 0.2 V DC or less (MAX.) 0.1 A
Output response time: OFF to ON	1.0 ms or less
Output response time: ON to OFF	1.0 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function	Overload protection, overheat protection
External power supply for output part: Voltage	10.2...28.8 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	10 mA or less (at 24 V DC and all points ON), excluding external load current
Output common terminal arrangement	8 points/common (2-wire, terminal block type)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between primary (external DC terminal) and secondary (internal circuit): 500 V AC for 1 minute
Insulation resistance	Between primary (external DC terminal) and secondary (internal circuit): 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Number of occupied stations	In 4-point mode: 2 stations In 8 or 16-point mode: 1 station
Module power supply: Voltage	24 V DC (-15...+20 %) (ripple ratio: within 5 %)
Module power supply: Current	40 mA or less (at 24 V DC, all points ON)
Module power supply: Current on startup	90 mA or less (at 24 V DC)
External interface	20-point two-piece spring clamp terminal block
External dimensions: Height	41 mm
External dimensions: Width	69 mm
External dimensions: Depth	40 mm
Weight	0.13 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
