CL2Y8-TP1B2 Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original CL2Y8-TP1B2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link/LT |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the CL2Y8-TP1B2 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the CL2Y8-TP1B2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CL2Y8-TP1B2 be shipped?
CL2Y8-TP1B2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CL2Y8-TP1B2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CL2Y8-TP1B2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CL2Y8-TP1B2, subject to availability and destination.
The Mitsubishi Electric CL2Y8-TP1B2 is a remote I/O in the MELSEC network modules. Transistor output: 8 points, 12/24 V DC, 0.1 A/point, sink type, terminal block type. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Subtype | Output |
| Sales status | 2025/03 Discontinued (Mitsubishi Electric) |
| Outline | Transistor output: 8 points, 12/24 V DC, 0.1 A/point, sink type, terminal block type |
Output specifications
| Output type | Transistor output (sink type) |
| Number of output points | 8 points |
| Rated load voltage | 12/24 V DC |
| Maximum load current | 0.1 A/point, 0.8 A/common |
| Maximum inrush current | 0.7 A, 10 ms or less |
| Leakage current at OFF | 0.1 mA or less |
| Maximum voltage drop at ON | 0.3 V DC or less (TYP.) 0.1 A, 0.6 V DC or less (MAX.) 0.1 A |
| Output response time: OFF to ON | 0.5 ms or less |
| Output response time: ON to OFF | 0.5 ms or less (resistive load) |
| Surge suppressor | Zener diode |
| Protection function | Overload protection, overheat protection |
| External power supply for output part: Voltage | 10.2...28.8 V DC (ripple ratio: within 5 %) |
| External power supply for output part: Current | 15 mA or less (at 24 V DC and all points ON), excluding external load current |
| Output common terminal arrangement | 8 points/common (2-wire, terminal block type) |
| Output isolation method | Photocoupler |
Common specifications
| Dielectric withstand voltage | Between primary (external DC terminal) and secondary (internal circuit): 500 V AC for 1 minute |
| Insulation resistance | Between primary (external DC terminal) and secondary (internal circuit): 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP2X |
| Number of occupied stations | In 4-point mode: 2 stations In 8 or 16-point mode: 1 station |
| Module power supply: Voltage | 24 V DC (-15...+20 %) (ripple ratio: within 5 %) |
| Module power supply: Current | 40 mA or less (at 24 V DC, all points ON) |
| External interface | 14-point direct-mount terminal block (M3 screw) |
| External dimensions: Height | 41 mm |
| External dimensions: Width | 64 mm |
| External dimensions: Depth | 40 mm |
| Weight | 0.09 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -25...75 ˚C |
| Operating ambient humidity | 5...95 %RH, non-condensing |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CL2Y8-TP1B2 CC-Link/LT Remote I/O Module User's Manual (IB-0800234E-E) | PDF · 0.24MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestCL2Y16-TP1C2V Mitsubishi MELSEC network modules Remote I/O
Available on requestCL2Y16-TP1M1V Mitsubishi MELSEC network modules Remote I/O
Available on requestCL2Y16-TP1MJ1V Mitsubishi MELSEC network modules Remote I/O

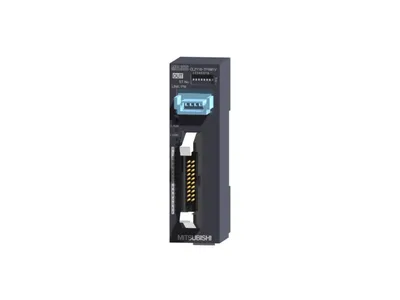

Available on requestCL2Y16-TPE1M1V Mitsubishi MELSEC network modules Remote I/O
