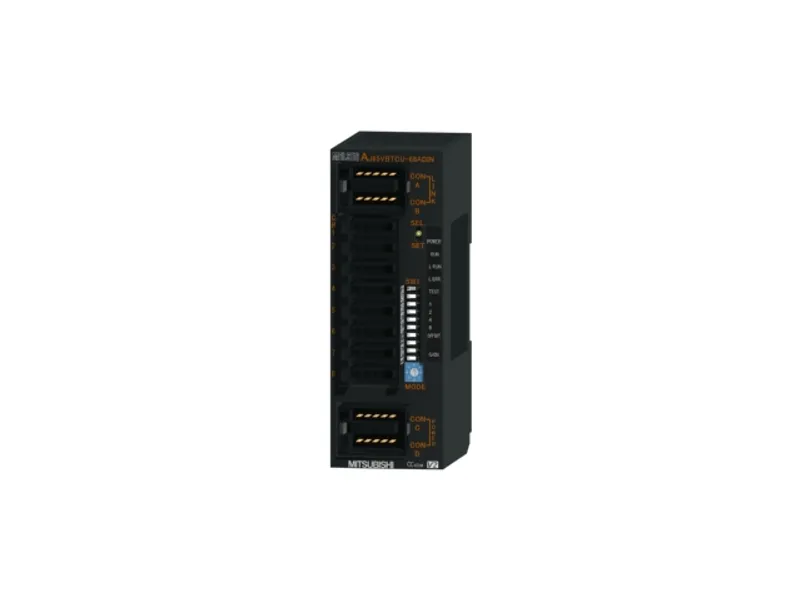

AJ65VBTCU-68ADIN Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65VBTCU-68ADIN · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65VBTCU-68ADIN be shipped?

AJ65VBTCU-68ADIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65VBTCU-68ADIN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65VBTCU-68ADIN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65VBTCU-68ADIN, subject to availability and destination.

The Mitsubishi Electric AJ65VBTCU-68ADIN is a remote I/O in the MELSEC network modules. 8 channels, input: 0...20 mA DC, output (resolution): 0...4000, conversion speed: 1 ms/channel, one-touch connector type, number of occupied stations: 1 station (Ver.2)/3 stations (Ver.1). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Analog I/O
Subtype	Analog input
Outline	8 channels, input: 0...20 mA DC, output (resolution): 0...4000, conversion speed: 1 ms/channel, one-touch connector type, number of occupied stations: 1 station (Ver.2)/3 stations (Ver.1)

Specifications

Number of analog input points	8 points (8 channels)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Digital output	-96...+4095
I/O characteristics, resolution: Input range	Digital output value (maximum resolution)
I/O characteristics, resolution: Current input: 0...20 mA	0...4000 (5 µA)
I/O characteristics, resolution: Current input: 4...20 mA	0...4000 (4 µA)
I/O characteristics, resolution: Current input: User range setting (0...20 mA)	0...4000 (4 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ﾟC	±0.2 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ﾟC	±0.3 %
A/D conversion speed	1 ms/channel
Absolute maximum input: Current	±30 mA
Isolation method	Between communication system terminals and analog inputs: Digital isolator Between power supply system terminals and analog inputs: Transformer Between channels: Non-isolation
Dielectric withstand voltage	Between all power supply and communication system terminals and all analog input terminals: 500 V AC for 1 minute
Protection degree	IP1XB
Station type	Remote device station (Ver. 1 remote device station or Ver. 2 remote device station)
Number of occupied stations	When Ver. 1 remote device station is set: 3 stations When Ver. 2 remote device station is set: 1 station (expanded cyclic setting: 4 times)
Module power supply: Voltage	24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %)
Module power supply: Current	0.10 A (at 24 V DC)
Module power supply: Inrush current	6.0 A, 1.2 ms or less
External interface	Communication part: One-touch connector for communication (sold separately) Module power supply part: One-touch connector for power supply and FG (sold separately) I/O part: One-touch connector for I/O (sold separately)
Communication cable	Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110
External dimensions: Height	115 mm
External dimensions: Width	41 mm
External dimensions: Depth	67 mm
Weight	0.17 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Analog-Digital Converter Module type AJ65VBTCU-68ADVN/ADIN User's Manual (SH-080401E-J)	PDF · 4.74MB
Analog-Digital Converter Module User's Manual (Hardware) (IB-0800251E-K)	PDF · 0.58MB
