What is the Mitsubishi Electric AJ65VBTCF1-32DT1?

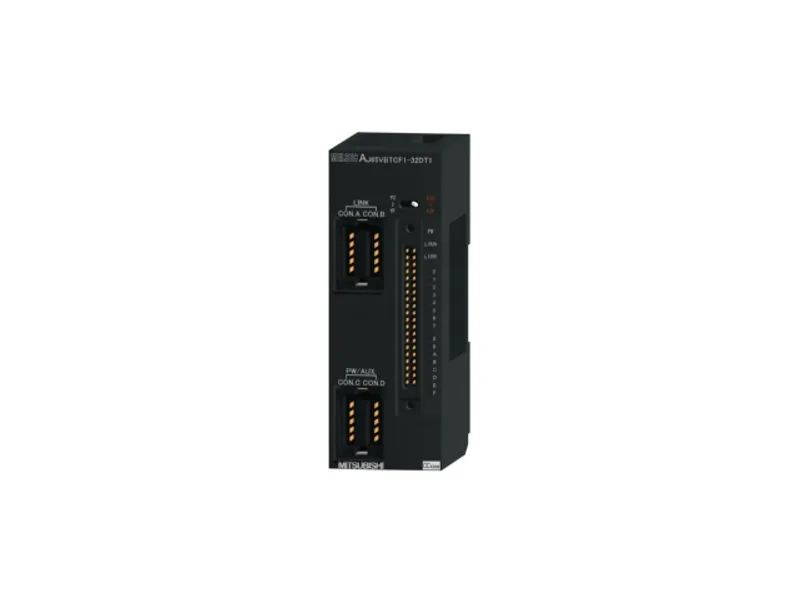

The Mitsubishi Electric AJ65VBTCF1-32DT1 is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC, 5 mA, response time: 0.2 ms, positive/negative common type, 1-wire, transistor output: 16 points, 12/24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 1-wire, FCN connector type (40-pin connector), number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeI/O
OutlineDC input: 16 points, 24 V DC, 5 mA, response time: 0.2 ms, positive/negative common type, 1-wire, transistor output: 16 points, 12/24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 1-wire, FCN connector type (40-pin connector), number of occupied stations: 1 station

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points16 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 % (front mounting), when any installation method other than the front mounting is performed, refer to the derating chart.
ON voltage/ON current15 V or more/3 mA or more
OFF voltage/OFF current3 V or less/0.5 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON0.2 ms or less (24 V DC)
Input response time: ON to OFF0.2 ms or less (24 V DC)
Input common terminal arrangement16 points/common (1-wire, FCN connector type)
Input isolation methodPhotocoupler

Output specifications

Output typeTransistor output (sink type)
Number of output points16 points
Rated load voltage12/24 V DC
Operating load voltage range10.2...26.4 V DC (ripple ratio: within 5 %)
Maximum load current0.1 A/point, 1.6 A/common
Maximum inrush current0.7 A, 10 ms or less
Leakage current at OFF0.1 mA or less
Maximum voltage drop at ON0.1 V DC or less (TYP.) 0.1 A, 0.2 V DC or less (MAX.) 0.1 A
Output response time: OFF to ON1 ms or less
Output response time: ON to OFF1 ms or less (rated load, resistive load)
Surge suppressorZener diode
Protection functionOverload protection, overvoltage protection, overheat protection
External power supply for output part: Voltage10.2...26.4 V DC (ripple ratio: within 5 %)
External power supply for output part: Current10 mA or less (at 24 V DC and all points ON)
Output common terminal arrangement16 points/common (1-wire, FCN connector type)
Output isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP1XB
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current50 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part: One-touch connector for communication (sold separately) Module power supply part: One-touch connector for power supply and FG (sold separately) I/O power supply part, I/O part: 40-pin connector (sold separately)
External interface: Applicable connectorA6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110
External dimensions: Height115 mm
External dimensions: Width41 mm
External dimensions: Depth63.5 mm
Weight0.16 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
