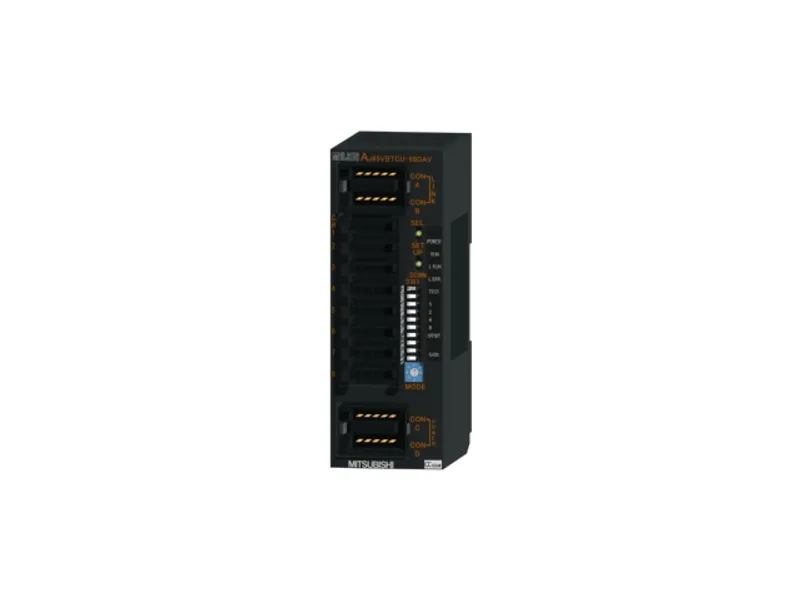

AJ65VBTCU-68DAV Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65VBTCU-68DAV (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65VBTCU-68DAV now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65VBTCU-68DAV, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65VBTCU-68DAV be shipped?
AJ65VBTCU-68DAV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65VBTCU-68DAV in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65VBTCU-68DAV and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65VBTCU-68DAV, subject to availability and destination.
The Mitsubishi Electric AJ65VBTCU-68DAV is a remote I/O in the MELSEC network modules. 8 channels, input (resolution): 0...4000, -4000...4000, output: -10...10 V DC, conversion speed: 1ms/channel, one-touch connector type, number of occupied stations: 3 stations. Mitsubishi Electric has discontinued it (2004/07 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | Analog I/O |
| Subtype | Analog output |
| Sales status | 2004/07 Discontinued (Mitsubishi Electric) |
| Outline | 8 channels, input (resolution): 0...4000, -4000...4000, output: -10...10 V DC, conversion speed: 1ms/channel, one-touch connector type, number of occupied stations: 3 stations |
Specifications
| Number of analog output points | 8 points (8 channels) |
| Digital input | -4096...+4095 |
| Analog output: Voltage | -10...+10 V DC (external load resistance 2 kΩ...1 MΩ) |
| I/O characteristics, resolution: Output range | Digital input value (maximum resolution) |
| I/O characteristics, resolution: Voltage output: 0...5 V | 0...4000 (1.25 mV) |
| I/O characteristics, resolution: Voltage output: 1...5 V | 0...4000 (1 mV) |
| I/O characteristics, resolution: Voltage output: -10...10 V | -4000...4000 (2.5 mV) |
| I/O characteristics, resolution: Voltage output: User range setting 1 (-10...10 V) | -4000...4000 (2.5 mV) |
| I/O characteristics, resolution: Voltage output: User range setting 2 (0...5 V) | 0...4000 (1 mV) |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC | ±0.2 % |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC | ±0.3 % |
| D/A conversion speed | 1 ms/channel |
| Absolute maximum output: Voltage | ±12 V |
| Output short protection | Protected |
| Isolation method | Between communication system terminals and analog outputs: Photocoupler Between power supply system terminals and analog outputs: Transformer Between channels: Non-isolation |
| Dielectric withstand voltage | Between all power supply and communication system terminals and all analog output terminals: 500 V AC for 1 minute |
| Protection degree | IP1XB |
| Station type | Remote device station (Ver. 1 remote device station or Ver. 2 remote device station) |
| Number of occupied stations | 3 stations |
| Module power supply: Voltage | 24 V DC (20.4...26.4 V DC, ripple ratio: within 5 %) |
| Module power supply: Current | 0.15 A |
| Module power supply: Inrush current | 4.3 A, 1.2 ms or less |
| External interface | Communication part: One-touch connector for communication (sold separately) Module power supply part: One-touch connector for power supply and FG (sold separately) I/O part: One-touch connector for I/O (sold separately) |
| Communication cable | Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110 |
| External dimensions: Height | 115 mm |
| External dimensions: Width | 41 mm |
| External dimensions: Depth | 67 mm |
| Weight | 0.16 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 10...57 Hz, Amplitude: 0.075 mm Frequency: 57...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 10...57 Hz, Amplitude: 0.035 mm Frequency: 57...150 Hz, Acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| type AJ65VBTCU-68DAV Digital-Analog Converter Module User's Manual (Hardware) (IB-0800201E-B) | PDF · 0.34MB |
| Digital-Analog Converter Module type AJ65VBTCU-68DAV User's Manual (SH-080182-B) | PDF · 0.78MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestAJ65VBTCU-68ADI Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65VBTCU-68ADIN Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65VBTCU-68ADV Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65VBTCU-68ADVN Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65VBTCU-68DAVN Mitsubishi MELSEC network modules Remote I/O

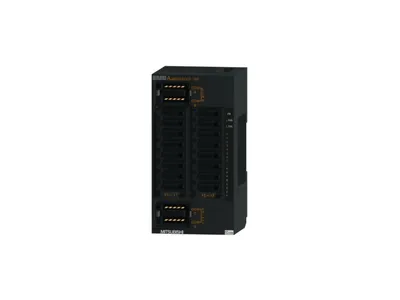

Available on requestAJ65VBTCU2-16T Mitsubishi MELSEC network modules Remote I/O

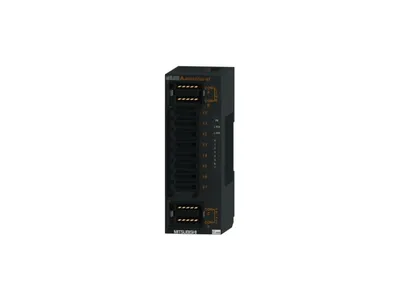

Available on requestAJ65VBTCU2-8T Mitsubishi MELSEC network modules Remote I/O
