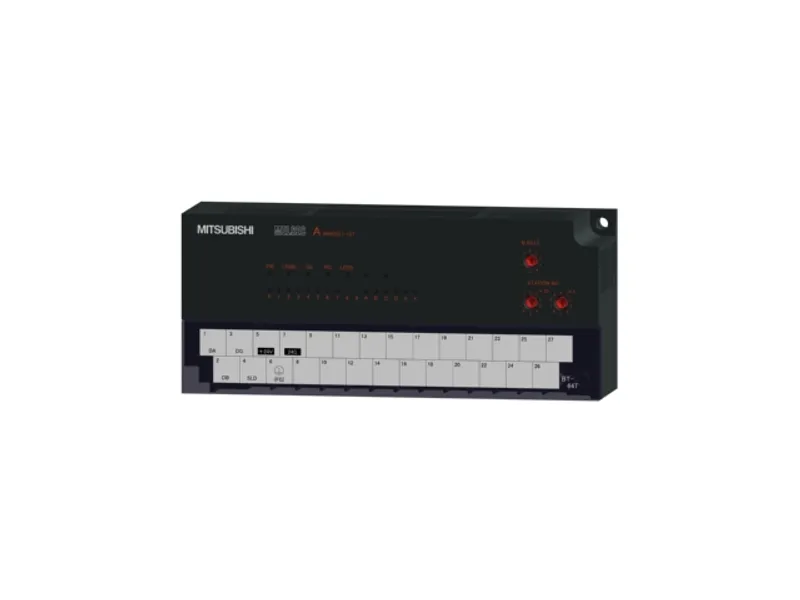

AJ65BTB1-16T Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65BTB1-16T · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65BTB1-16T (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AJ65BTB1-16T now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65BTB1-16T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65BTB1-16T be shipped?

AJ65BTB1-16T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65BTB1-16T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65BTB1-16T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65BTB1-16T, subject to availability and destination.

The Mitsubishi Electric AJ65BTB1-16T is a remote I/O in the MELSEC network modules. Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 2 ms, 8 points/common, sink type, 1-wire 2-piece terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output
Sales status	2021/09 Discontinued (Mitsubishi Electric)
Outline	Transistor output: 16 points, 12/24 V DC, 0.5 A/point, 4 A/common, response time: 2 ms, 8 points/common, sink type, 1-wire 2-piece terminal block type, number of occupied stations: 1 station

Output specifications

Output type	Transistor output (sink type)
Number of output points	16 points
Rated load voltage	12/24 V DC (ripple ratio: within 5 %)
Operating load voltage range	10.2...28.8 V DC
Maximum load current	0.5 A/point, 4 A/common (45 ˚C), 2.8 A/common (55 ˚C)
Maximum inrush current	4 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.9 V DC or less (TYP.) 0.5 A, 1.5 V DC or less (MAX.) 0.5 A
Output response time: OFF to ON	2 ms or less
Output response time: ON to OFF	2 ms or less (resistive load)
Surge suppressor	Zener diode
External power supply for output part: Voltage	10.2...28.8 V DC (ripple ratio: within 5 %)
External power supply for output part: Current	100 mA or less (TYP. 24 V DC/common), excluding external load current
Output common terminal arrangement	8 points/common (1-wire, terminal block type)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 15.6...28.8 V DC)
Module power supply: Current	80 mA or less (at TYP. 24 V DC)
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3.5 screw) I/O power supply part, I/O part: 27-point two-piece terminal block (M3.5 screw)
External dimensions: Height	65 mm
External dimensions: Width	151.9 mm
External dimensions: Depth	46 mm
Weight	0.34 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link System Remote I/O Module User's Manual (IB-66728-H)	PDF · 5.72MB
AJ65BTB1-16T CC-Link System Output Module User's Manual (IB-68720)	PDF · 1.30MB
