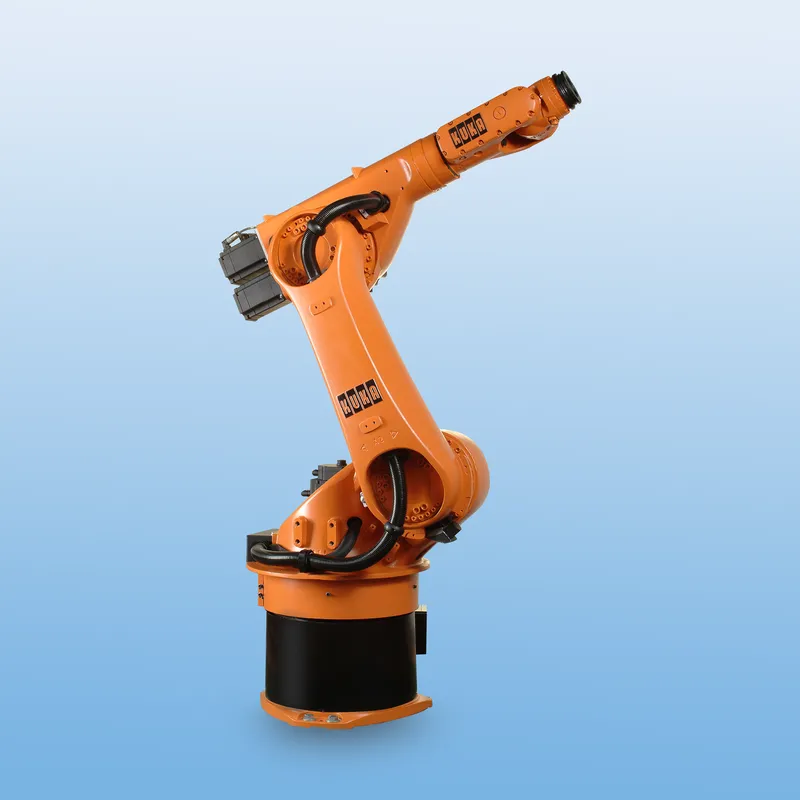

Kuka U704307
- MPN
- U704307
- Category
- Medium payload class
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Kuka U704307?
Control cable (CTR): 23x 1.0 mm² + 2x 1.0 mm²
Specifications
Specifications
| Maximum payload | 30 kg |
| Rated payload | 30 kg |
| Maximum reach | 2033 mm |
| Mounting position | Floor |
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 10 °C to 55 °C (283 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Prot. rating, in-line wrist (IEC 60529) | IP65 |
| A1 | 140 °/s |
| A2 | 126 °/s |
| A3 | 140 °/s |
| A4 | 260 °/s |
| A5 | 245 °/s |
| A6 | 322 °/s |
U704307: frequently asked questions
When can U704307 be shipped?
U704307 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U704307 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U704307 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U704307, subject to availability and destination.
