Kuka U698703

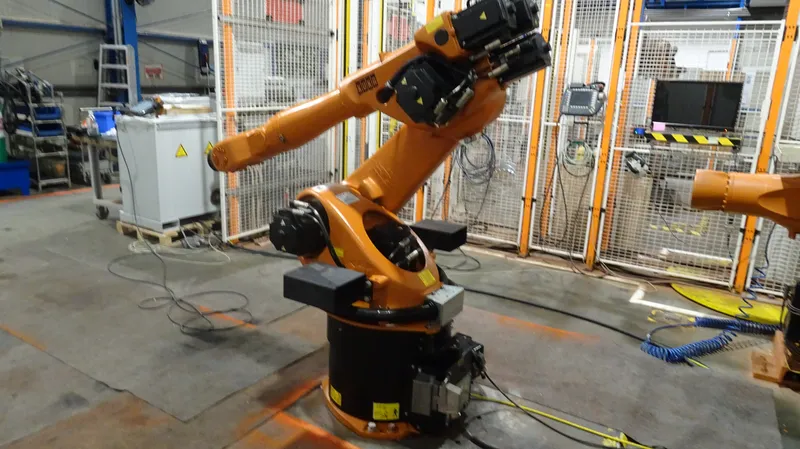

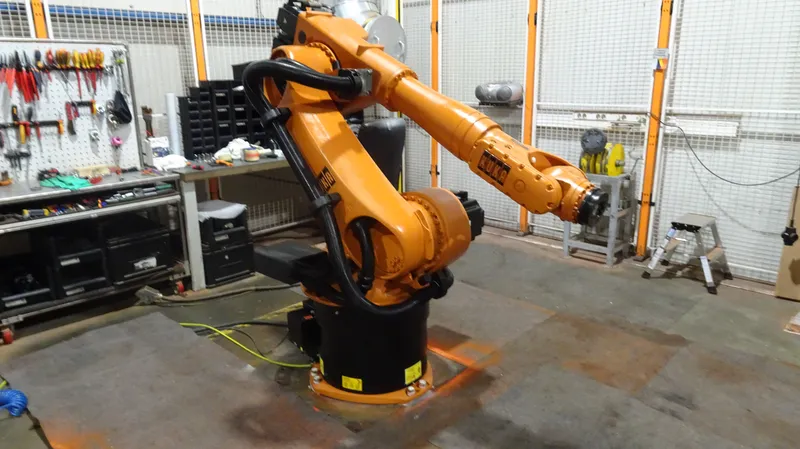

KR 60 L30-3 incl. KR C4 EU

MPN: U698703
Category: Medium payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U698703?

Kuka KR 60 L30-3 incl. KR C4 EU, manufacturer part number U698703. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	30 kg
Rated payload	30 kg
Maximum reach	2429 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.06 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	128 °/s
A2	102 °/s
A3	128 °/s
A4	260 °/s
A5	245 °/s
A6	322 °/s
Height	1062.5
Depth	596 mm
Maximum number of servo axes	9
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 25 A slow-blowing, max. 3x 32 A slow-blowing, see rating plate

U698703: frequently asked questions

When can U698703 be shipped?

U698703 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U698703 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U698703 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U698703, subject to availability and destination.
