Kuka U4561115
LBR iisy 11 R1300 incl. KR C5 micro
- MPN
- U4561115
- Category
- Cobots
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Kuka U4561115?

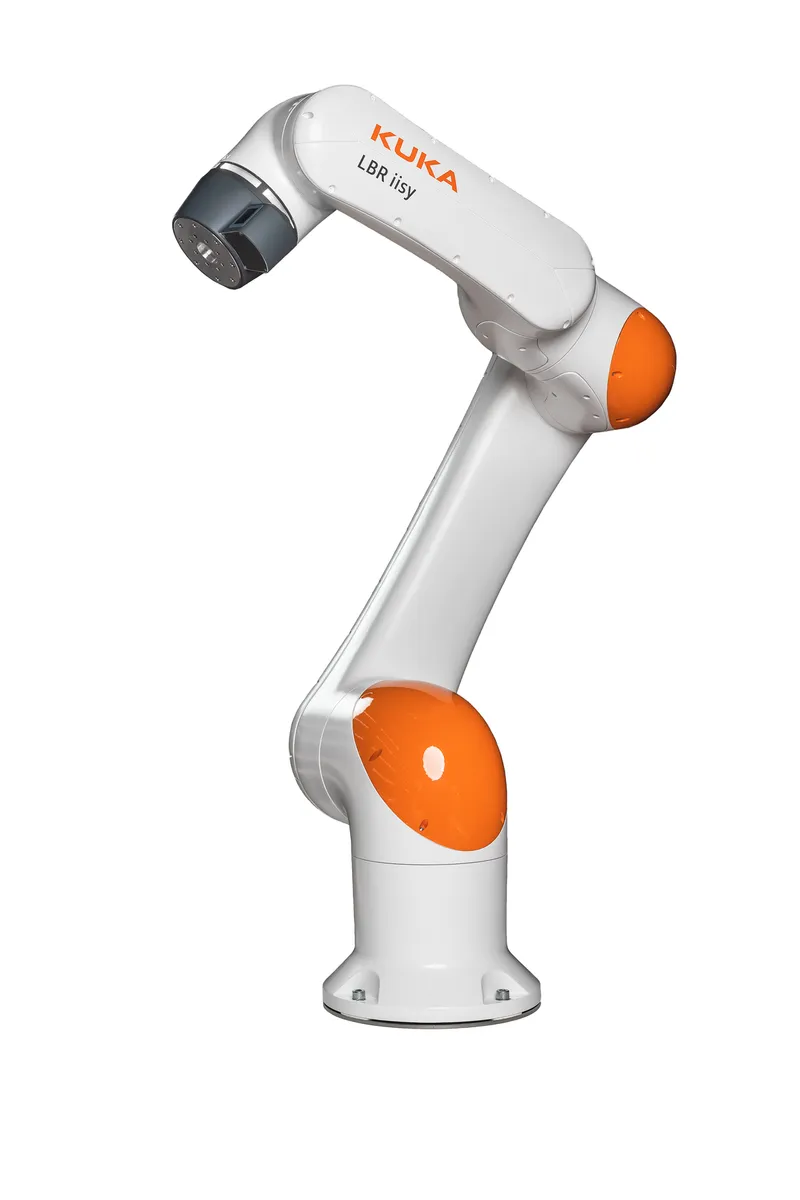

Kuka LBR iisy 11 R1300 incl. KR C5 micro, manufacturer part number U4561115. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 11.72 kg |
| Rated payload | 11 kg |
| Maximum reach | 1300 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 45 °C (273 K to 318 K) |
| Ambient temperature during stor./transp. | -25 °C to 70 °C (248 K to 343 K) |
| Protection rating (IEC 60529) | IP20 |
| Prot. rating, in-line wrist (IEC 60529) | IP54 |
| A1 | 200 °/s |
| A2 | 200 °/s |
| A3 | 200 °/s |
| A4 | 230 °/s |
| A5 | 260 °/s |
| A6 | 430 °/s |
| Height | 134 |
| Depth | 392 mm |
| Maximum number of servo axes | 6 |
| Rated supply voltage | AC 1x 200 V - 240 V |
| Mains frequency | 50...60 Hz |
| Mains side fusing | 1x 16 A slow-blowing, type C |
| Rated connected load | 1.3 kVA |
U4561115: frequently asked questions
When can U4561115 be shipped?
U4561115 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U4561115 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U4561115 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4561115, subject to availability and destination.
