Kuka

Kuka U4481812

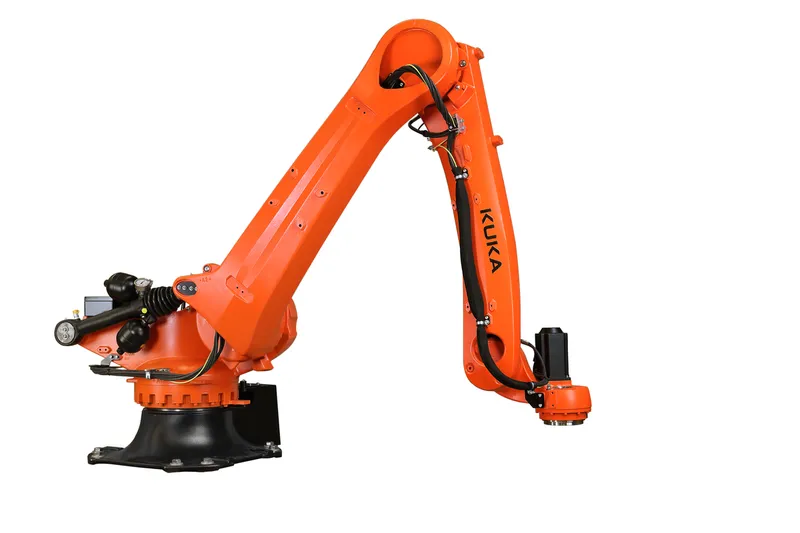

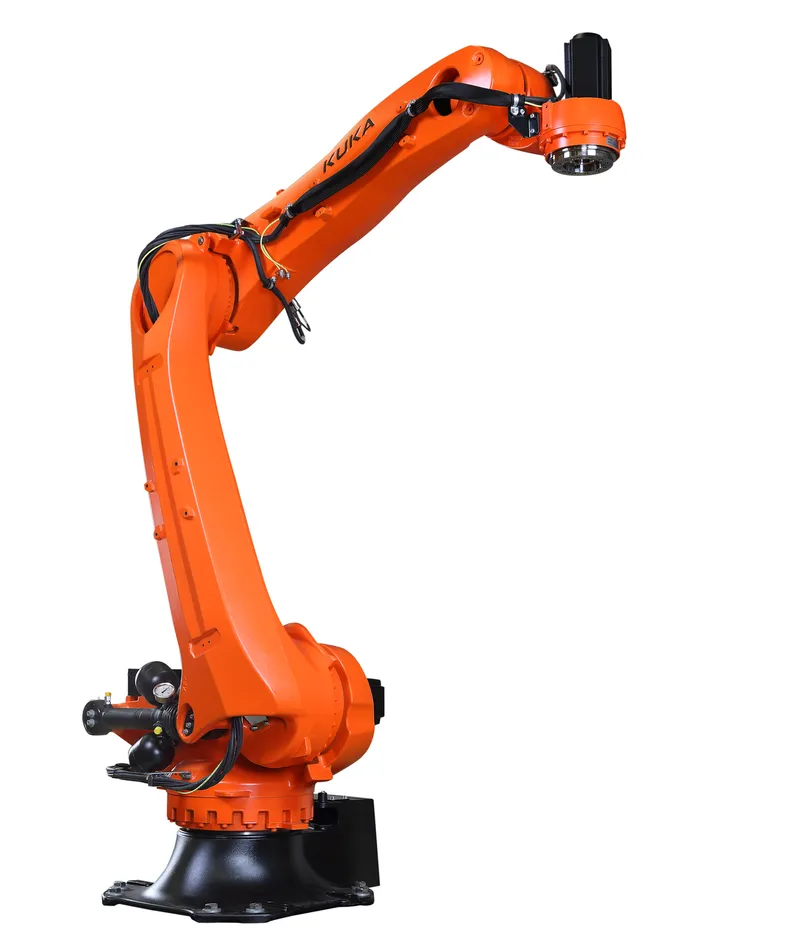

KR 240 R3200-2 PA incl. KR C5

MPN: U4481812
Category: High payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4481812?

Control cable (CTR): 23x 1.0 mm² + 2x 1.0 mm²

Specifications

Maximum payload	292 kg
Rated payload	240 kg
Maximum reach	3195 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.07 mm
Number of axes	5
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	137 °/s
A2	111 °/s
A3	119 °/s
A5	225 °/s
A6	321 °/s
Depth	600 mm
Maximum number of servo axes	12
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
Rated connected load	2 kVA

U4481812: frequently asked questions

When can U4481812 be shipped?

U4481812 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U4481812 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U4481812 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4481812, subject to availability and destination.
