Kuka U1310813

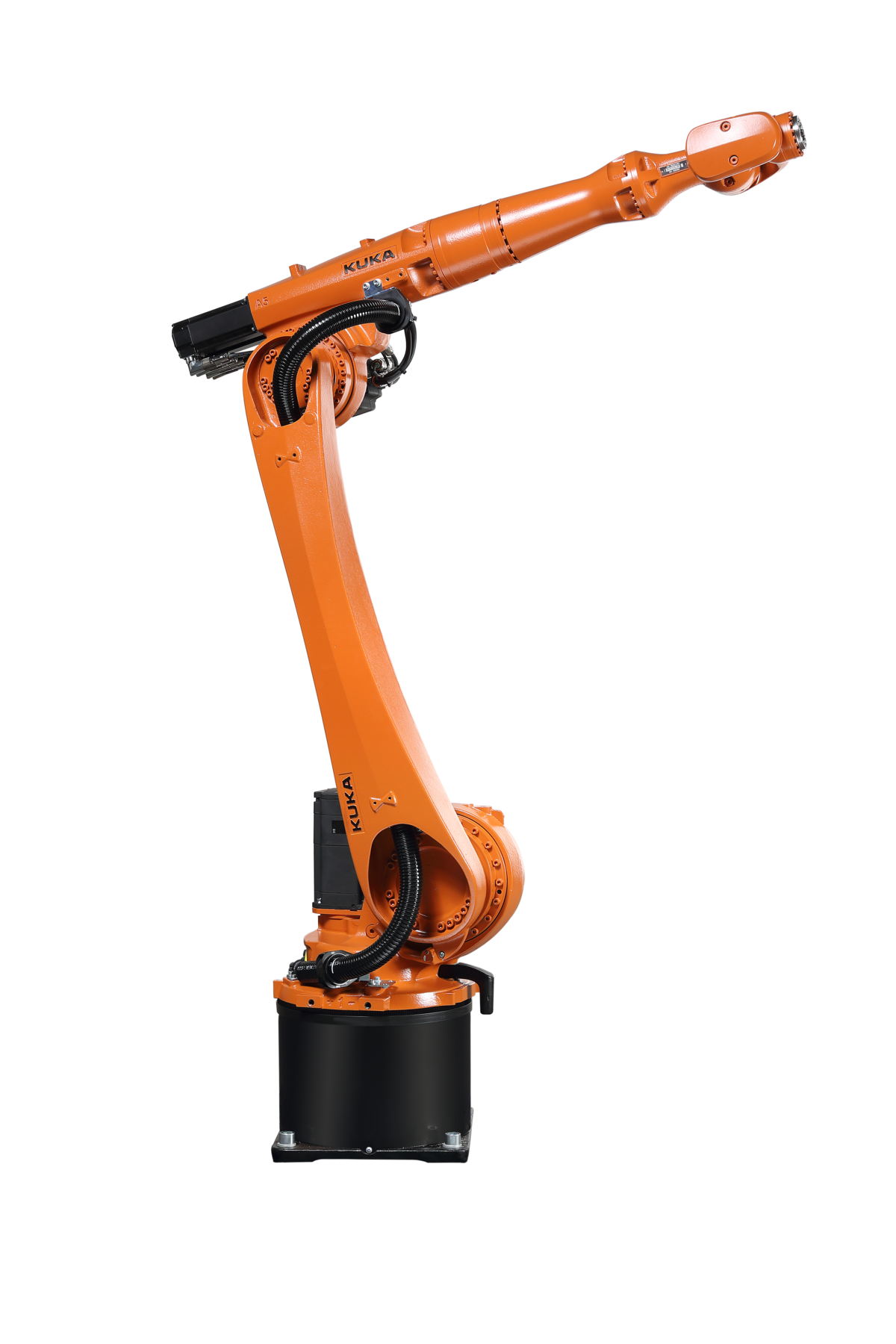

KR 12 R1810-2 incl. KR C5

MPN: U1310813
Category: Low payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Kuka parts? We buy surplus →

What is the Kuka U1310813?

Control cable (CTR): 25x 0.25 mm²

Specifications

Maximum payload	14.5 kg
Rated payload	12 kg
Maximum reach	1813 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.04 mm
Number of axes	6
Ambient temperature during operation	5 °C to 55 °C (278 K to 328 K)
Ambient temperature during stor./transp.	-20 °C to 60 °C (253 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	200 °/s
A2	175 °/s
A3	190 °/s
A4	430 °/s
A5	430 °/s
A6	630 °/s
Depth	600 mm
Maximum number of servo axes	12
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
Rated connected load	2 kVA

U1310813: frequently asked questions

When can U1310813 be shipped?

U1310813 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U1310813 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U1310813 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U1310813, subject to availability and destination.
