Kuka U1310347

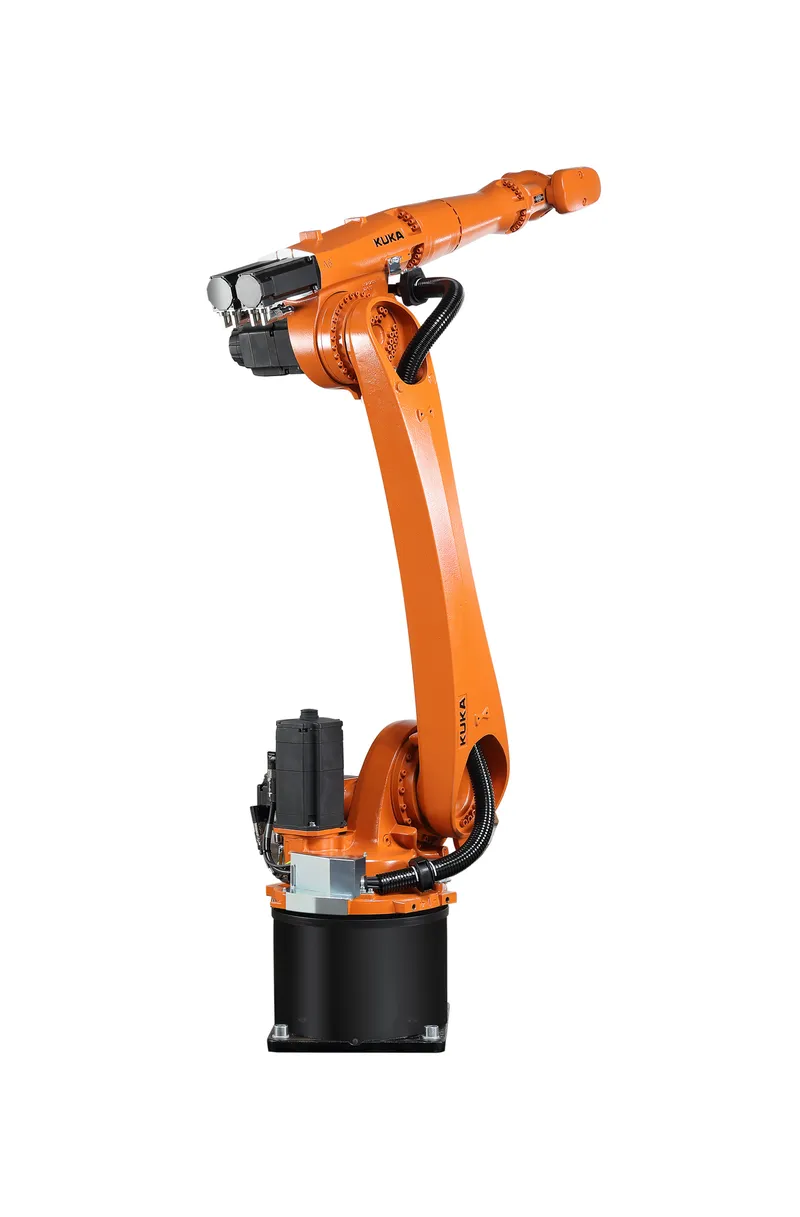

KR 16 R1610-2 incl. KR C5

MPN: U1310347
Category: Low payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U1310347?

Control cable (CTR): 25x 0.25 mm²

Specifications

Maximum payload	20 kg
Rated payload	16 kg
Maximum reach	1612 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.04 mm
Number of axes	6
Ambient temperature during operation	5 °C to 55 °C (278 K to 328 K)
Ambient temperature during stor./transp.	-20 °C to 60 °C (253 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	200 °/s
A2	175 °/s
A3	190 °/s
A4	430 °/s
A5	430 °/s
A6	630 °/s
Depth	600 mm
Maximum number of servo axes	12
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
Rated connected load	2 kVA

U1310347: frequently asked questions

When can U1310347 be shipped?

U1310347 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U1310347 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U1310347 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U1310347, subject to availability and destination.
