Kuka 428996

MPN: 428996
Category: KR FORTEC-2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 428996?

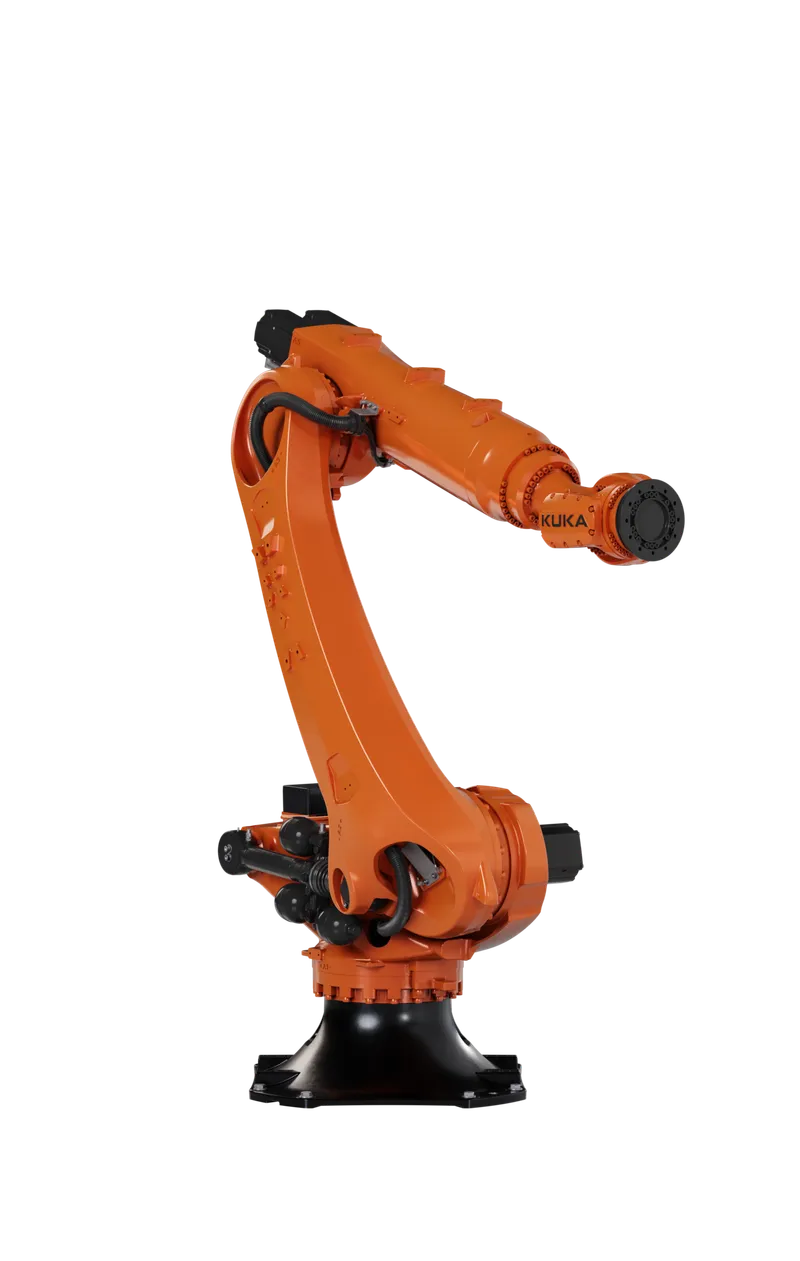

Kuka KR 420 R3100-2 F, manufacturer part number 428996. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	527 kg
Rated payload	420 kg
Maximum reach	3100 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP65 / IP67
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
A1	100 °/s
A2	80 °/s
A3	90 °/s
A4	90 °/s
A5	100 °/s
A6	160 °/s

428996: frequently asked questions

When can 428996 be shipped?

428996 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 428996 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 428996 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 428996, subject to availability and destination.
