Kuka 428998

MPN: 428998
Category: KR FORTEC-2 ultra PA

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 428998?

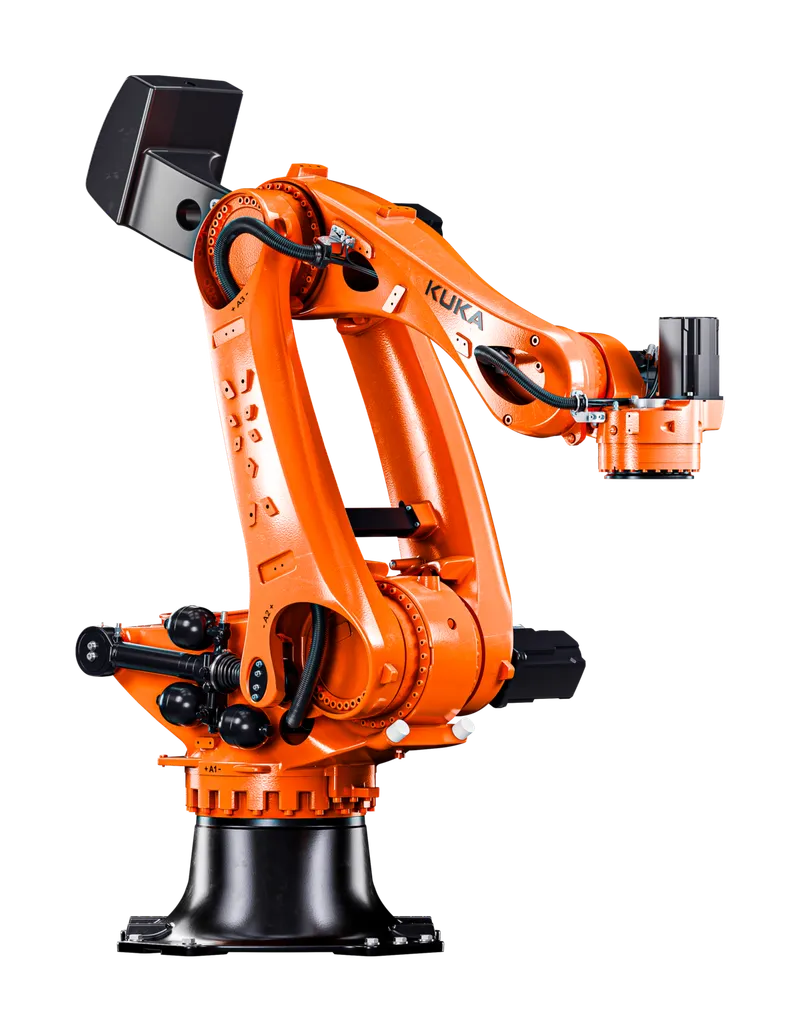

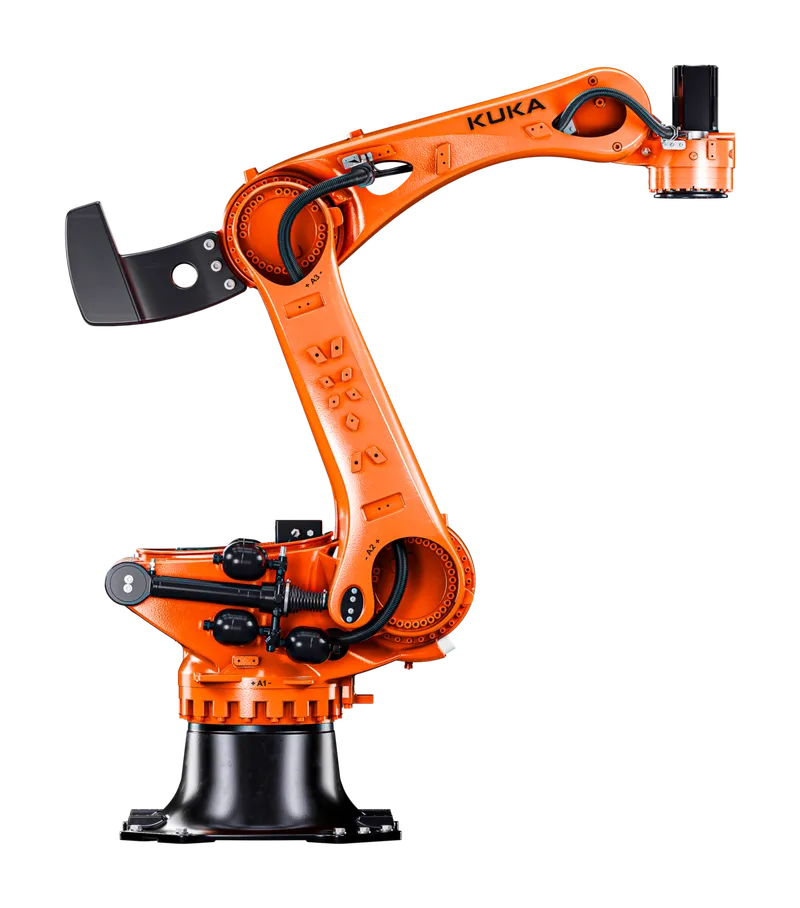

Kuka KR 800 R3200-2 PA, manufacturer part number 428998. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	946 kg
Rated payload	800 kg
Maximum reach	3200 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	5
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	80 °/s
A2	60 °/s
A3	60 °/s
A5	80 °/s
A6	195 °/s
