Kuka 428993
- MPN
- 428993
- Category
- KR FORTEC-2 ultra
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Kuka 428993?

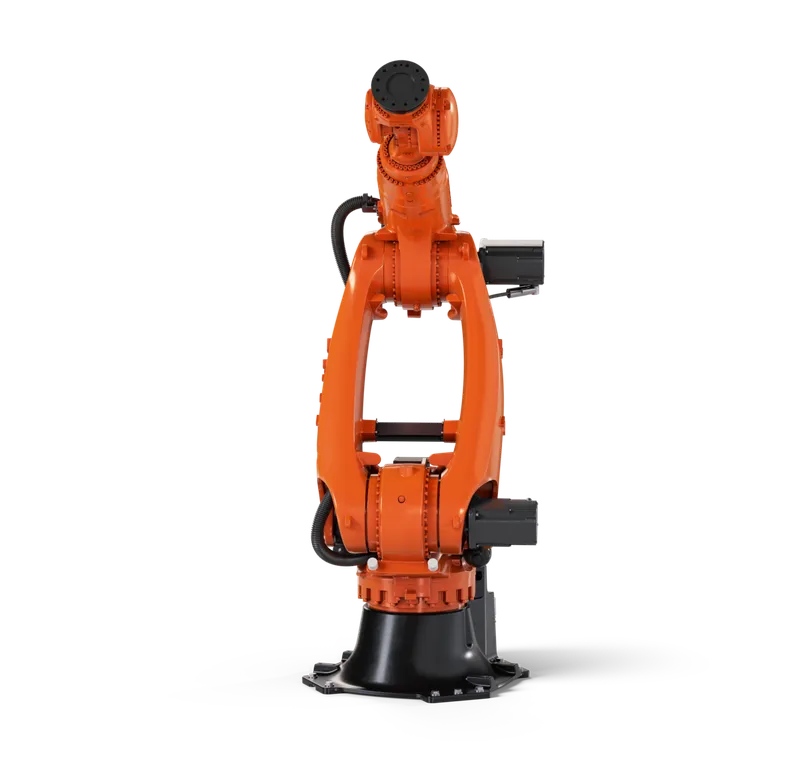

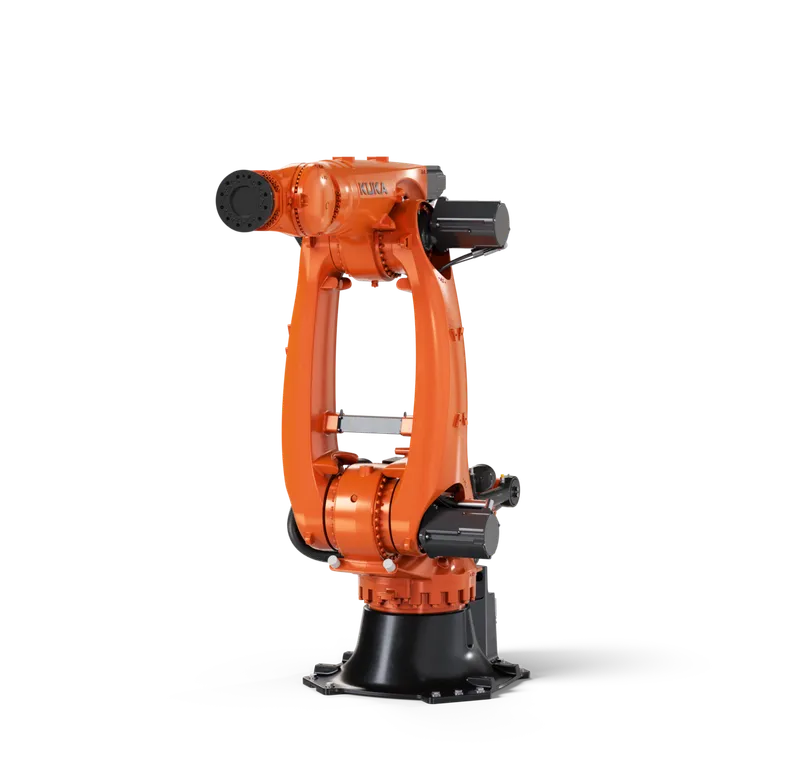

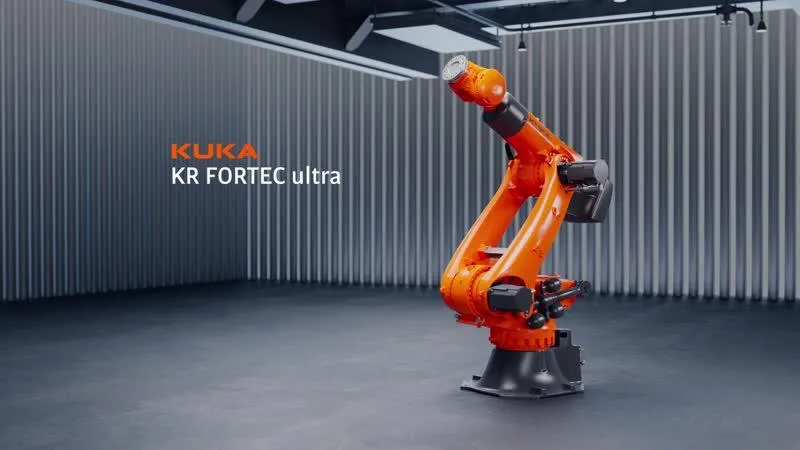

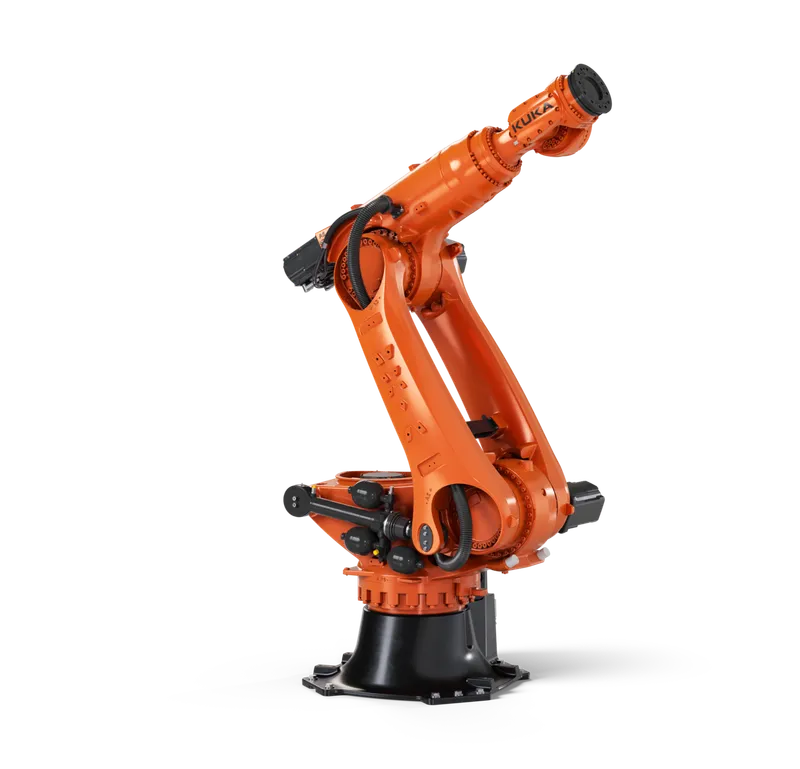

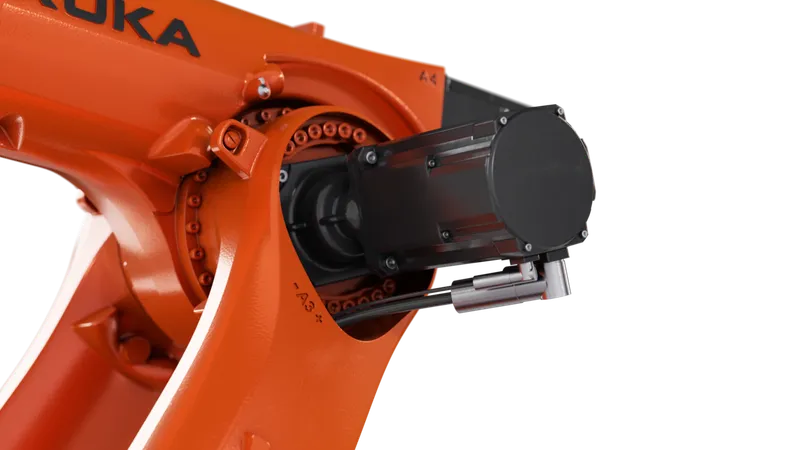

Kuka KR 480 R3400-2 F, manufacturer part number 428993. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 591 kg |
| Rated payload | 480 kg |
| Maximum reach | 3400 mm |
| Mounting position | Floor |
| Pose repeatability (ISO 9283) | 0.08 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -25 °C to 60 °C (248 K to 333 K) |
| Protection rating (IEC 60529) | IP65 / IP67 |
| Prot. rating, in-line wrist (IEC 60529) | IP65 / IP67 |
| A1 | 90 °/s |
| A2 | 80 °/s |
| A3 | 75 °/s |
| A4 | 90 °/s |
| A5 | 90 °/s |
| A6 | 140 °/s |
428993: frequently asked questions
When can 428993 be shipped?
428993 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 428993 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 428993 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 428993, subject to availability and destination.
