Kuka 408224

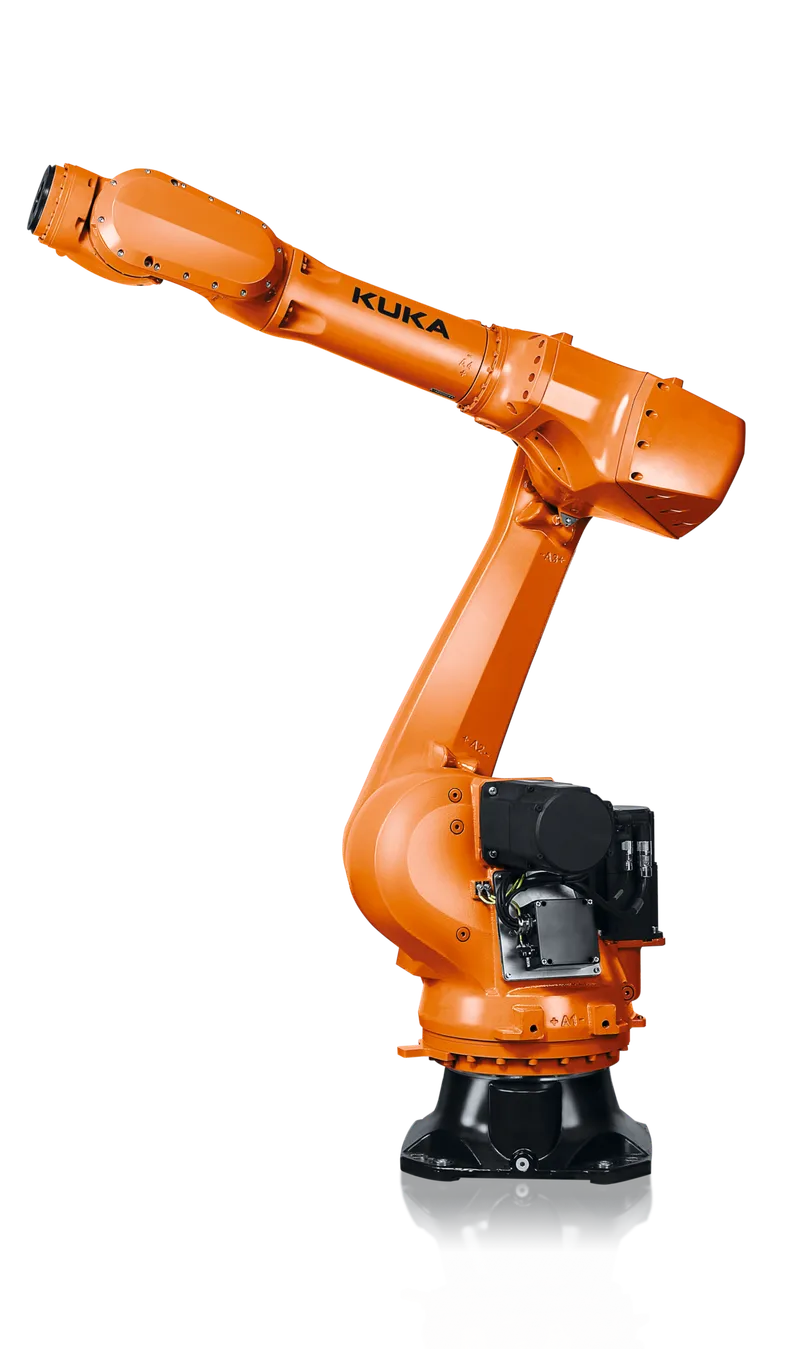

KR 30 R2100 CR lite

MPN: 408224
Category: KR IONTEC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 408224?

Kuka KR 30 R2100 CR lite, manufacturer part number 408224. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	37 kg
Rated payload	30 kg
Maximum reach	2101 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.05 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
Cleanroom class (ISO 14644-1)	Class 5 at 40% override, Class 5 at 80% override
A1	180 °/s
A2	165 °/s
A3	180 °/s
A4	250 °/s
A5	250 °/s
A6	360 °/s
