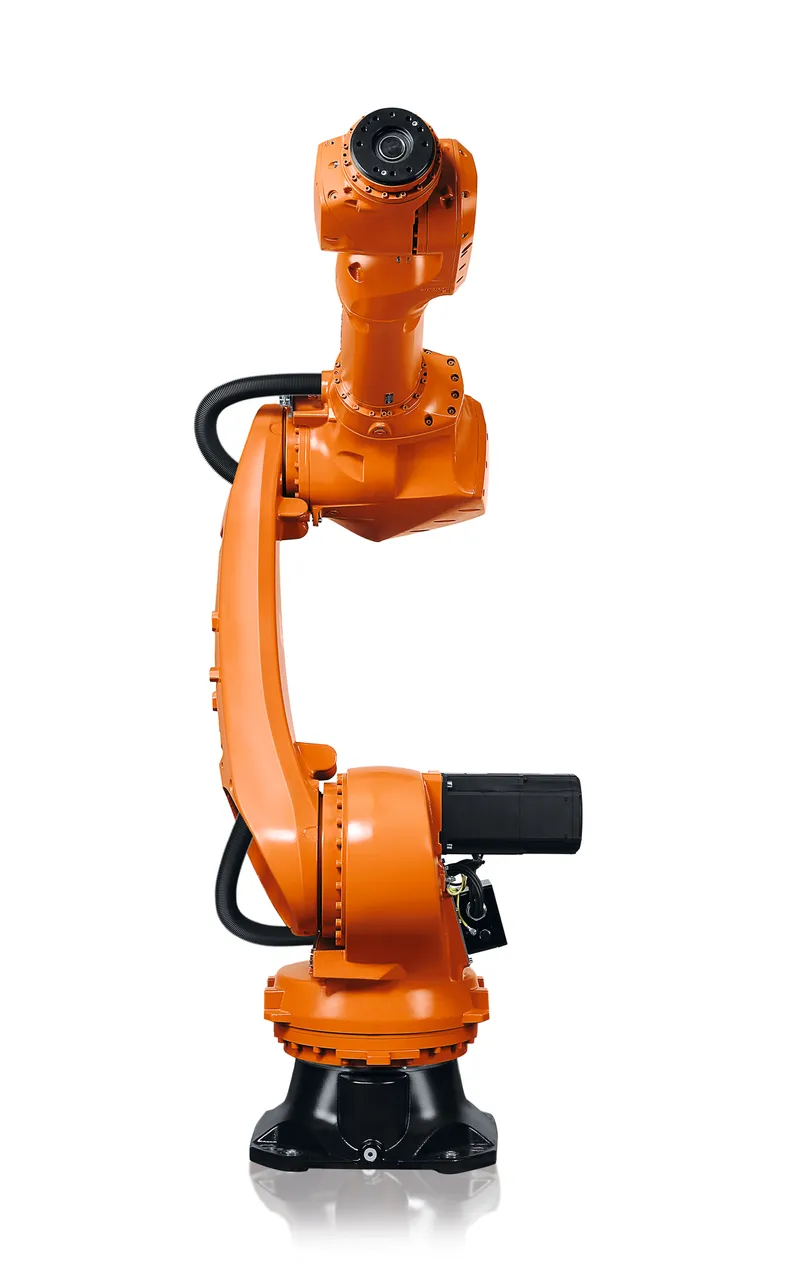

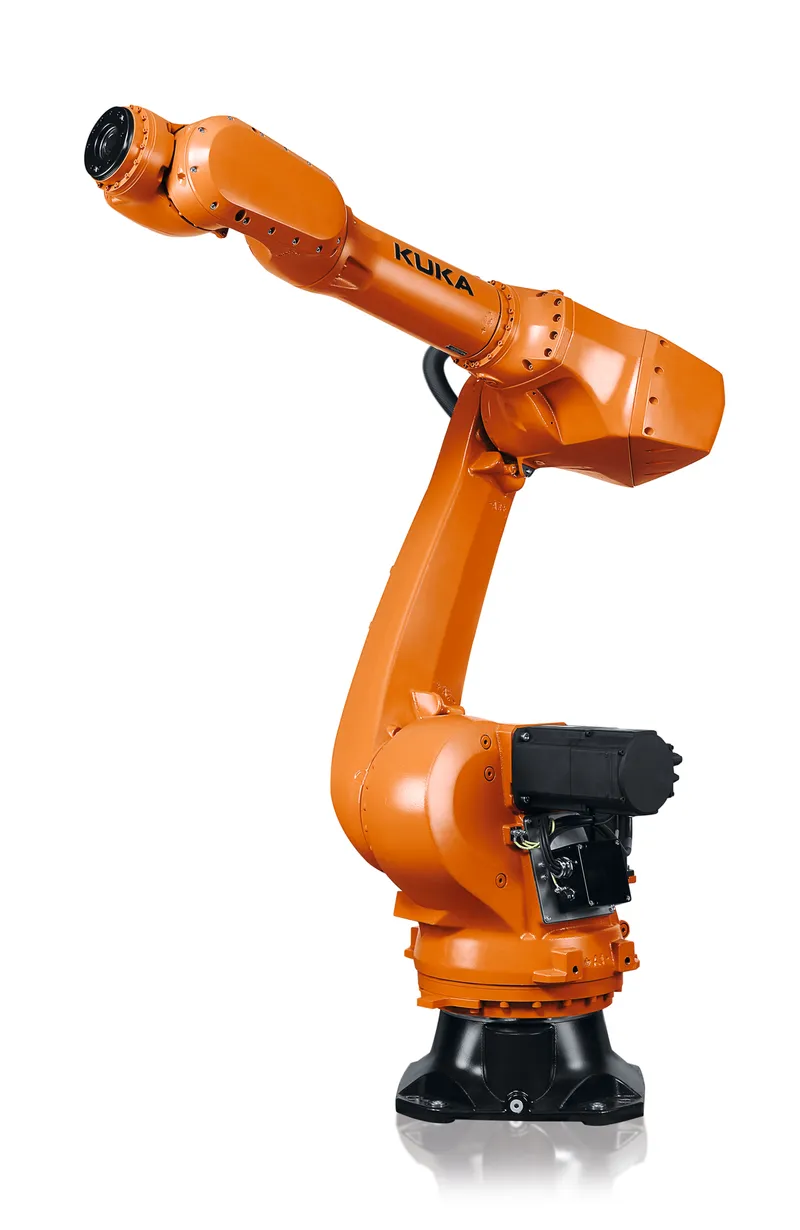

KR 50 R2500 CR lite

Name: KR 50 R2500 CR lite
Brand: Kuka
SKU: 408222

MPN: 408222 · Brand: Kuka

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	KR IONTEC
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0 kg

Shipping & availability

When can 408222 be shipped?

408222 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 408222 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 408222 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 408222, subject to availability and destination.

Specifications

Maximum payload	62 kg
Rated payload	50 kg
Maximum reach	2501 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.05 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
Cleanroom class (ISO 14644-1)	Class 5 at 40% override, Class 5 at 80% override
A1	175 °/s
A2	158 °/s
A3	175 °/s
A4	250 °/s
A5	250 °/s
A6	360 °/s
