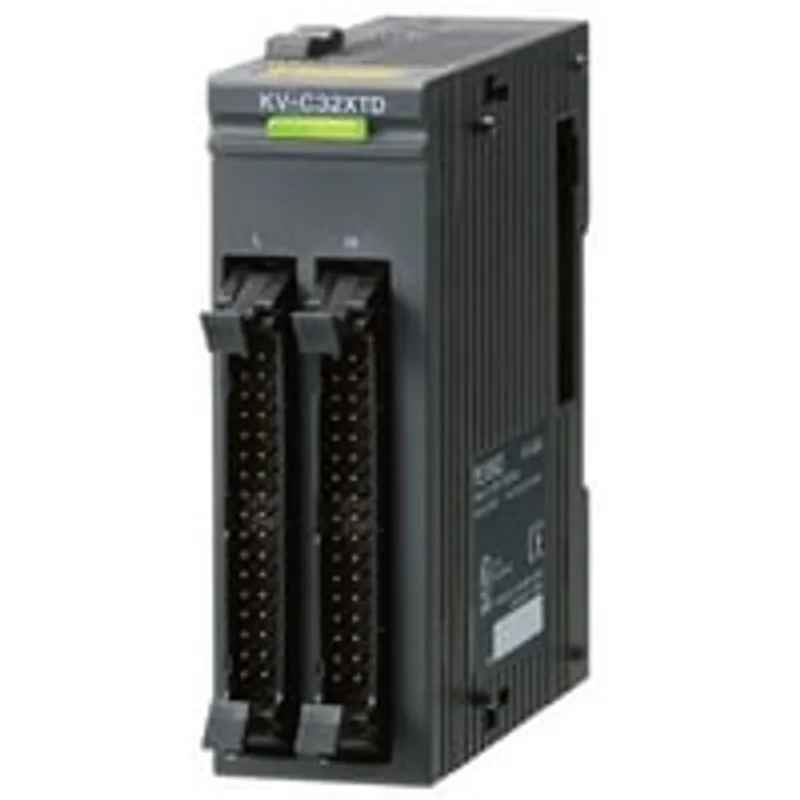

Keyence KV-C32XTD

32-point/32-point Connector MOSFET (Sink) with Overcurrent Protection.

MPN: KV-C32XTD
Category: Programmable Logic Controller

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence KV-C32XTD?

32-point/32-point Connector MOSFET (Sink) with Overcurrent Protection. KV-C32XTD. Series: Programmable Logic Controller. Series code: KV-X series

Specifications

Model Name	32-point/32-point Connector MOSFET (Sink) with Overcurrent Protection
Model Code	KV-C32XTD
Series Title	Programmable Logic Controller
Series Code	KV-X series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157158&dlModelId=PM_0842XTD&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/controls/plc-building-block-type/kv-x/downloads/?mode=cd&modelId=PM_0842XTD
Manuals URL	https://www.keyence.com/products/controls/plc-building-block-type/kv-x/downloads/?mode=ma&modelId=PM_0842XTD
Model	KV-C32XTD
Type	I/O unit
External connection method	Connector (MIL standard)*1
Input - Number of inputs	32 points
Input - Input mode	24 VDC mode*2
Input - Maximum input voltage	26.4 VDC
Input - Rated input voltage	24 VDC, 4.1 mA
Input - Minimum ON voltage	19 V
Input - Maximum OFF current	1.5 mA
Input - Maximum OFF voltage	-
Input - Common method	32 points/1 common (2 terminals)*3
Input - Input time constant	25 μs/300 μs*4/1 ms/10 ms
Input - Input impedance	5.6 kΩ
Output - Number of outputs	32 points
Output - Output mode	MOSFET (sink) (with overcurrent protection function)
Output - Rated load	30 VDC, 0.2 A
Output - Leakage current at OFF	100 μA or less
Output - Residual voltage at ON	0.5 VDC or less
Output - Common method	32 points/1 common (2 terminals)*3
Output - Operation time	OFF to ON:150 μs or less , ON to OFF: 300 μs or less
Internal current consumption	65 mA or less
Weight	Approx. 130 g
