Programmable Logic Controller Parts

Keyence

KV-HC3

I/O connector terminal block cable.

Keyence

KV-M1G

1 GB SD Memory Card for KV-5000/KV-3000/KV-1000.

Keyence

KV-M16G

SD memory card 16GB. . Series: Programmable Logic…

Keyence

XC-T40P

Common terminal block, Screw terminal, 40 poles.

Keyence

XC-T40E2

Conversion terminal block, European terminal, 40 poles.

Keyence

XC-T40E1

Conversion terminal block, European terminal, 40 poles.

Keyence

XC-T40B2

Conversion terminal block, Screw terminal, 40 poles.

Keyence

XC-T40B1

Conversion terminal block, Screw terminal, 40 poles.

Keyence

XC-T34E2

Conversion terminal block, European terminal, 34 poles.

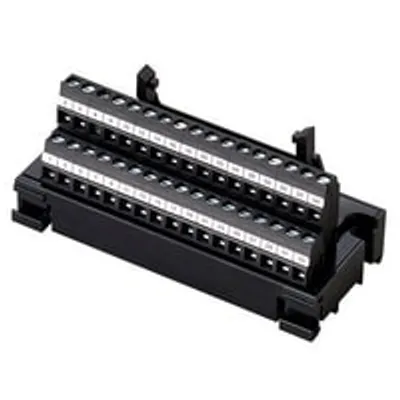

Keyence

XC-T34E1

Conversion terminal block, European terminal, 34 poles.

Keyence

XC-T34B2

Conversion terminal block, Screw terminal, 34 poles.

Keyence

XC-T34B1

Conversion terminal block, Screw terminal, 34 poles.

Keyence

XC-T26E

Conversion terminal block, European terminal, 26 poles.

Keyence

XC-T26B

Conversion terminal block, Screw terminal, 26 poles.

Keyence

XC-T20P

Common terminal block, Screw terminal, 20 poles.

Keyence

XC-T20E2

Conversion terminal block, European terminal, 20 poles.

Keyence

XC-T20E1

Conversion terminal block, European terminal, 20 poles.

Keyence

XC-T20B2

Conversion terminal block, Screw terminal, 20 poles.

Keyence

XC-T20B1

Conversion terminal block, Screw terminal, 20 poles.

Keyence

XC-H40D-05

Harness cable, MIL - loose wires, 40 poles, 5 m.

Keyence

XC-H40-05

Harness cable, MIL - MIL, 40 poles, 5 m.

Keyence

XC-H40-03

Harness cable, MIL - MIL, 40 poles, 3 m.

Keyence

XC-H40-01

Harness cable, MIL - MIL, 40 poles, 1 m.

Keyence

XC-H34D-05

Harness cable, MIL - loose wires, 34 poles, 5 m.

Compare Programmable Logic Controller

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Model	Rated current	Screw torque	Applicable wire diameter
KV-HC3	KV-HC3	KV-HC3	—	—	—
KV-M1G	KV-M1G	KV-M1G	—	—	—
KV-M16G	KV-M16G	KV-M16G	—	—	—
XC-T40P	XC-T40P	XC-T40P	10 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T40E2	XC-T40E2	XC-T40E2	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T40E1	XC-T40E1	XC-T40E1	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T40B2	XC-T40B2	XC-T40B2	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T40B1	XC-T40B1	XC-T40B1	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T34E2	XC-T34E2	XC-T34E2	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T34E1	XC-T34E1	XC-T34E1	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T34B2	XC-T34B2	XC-T34B2	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T34B1	XC-T34B1	XC-T34B1	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T26E	XC-T26E	XC-T26E	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T26B	XC-T26B	XC-T26B	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T20P	XC-T20P	XC-T20P	10 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T20E2	XC-T20E2	XC-T20E2	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T20E1	XC-T20E1	XC-T20E1	1 A/pin	0.5 N·m (max.)	AWG24 to 12
XC-T20B2	XC-T20B2	XC-T20B2	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-T20B1	XC-T20B1	XC-T20B1	1 A/pin	0.8 N·m (max.)	AWG22 to 16
XC-H40D-05	XC-H40D-05	XC-H40D-05	—	—	—
XC-H40-05	XC-H40-05	XC-H40-05	—	—	—
XC-H40-03	XC-H40-03	XC-H40-03	—	—	—
XC-H40-01	XC-H40-01	XC-H40-01	—	—	—
XC-H34D-05	XC-H34D-05	XC-H34D-05	—	—	—

Common to all listed parts

Series Title	Programmable Logic Controller
Series Code	KV-8000 series
