Infineon T430N18TOF
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can T430N18TOF be shipped?
T430N18TOF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T430N18TOF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T430N18TOF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T430N18TOF, subject to availability and destination.

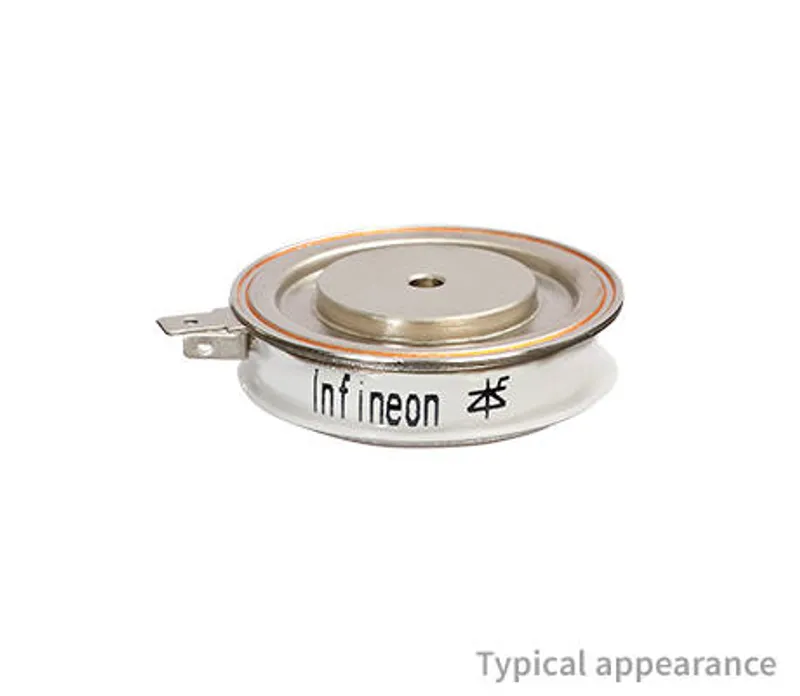

Infineon T430N18TOF: Infineon T430N18TOF in Disc dia 42mm height 14mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 4 to 8 |
| Configuration | Electrical Triggered Phase Control Thyristor |
| Housing | Disc dia 42mm height 14mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 433/85 |
| ITAVM | 433 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 4600 |
| ITSM | 4600 A |
| rT [mΩ] (@Tvj max) max | 0.9 |
| RthJC [K/kW] (@180° el sin) max | 51 |
| tq [µs] | 250 |
| Tvj [°C] max | 125 |
| VDRM / VRRM [V] | 1800 |
| VDRM/ VRRM (V) | 1800 V |
| VT/IT [V/kA] (@Tvj max) | 2.07/1.2 |
| VT0 [V] (@Tvj max) max | 0.85 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 106 |
Ordering codes (OPN)
| T430N18TOFXPSA1 | active and preferred, package BG-T4214K0-1, RoHS |
