Infineon T4771N22TOF-PR – 2200 V, electrical triggered phase control thyristor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thyristor & Diode Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can T4771N22TOF-PR be shipped?
T4771N22TOF-PR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up T4771N22TOF-PR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for T4771N22TOF-PR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for T4771N22TOF-PR, subject to availability and destination.
Infineon T4771N22TOF-PR: 2200 V, electrical triggered phase control thyristor in Disc dia 150mm height 26mm / Ceramic. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Clamping force [kn] range | 63 to 91 |
| Configuration | Electrical Triggered Phase Control Thyristor |
| Housing | Disc dia 150mm height 26mm / Ceramic |
| ITAVM/TC [A/°C] (@180° el sin) | 4340/85 |
| ITAVM | 4340 (180 ° el sin) |
| ITSM [A] (@10ms, Tvj max) | 91000 |
| ITSM | 91000 A |
| rT [mΩ] (@Tvj max) max | 0.107 |
| RthJC [K/kW] (@180° el sin) max | 4.8 |
| tq [µs] | 250 |
| Tvj [°C] max | 125 |
| VDRM / VRRM [V] | 2200 |
| VDRM/ VRRM (V) | 2200 V |
| VT/IT [V/kA] (@Tvj max) | 1.20/4.0 |
| VT0 [V] (@Tvj max) max | 0.77 |
| ∫I2dt [A²s · 103] (@10ms, Tvj max) | 41400 |
Ordering codes (OPN)
| T4771N22TOFXPSA1 | active and preferred |
More Infineon parts

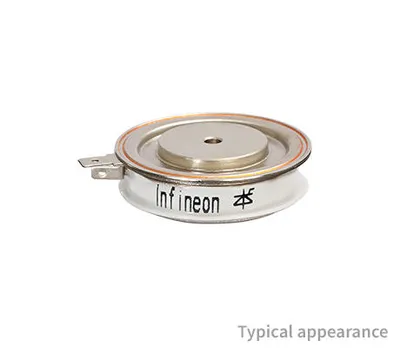

Available on requestT458N phase-control thyristor disc, up to 3000 VAvailable on requestT459N phase-control thyristor disc, up to 3000 V

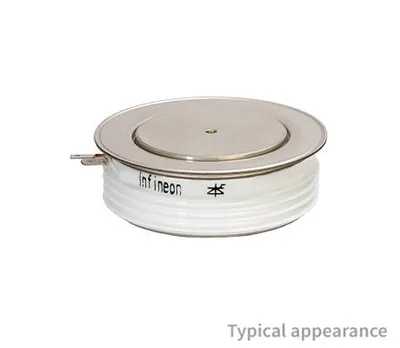

Available on requestT508N phase-control thyristor disc, up to 2000 V, 50/14 mm press-packAvailable on requestT509N phase-control thyristor disc, up to 2000 V, 57/26 mm press-packAvailable on requestT551N phase-control thyristor disc, up to 7000 V
