Infineon T430N14TOF

Thyristor & Diode Module

MPN: T430N14TOF
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon T430N14TOF?

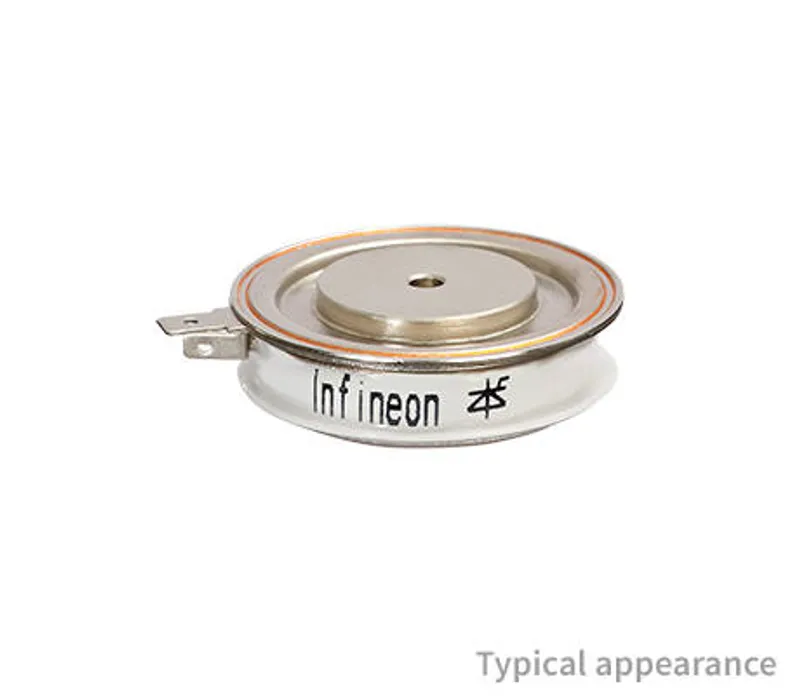

Infineon T430N14TOF: Infineon T430N14TOF in Disc dia 42mm height 14mm / Ceramic housing. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Clamping force [kn] range	4 to 8
Configuration	Electrical Triggered Phase Control Thyristor
Housing	Disc dia 42mm height 14mm / Ceramic
ITAVM/TC [A/°C] (@180° el sin)	433/85
ITAVM	433 (180 ° el sin)
ITSM [A] (@10ms, Tvj max)	4600
ITSM	4600 A
rT [mΩ] (@Tvj max) max	0.9
RthJC [K/kW] (@180° el sin) max	51
tq [µs]	250
Tvj [°C] max	125
VDRM / VRRM [V]	1400
VDRM/ VRRM (V)	1400 V
VT/IT [V/kA] (@Tvj max)	2.07/1.2
VT0 [V] (@Tvj max) max	0.85
∫I2dt [A²s · 103] (@10ms, Tvj max)	106

Ordering codes (OPN)

T430N14TOFXPSA1

active and preferred, package BG-T4214K0-1, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet T430N14TOFPDF
