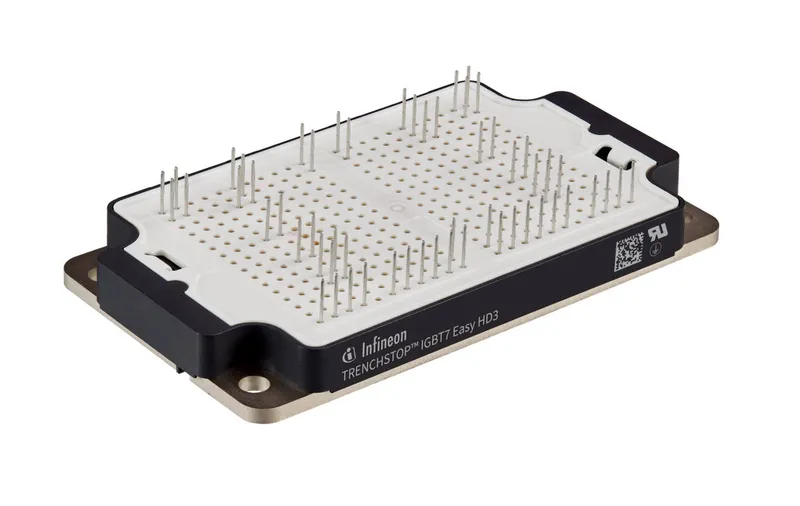

Infineon FC560R12D3H7F-B78 – 1200 V, 560 A in 3-level boost topology IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FC560R12D3H7F-B78 be shipped?
FC560R12D3H7F-B78 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FC560R12D3H7F-B78 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FC560R12D3H7F-B78 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC560R12D3H7F-B78, subject to availability and destination.
Infineon FC560R12D3H7F-B78: 1200 V, 560 A in 3-level boost topology IGBT module in EasyPACK™ HD3 housing (IGBT7 - H7). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Configuration | Booster |
| Dimensions (length) | 112.2 mm |
| Dimensions (width) | 65.2 mm |
| Features | High current pin |
| Housing | EasyPACK™ HD3 |
| IC(nom) / IF(nom) | 280 A |
| IC max | 280 A |
| Qualification | Industrial |
| Technology | IGBT7 - H7 |
| VCE(sat) (Tvj=25°C typ) | 1.22 V |
| VCES / VRRM | 1200 V |
| VF (Tvj=25°C typ) | 2.5 V |
| Voltage Class max | 1200 V |
Ordering codes (OPN)
| FC560R12D3H7FB78BPSA1 | active and preferred, package AG-EASYHD, RoHS |
