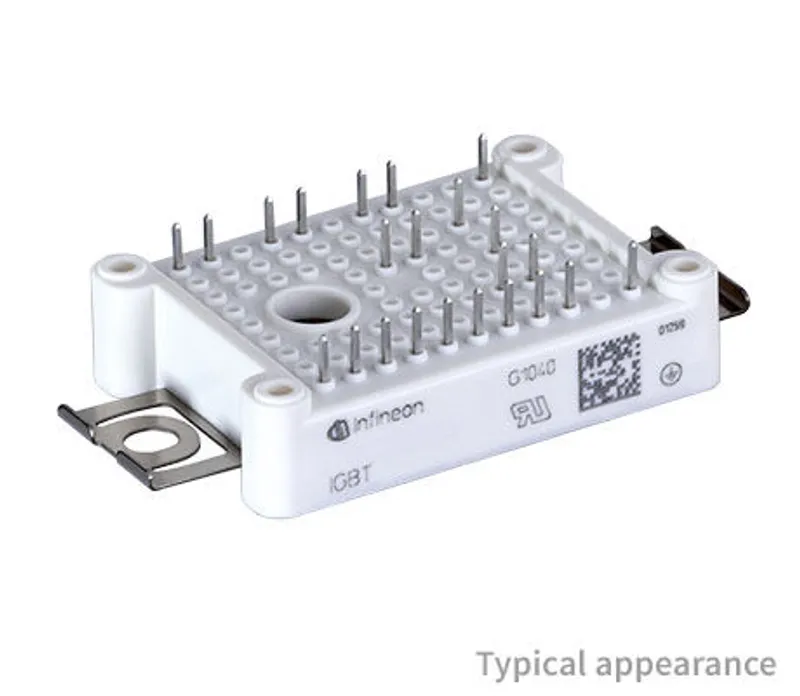

Infineon FB20R06W1E3-B11

600 V, 20 A PIM IGBT module

MPN: FB20R06W1E3-B11
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FB20R06W1E3-B11?

Infineon FB20R06W1E3-B11: 600 V, 20 A PIM IGBT module in EasyPIM™ 1B housing (IGBT3 - E3). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	PIM
Dimensions (length)	48 mm
Dimensions (width)	33.8 mm
Features	PressFIT
Housing	EasyPIM™ 1B
IC(nom) / IF(nom)	20 A
IC max	20 A
Qualification	Industrial
Technology	IGBT3 - E3
VCE(sat) (Tvj=25°C typ)	1.55 V
VCES / VRRM	600 V
VF (Tvj=25°C typ)	1.6 V
Voltage Class max	600 V

Ordering codes (OPN)

FB20R06W1E3B11BPSA1

active and preferred, package AG-EASY1B, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FB20R06W1E3-B11PDF

FB20R06W1E3-B11: frequently asked questions

When can FB20R06W1E3-B11 be shipped?

FB20R06W1E3-B11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FB20R06W1E3-B11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FB20R06W1E3-B11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FB20R06W1E3-B11, subject to availability and destination.
