Infineon FD1000R33HL3-K

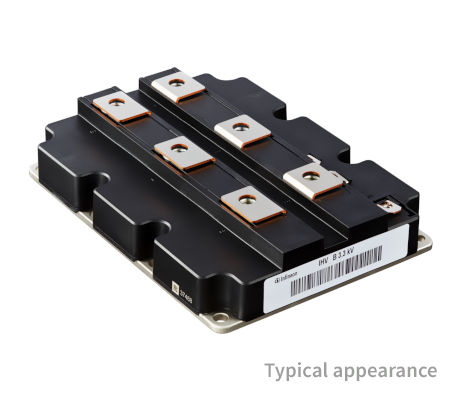

3300 V, 1000 A chopper IGBT module

MPN: FD1000R33HL3-K
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FD1000R33HL3-K?

Infineon FD1000R33HL3-K: 3300 V, 1000 A chopper IGBT module in IHM B housing (IGBT3 - L3). Infineon status: not for new design — still supplied, but not recommended for new designs. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Chopper
Dimensions (length)	190 mm
Dimensions (width)	140 mm
Housing	IHM B
IC(nom) / IF(nom)	1000 A
IC max	1000 A
Qualification	Industrial
Qualification	Traction
Technology	IGBT3 - L3
VCE(sat) (Tvj=25°C typ)	2.4 V
VCES / VRRM	3300 V
VF (Tvj=25°C typ)	2.25 V
Voltage Class max	3300 V

Ordering codes (OPN)

FD1000R33HL3KBPSA1

not for new design, package AG-IHVB190, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FD1000R33HL3-KPDF

FD1000R33HL3-K: frequently asked questions

When can FD1000R33HL3-K be shipped?

FD1000R33HL3-K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD1000R33HL3-K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD1000R33HL3-K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD1000R33HL3-K, subject to availability and destination.
