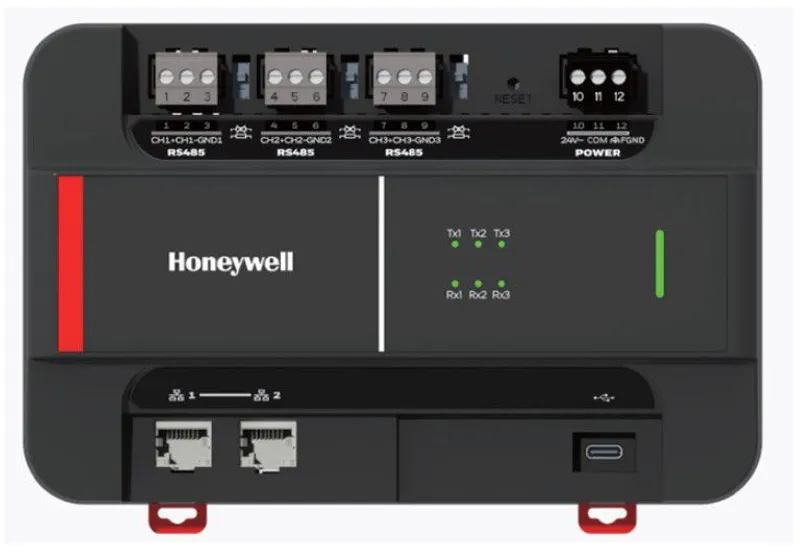

Honeywell ECC200-PE

ECC200 Edge Network Controller

MPN
ECC200-PE
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell ECC200-PE?

The ECC200 series network controller is a member of the edge control series family. It is a compact high-performance embedded controller, dual-core processor, more capacity. It supports multiple protocols at the same time, which is convenientfor connecting remote I/O and field controller. Integrates the functions of alarm, schedule, trend log, event management and network Management, complies with BACnet B-BC standard. It is an ideal choice for distributed control and management in building automation systems.Two Ethernet ports, support ring, daisy chain and star system topology, support RSTP rapid spanning tree protocol, when the network structure changes, faster network convergence, maximum utilization of network resources, and reduced system commissioning costs. while ensuring the real-time performance of the data. It has BACnet broadcast management function, (B-BBMD), to ensure each subnet network device interconnection and secure communication.Support free programable, the upgraded programming tool inherits the original tool style, is more concise and easy to use, program can compatible with The original, support for offline simulation and more functions, improve the efficiency of engineering commissioning.

Features & Benefits:

High performance: Dual-core processor: Arm Cortex-A9 Main frequency: 800mhz; Arm Cortex-M4 • Main frequency: 227MHz

Storage: RAM 1 Gbyte; Flash memory 4 Gbyte

OS is LINUX & RTOS, The kernel is more efficient and stable, while meeting the requirements of real-time performance.

BACnet Object: Up to 2000 points

Three isolated RS485 ports supports BACnet MS/TP or Modbus RTU protocol (selected by users)

Two Ethernet ports, support: Ring/Daisy-Chain/Star Topology. help user for saving network resources also reduce the cost of implementation.

Expandable up to 16 remote IOs (PUC5533-EM2/PUC6002-EM2), Maximum 256 Physical Datapoints

RSTP support (fast spanning tree protocol). When the network structure changes, can recover the network faster and ensure the real-time data transmission.

Programmable using Alaya Tool.

Honeywell Cyber Security compliance (ANSI/ISA 62443-4-2) , encryption chip embedded, ensure system security.

Certifications:

CUL60730-1

UL60730-1

EN60730-1

CE

RoHS 2.0

IEEE 802.3

BTL B-BC , B-RTR,B-BBMD(Rev 18)

Honeywell ECC200-PE — ECC200 compact high-performance network controller. It supports multiple protocols at the same time, which is convenient for connecting remote I/O and field controller. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

ECC200-PE: frequently asked questions

When can ECC200-PE be shipped?

ECC200-PE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECC200-PE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECC200-PE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECC200-PE, subject to availability and destination.

More Honeywell parts

Honeywell ECC-RPU – ECC Remote Page Unit
Honeywell
ECC-RPU

ECC Remote Page Unit

Honeywell ECC-RTZM – Remote Telephone Zone Module
Honeywell
ECC-RTZM

Remote Telephone Zone Module

Honeywell ECC-XRM-70V – ECC-50/100 Command Center Transformer Conversion Module
Honeywell
ECC-XRM-70V

ECC-50/100 Command Center Transformer Conversion Module

Honeywell ECC200-PE1 – BEATs Edge Network Controllers
Honeywell
ECC200-PE1

BEATs Edge Network Controllers

Honeywell ECC2BLK – Egatube® Conduit PVCu Conduit Clips
Honeywell
ECC2BLK

Egatube® Conduit PVCu Conduit Clips

Honeywell ECFX-100-N-EM – NEMA 1 Gas Detection Expansion Module
Honeywell
ECFX-100-N-EM

NEMA 1 Gas Detection Expansion Module

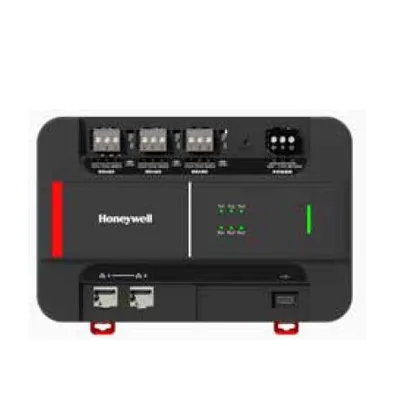

Honeywell ECG100-CE – ECG100 Edge Data Managers
