Honeywell ECC-RPU

ECC Remote Page Unit

MPN
ECC-RPU
Price and lead time confirmed within 1 business day

Discontinued by Honeywell — we can still source the original ECC-RPU (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

What is the Honeywell ECC-RPU?

ECC remote page units (RPUs) are optional -and compatible with the ECC-50/100(E) emergency command center for fire protection applications. -They are part of the external remote consoles family that allow for extending the ECC-50/100(E) display and control to remote locations within a building. -The remote page units are housed in a cabinet with a keyed or an optional thumb lock to limit access to qualified personnel.

These units -include a built-in microphone and eight selection buttons that can be pushed to activate the system remotely. "ALL CALL" paging can be broadcast over the speaker circuits by depressing the microphone's push-to-talk button. As an added benefit, the ninth button on the RPUs can be used to activate an MMF-300 monitor module that may be installed inside the ECC RPU's cabinet to be used for applications such as HVAC shutdown. -RPUs require an external data bus connection, an external audio riser connection, and an external operator interface power connection (24V DC) from the ECC-50/100 main console. Features &- Benefits:

Provides messaging status and control of the ECC-50/100(E) primary operator console

Modular design for maximum system flexibility and easy expansion

Supports both Class A (Style Z) and Class B (Style Y) wiring

A maximum of eight ECC RPUs can be connected to an ECC-50/100(E) primary operating console

Built-in microphone with push-to-talk feature that can be used for "ALL CALL" paging

Up to 14 -programmable messaging functions that can be activated over speaker zones remotely

Sturdy cabinet design with a keyed lock to prevent unauthorized access- optional thumb lock available

Simple and straightforward user interface

Additional ninth button can be used to activate an optional MMF-300 monitor module installed inside the cabinet for applications such as HVAC shutdownCertifications:

UL Listed S2424

CSFM: 7300-0075:0227

FDNY: COA #6152

FM Approved

NFPA 72 Fire Alarm System Requirements Compliant

UL 864

Honeywell ECC-RPU — ECC remote page units (RPUs) are compatible with the ECC-50/100(E) and are part of the external remote consoles family that allow for extending the ECC-50/100(E) display and control to remote locations within a building. Discontinued by Honeywell — no longer in the current range. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued by Honeywell

ECC-RPU: frequently asked questions

Can I still buy the ECC-RPU now that it is discontinued?

Yes. Honeywell has discontinued the ECC-RPU, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can ECC-RPU be shipped?

ECC-RPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECC-RPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECC-RPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECC-RPU, subject to availability and destination.

More Honeywell parts

Honeywell ECC-CE4 – Circuit Zone Expander Module
Honeywell
ECC-CE4

Circuit Zone Expander Module

Honeywell ECC-FFT – Firefighter Telephone System
Honeywell
ECC-FFT

Firefighter Telephone System

Honeywell ECC-LOC – Local Operator Console
Honeywell
ECC-LOC

Local Operator Console

Honeywell ECC-RTZM – Remote Telephone Zone Module
Honeywell
ECC-RTZM

Remote Telephone Zone Module

Honeywell ECC-XRM-70V – ECC-50/100 Command Center Transformer Conversion Module
Honeywell
ECC-XRM-70V

ECC-50/100 Command Center Transformer Conversion Module

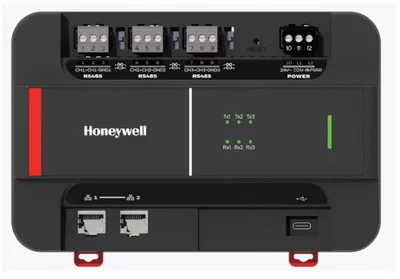

Honeywell ECC200-PE – ECC200 Edge Network Controller
Honeywell
ECC200-PE

ECC200 Edge Network Controller

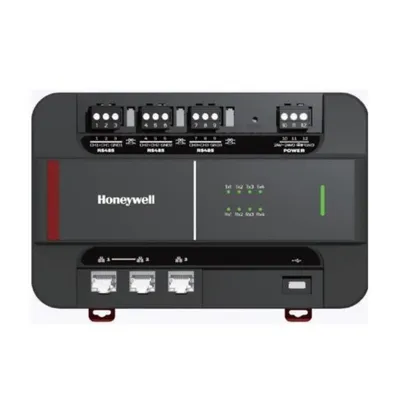

Honeywell ECC200-PE1 – BEATs Edge Network Controllers
