Honeywell ECG100-CE

ECG100 Edge Data Managers

MPN
ECG100-CE
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Honeywell parts? We buy surplus →

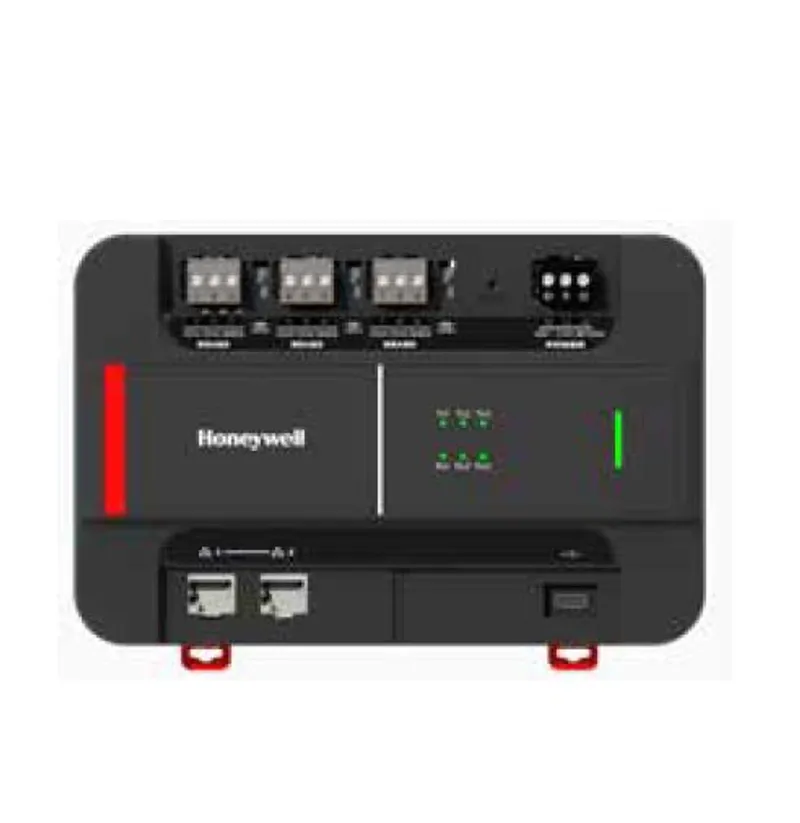

What is the Honeywell ECG100-CE?

The ECG100 features dual-core high-performance processors with 1GB RAM and 4GB flash storage to meet massive data requirements for edge computing in various fields of smart buildings, and enables second-level processing of up to 1,500 points of massive data; each fieldbus port is independently isolated to ensure the reliability of physical data channels; based on the Linux operating system, the Manager has built-in Honeywell cybersecurity software and encryption chips to ensure the security of user data.To ensure accuracy and timeliness of data transmission, the ECG100 supports the function of BACnet Broadcast Management Device - BBMD. The ECG100 has BACnet data management capabilities that connect together BACnet IP networks with BACnet MS/TP networks, Modbus RTU networks, and secure their communications, thus monitoring and controlling HVAC, energy management, lighting, power, water supply and drainage, and other compatible devices and systems in smart buildings.

Features & Benefits:

Compliant with BACnet standard, BACnet Router device with BBMD function

Dual-core high performance processors:

Arm Cortex­A9 Frequency: 800 MHz;

Arm Cortex­M4 Frequency: 227MHz

Operating system: LINUX / RTOS

Real-time system clock

RAM: 1 GB

Flash: 4 GB

Two Ethernet ports, supporting BACnet IP protocol

Three-channel fully isolated RS485 port, supporting BACnet MS/TP protocol or ModbusRTU protocol (customer defined)

BACnet MS/TP communication rates available: 9.6, 19.2, 38.4, 76.8, 115.2 Kbps

Modbus RTU communication rates available: 4.8, 9.6, 19.2, 38.4, 57.6, 115.2 Kbps

Three pairs of LEDs used to indicate communication states of the RS485 channel

Separate breathing LED for users to get knowledge of operating states of data managers rapidly

Compliant with UL60730 standard: Automatic action type 1, operating control

Honeywell ECG100-CE — ECG100 edge data managers enable data collection, processing and security of building auto-control systems on the edge side of intelligent buildings. PartnerPLC sources new, surplus and discontinued Honeywell parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive

ECG100-CE: frequently asked questions

When can ECG100-CE be shipped?

ECG100-CE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ECG100-CE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ECG100-CE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECG100-CE, subject to availability and destination.

More Honeywell parts

Honeywell ECC200-PE – ECC200 Edge Network Controller
Honeywell
ECC200-PE

ECC200 Edge Network Controller

Honeywell ECC200-PE1 – BEATs Edge Network Controllers
Honeywell
ECC200-PE1

BEATs Edge Network Controllers

Honeywell ECC2BLK – Egatube® Conduit PVCu Conduit Clips
Honeywell
ECC2BLK

Egatube® Conduit PVCu Conduit Clips

Honeywell ECFX-100-N-EM – NEMA 1 Gas Detection Expansion Module
Honeywell
ECFX-100-N-EM

NEMA 1 Gas Detection Expansion Module

Honeywell ECG2BLK – Egatube® Conduit Compression Gland
Honeywell
ECG2BLK

Egatube® Conduit Compression Gland

Honeywell ECHTP – Ethernet Cable
Honeywell
ECHTP

Ethernet Cable

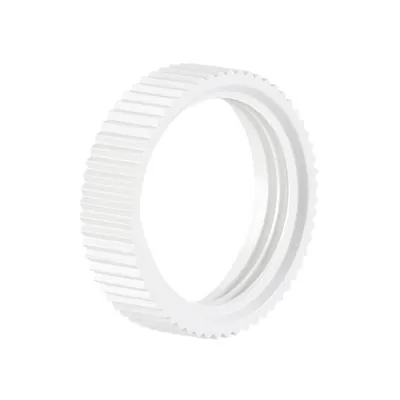

Honeywell ECL2BLK – Egatube® Conduit Lockring
Honeywell
ECL2BLK

Egatube® Conduit Lockring

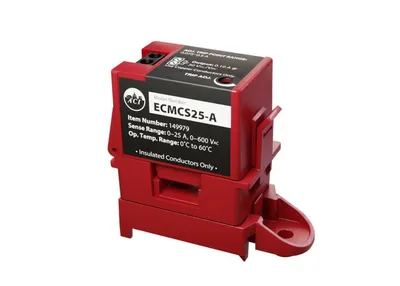

Honeywell ECMCS25-A – ECMCS Current Switch
