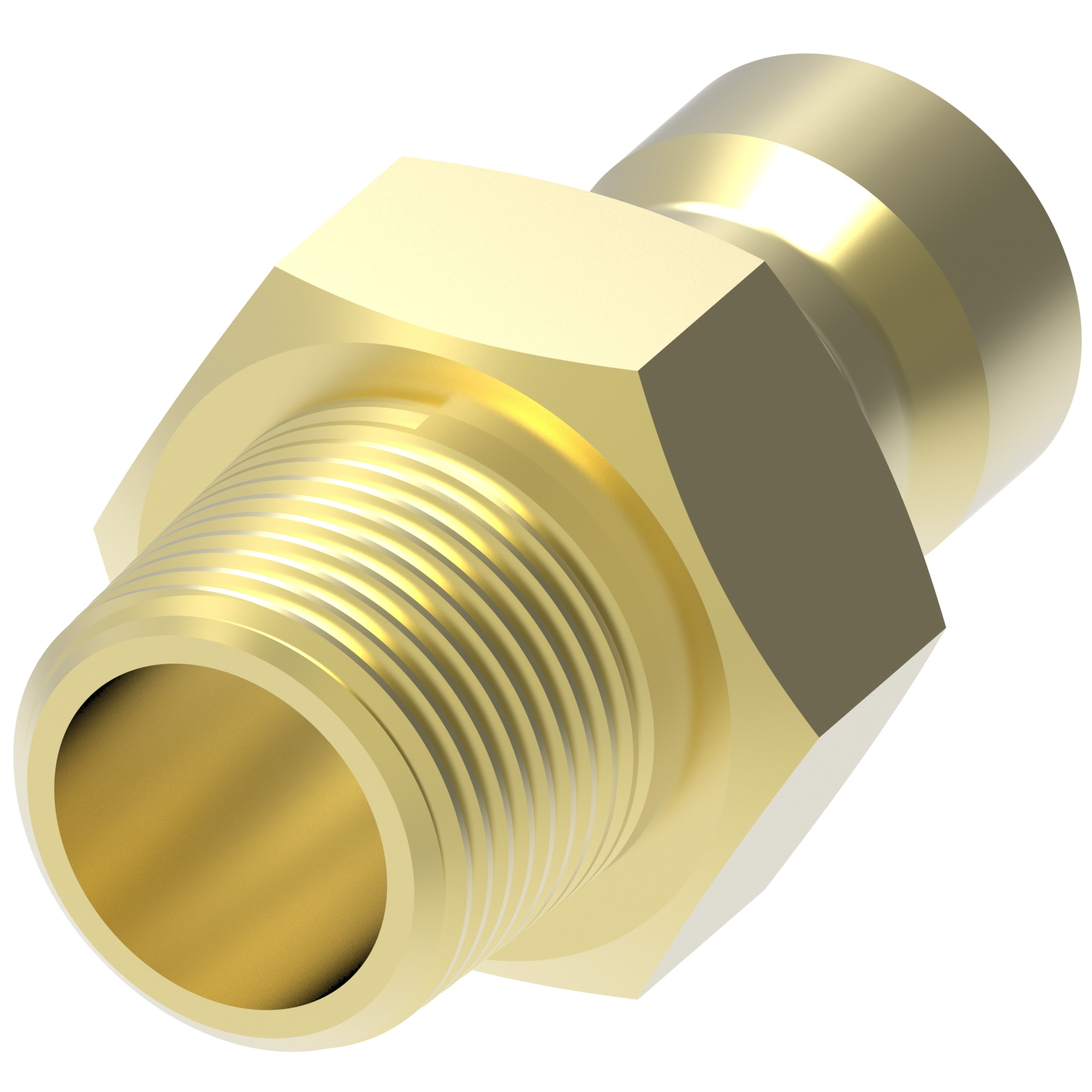

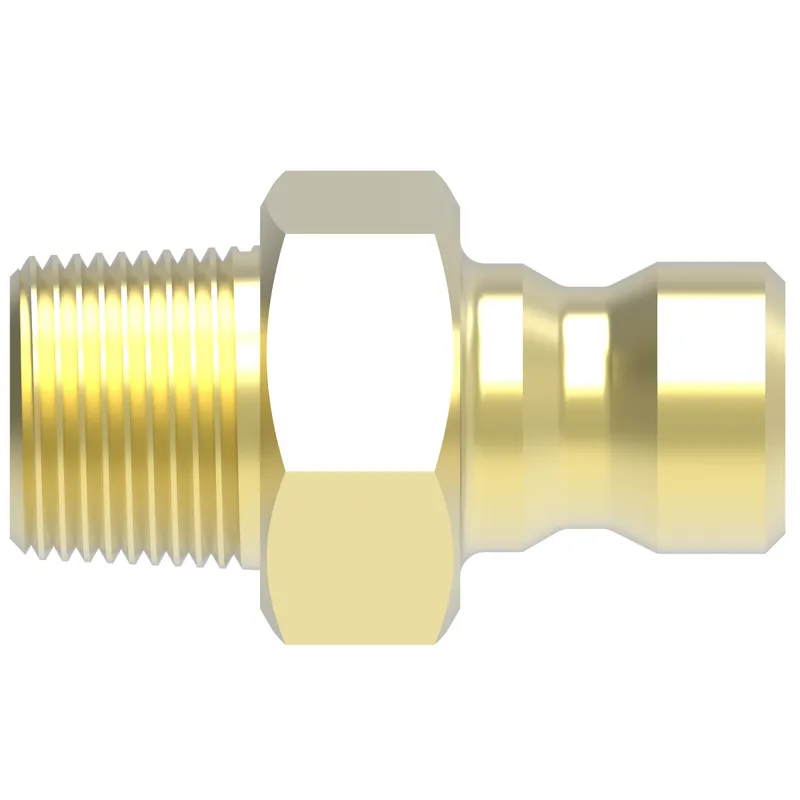

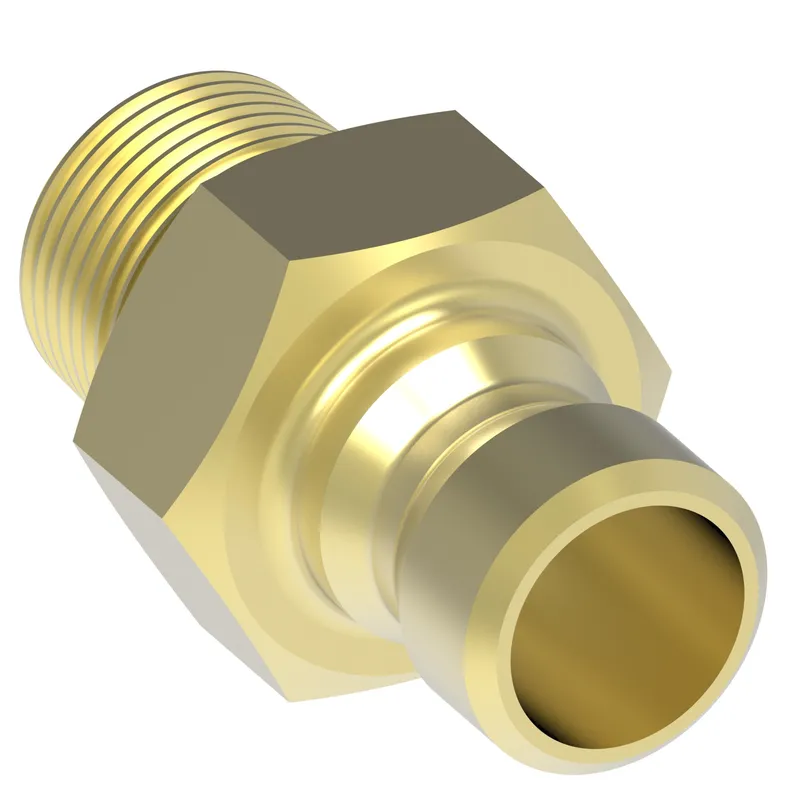

Danfoss FTP554

Cplng, FLO-TEMP SERIES MALE, BRASS

MPN: FTP554
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FTP554?

Danfoss Cplng, FLO-TEMP SERIES MALE, BRASS, manufacturer part number FTP554. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146030597
Angle shape	Straight
Body size	1/2
Brand	Danfoss
Burst pressure min bar	55
Burst pressure min psi	800
Connection style	Manual connect
End size 2	-8
End Type 1	Male push to connect
End Type 2	Male pipe (NPTF)
Flow rate GPM	13.00
Flow rate LPM	49.21
Fluid compatibility	Gas, Oil, Water
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Male half
Latch type	Push/pull
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	Straight thru
Working pressure max psi	200
Working pressure max BAR	14.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
