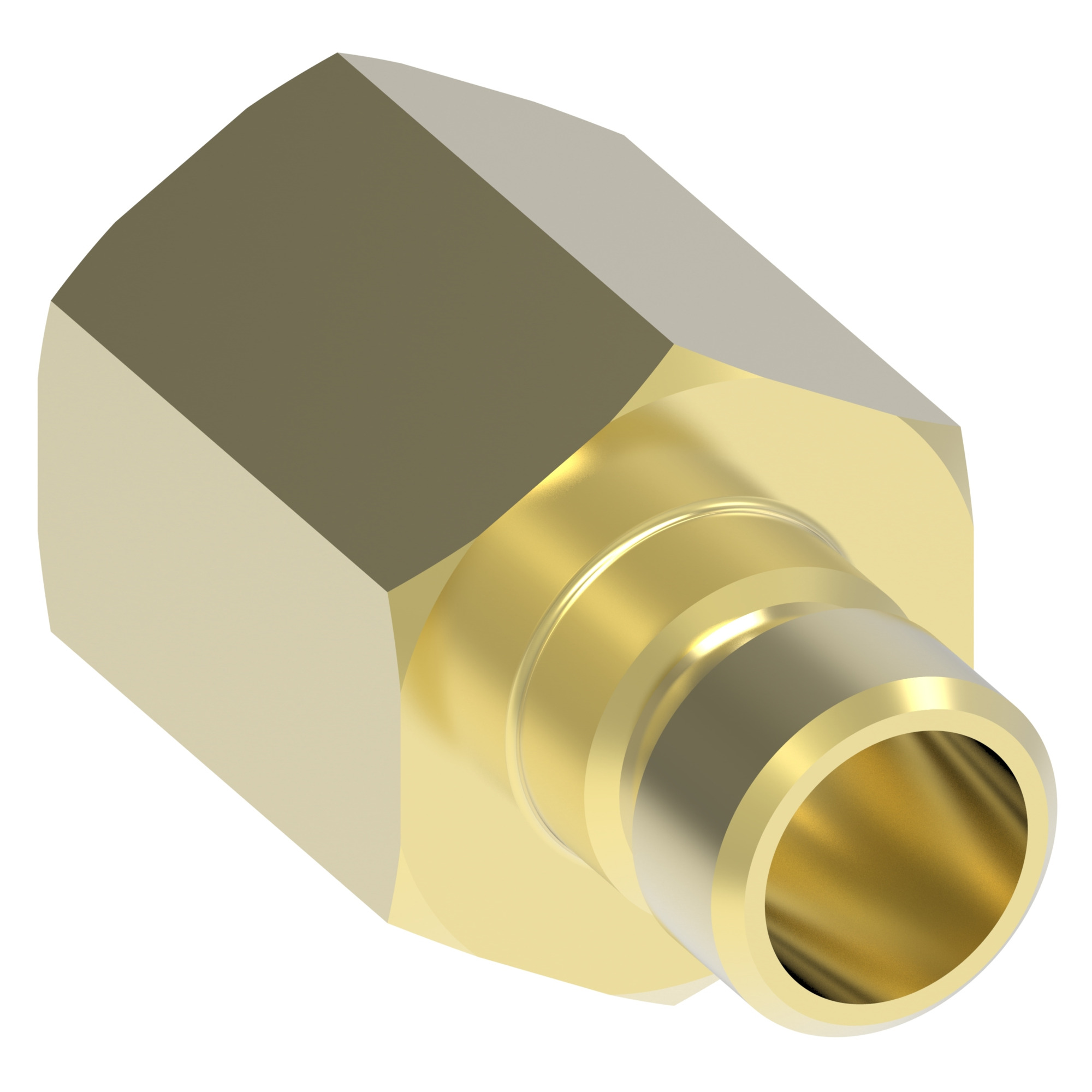

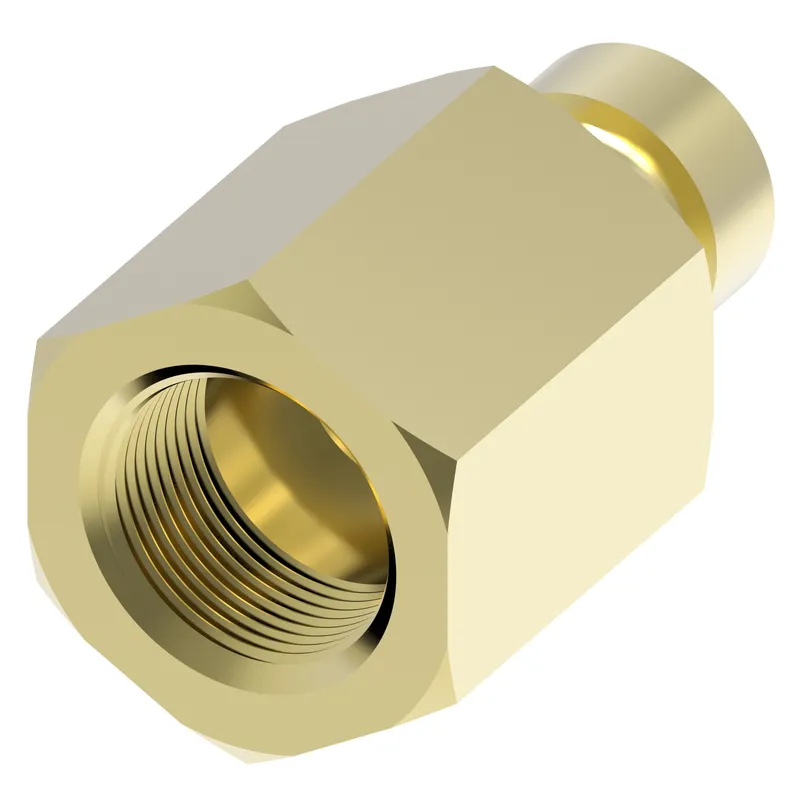

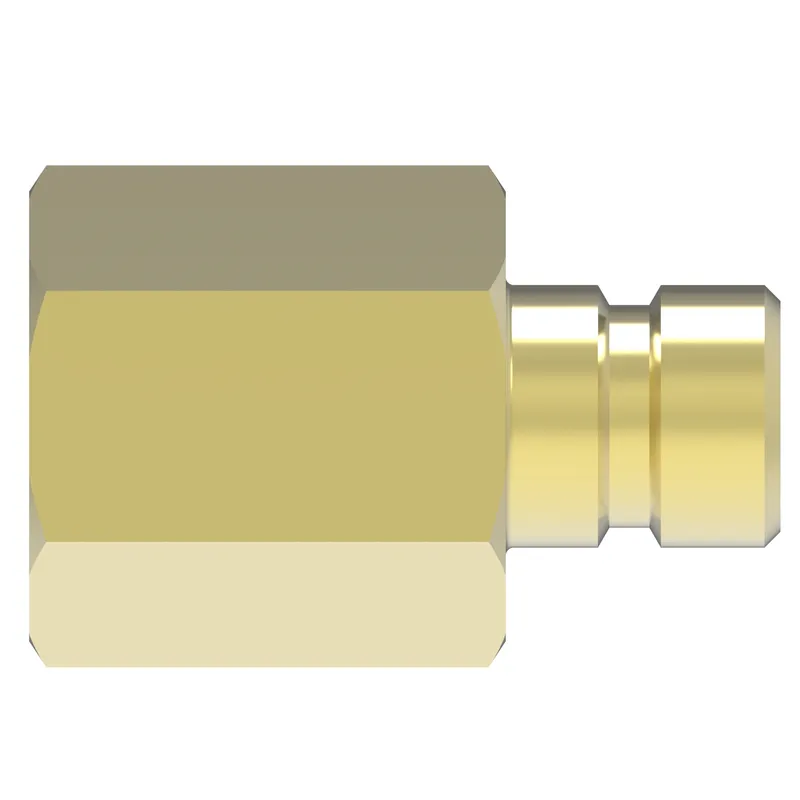

Danfoss FTP353F

STRAIGHT THROUGH PLUG

MPN: FTP353F
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FTP353F?

Danfoss STRAIGHT THROUGH PLUG, manufacturer part number FTP353F. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146032102
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	55
Burst pressure min psi	800
Connection style	Manual connect
End size 2	-6
End Type 1	Male push to connect
End Type 2	Female pipe (NPTF)
Flow rate GPM	4.50
Flow rate LPM	17.03
Fluid compatibility	Gas, Oil, Water
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Item type	Male half
Latch type	Push/pull
Product length in	1.400
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	Straight thru
Working pressure max psi	200
Working pressure max BAR	14.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
