Danfoss FF1796-1212S

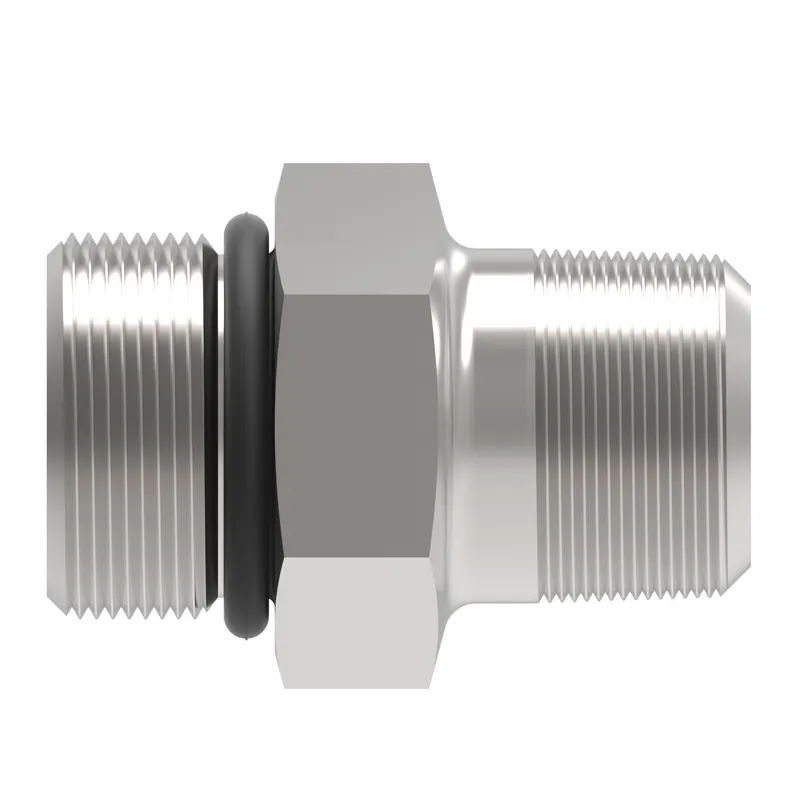

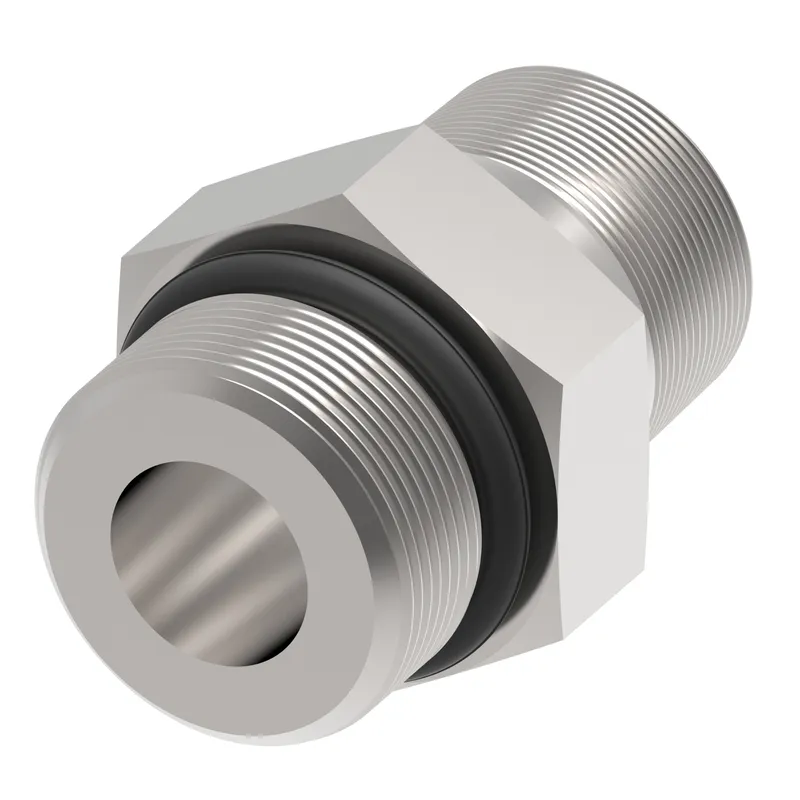

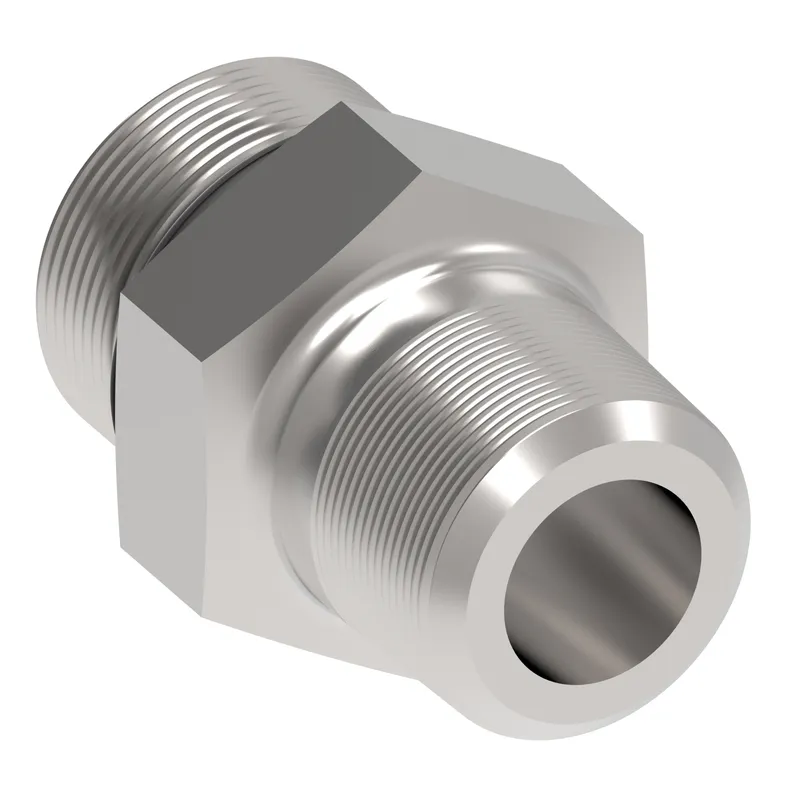

Adapter ORB-NPTF Str 12 M ORB x 12 MP

MPN: FF1796-1212S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF1796-1212S?

Danfoss Adapter ORB-NPTF Str 12 M ORB x 12 MP, manufacturer part number FF1796-1212S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146189042
Brand	Danfoss
End Type 1	Male ORB ISO 11926-3
End Type 2	Male pipe (NPTF)
Finish plating	Zinc
Hex size 1 IN	1.250
Hex size 1 MM	31.800
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 2	1 1/16-12 UN
Tube outside diameter 1 IN	0.750
Tube outside diameter 1 MM	19.1
Tube outside diameter 2 IN	0.750
Tube outside diameter 2 MM	19.1
Working pressure bar	207.0
Working pressure psi	3000
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
