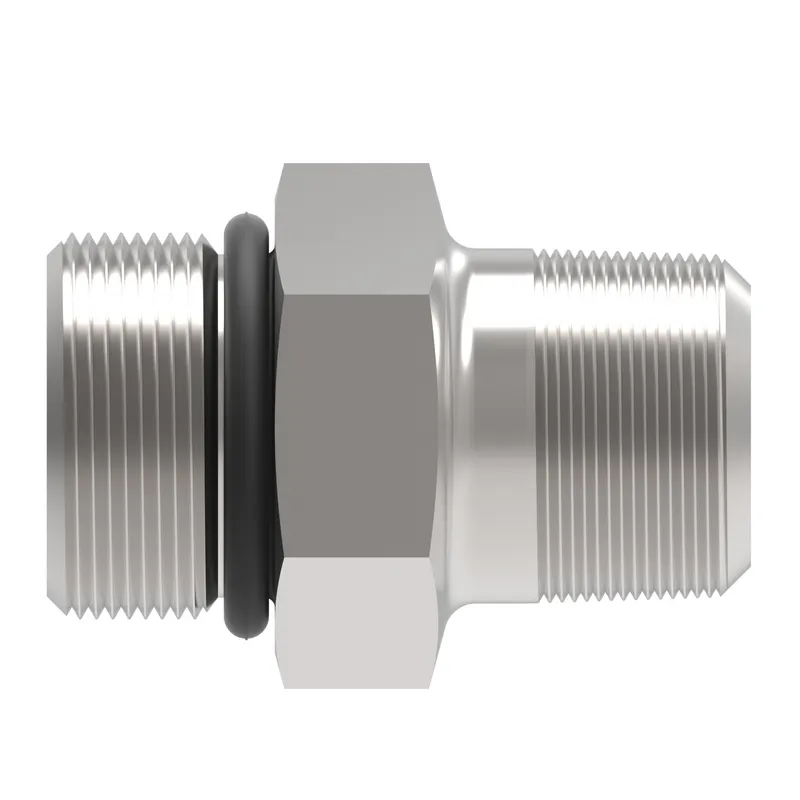

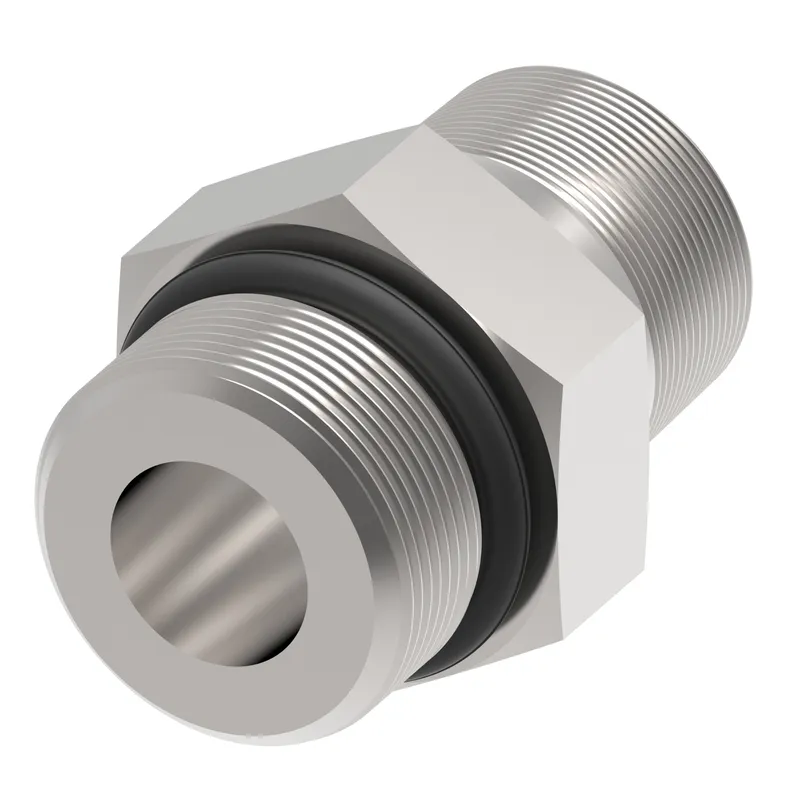

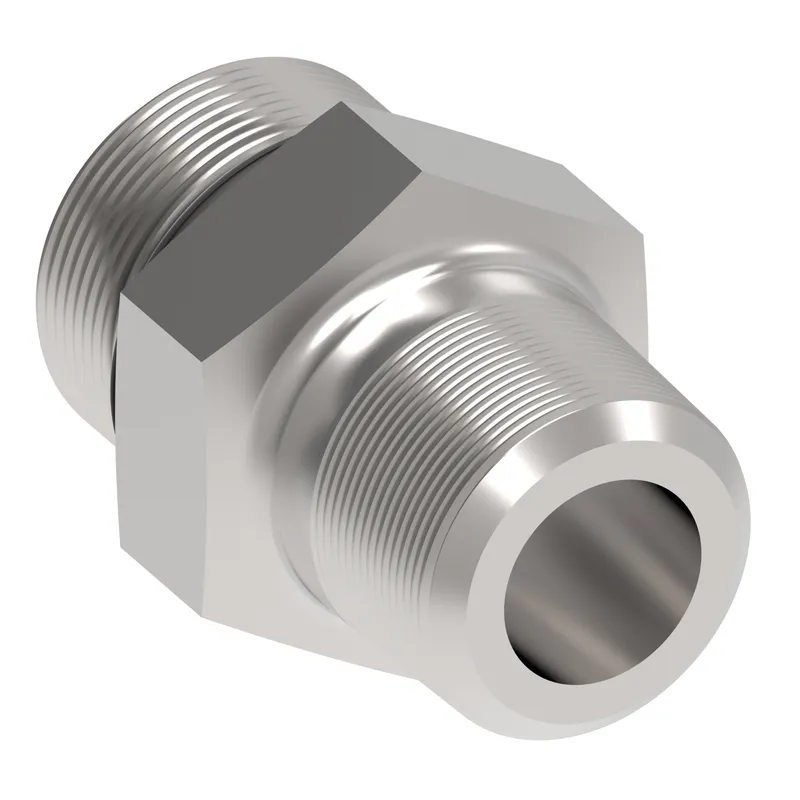

Danfoss FF1796-0806S

Adapter ORB-NPTF Str 08 M ORB x 06 MP

MPN: FF1796-0806S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF1796-0806S?

Danfoss Adapter ORB-NPTF Str 08 M ORB x 06 MP, manufacturer part number FF1796-0806S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146189011
Brand	Danfoss
End Type 1	Male ORB ISO 11926-3
End Type 2	Male pipe (NPTF)
Finish plating	Zinc
Hex size 1 IN	0.875
Hex size 1 MM	22.200
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	3/4-16 UNF
Tube outside diameter 1 IN	0.500
Tube outside diameter 1 MM	12.7
Tube outside diameter 2 IN	0.375
Tube outside diameter 2 MM	9.5
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40

FF1796-0806S: frequently asked questions

When can FF1796-0806S be shipped?

FF1796-0806S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF1796-0806S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF1796-0806S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF1796-0806S, subject to availability and destination.
