Danfoss FF1796-3232S

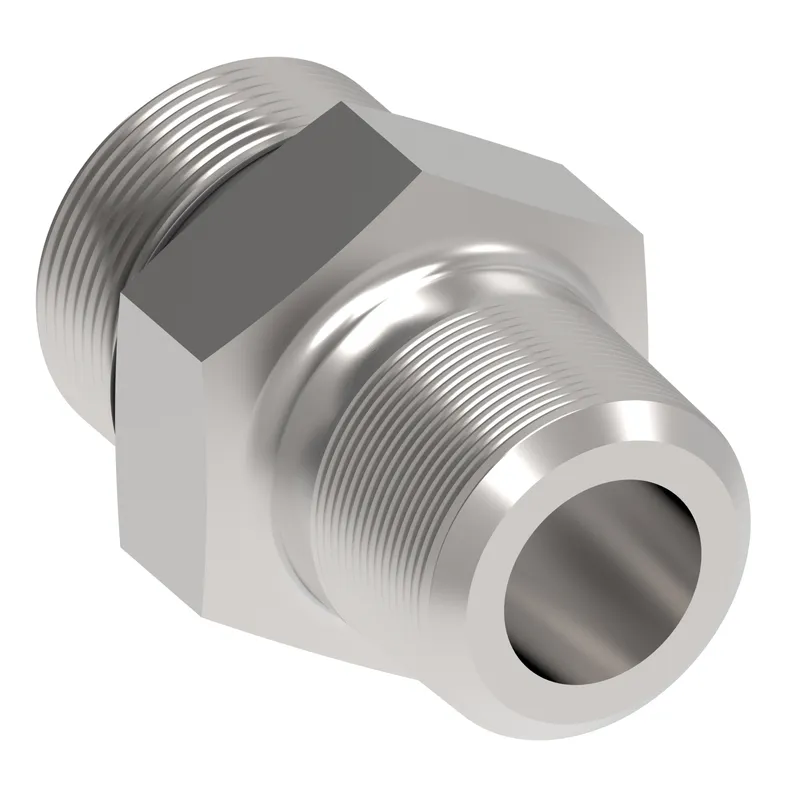

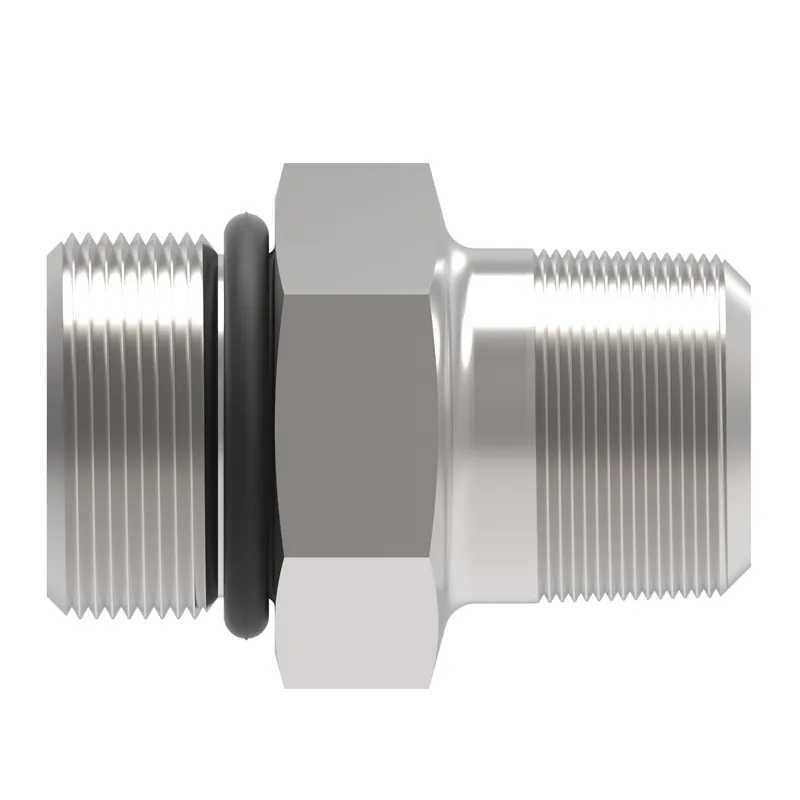

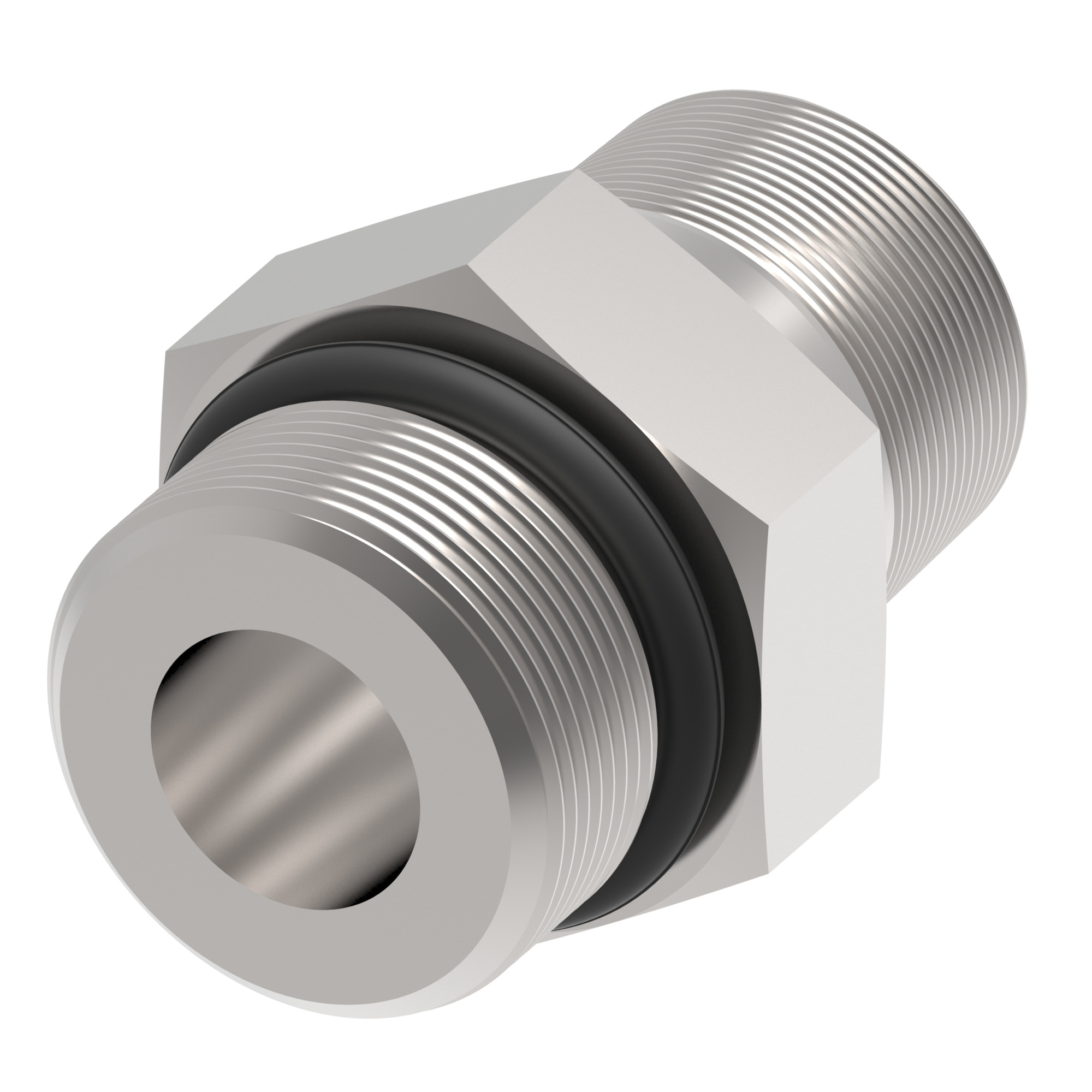

Adptr STRAIGHT ORING 32MP X32 MALE ORING

MPN: FF1796-3232S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF1796-3232S?

Danfoss Adptr STRAIGHT ORING 32MP X32 MALE ORING, manufacturer part number FF1796-3232S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146189080
Brand	Danfoss
End Type 1	Male ORB ISO 11926-3
End Type 2	Male pipe (NPTF)
Finish plating	Zinc
Hex size 1 IN	2.750
Hex size 1 MM	69.900
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	2 1/2-12 UN
Tube outside diameter 1 IN	1.780
Tube outside diameter 1 MM	45.2
Tube outside diameter 2 IN	1.940
Tube outside diameter 2 MM	49.3
Working pressure bar	78.0
Working pressure psi	1125
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40

FF1796-3232S: frequently asked questions

When can FF1796-3232S be shipped?

FF1796-3232S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF1796-3232S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF1796-3232S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF1796-3232S, subject to availability and destination.
