Danfoss FF1796-0604S

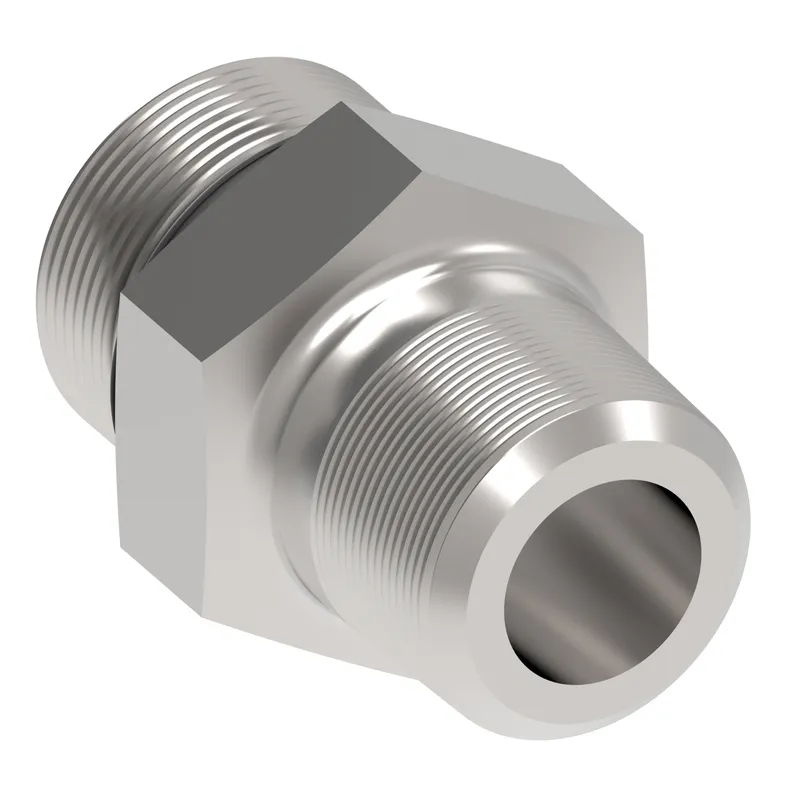

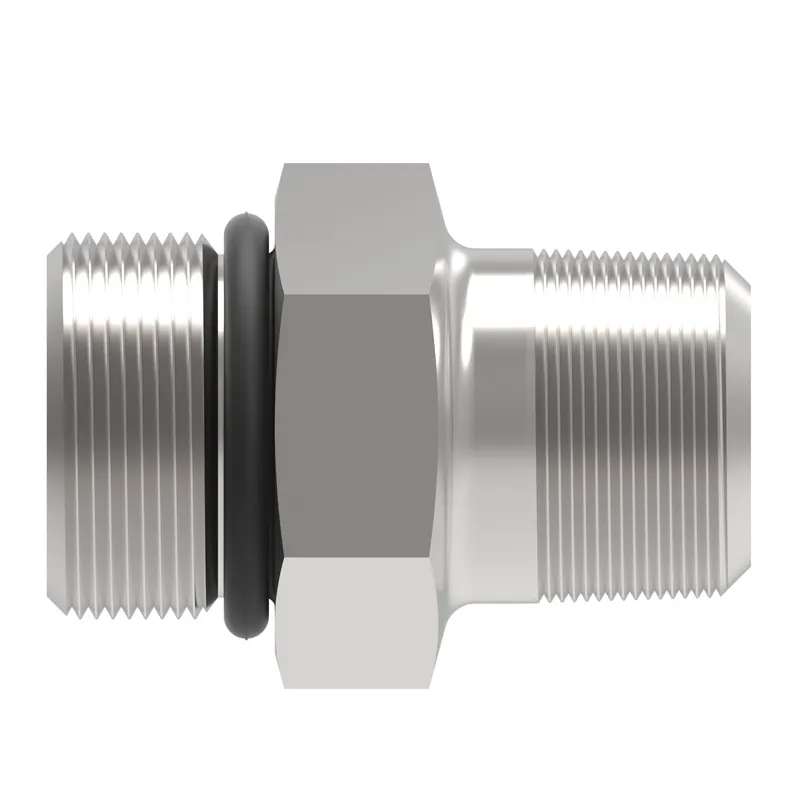

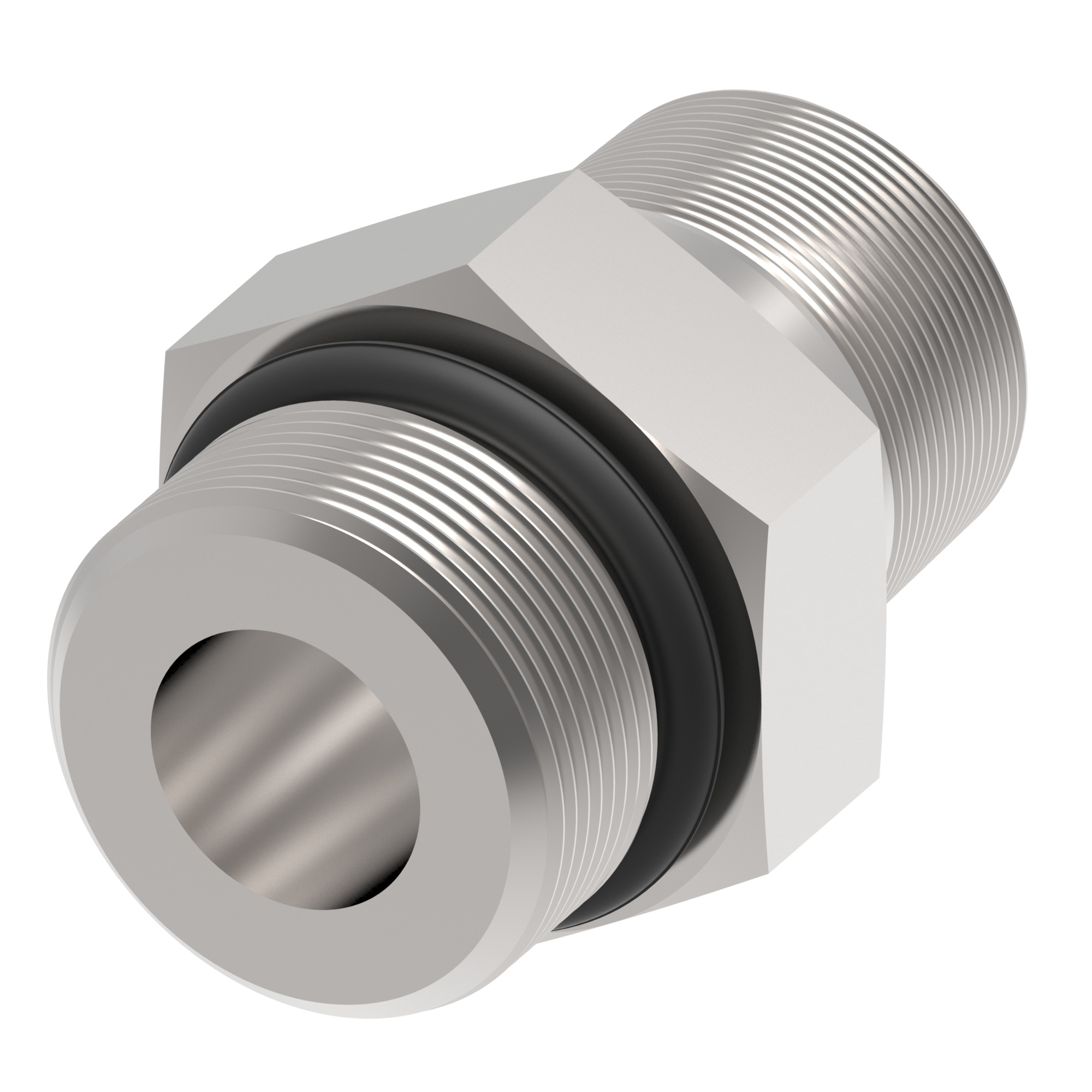

Adapter ORB-NPTF Str 06 M ORB x 04 MP

MPN: FF1796-0604S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FF1796-0604S?

Danfoss Adapter ORB-NPTF Str 06 M ORB x 04 MP, manufacturer part number FF1796-0604S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146189004
Brand	Danfoss
End Type 1	Male ORB ISO 11926-3
End Type 2	Male pipe (NPTF)
Finish plating	Zinc
Hex size 1 IN	0.688
Hex size 1 MM	17.500
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	9/16-18 UNF
Tube outside diameter 1 IN	0.375
Tube outside diameter 1 MM	9.5
Tube outside diameter 2 IN	0.250
Tube outside diameter 2 MM	6.4
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
