Danfoss FBG1000

HOSE-AER, FBG, -10, PRFM,BU

MPN
FBG1000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

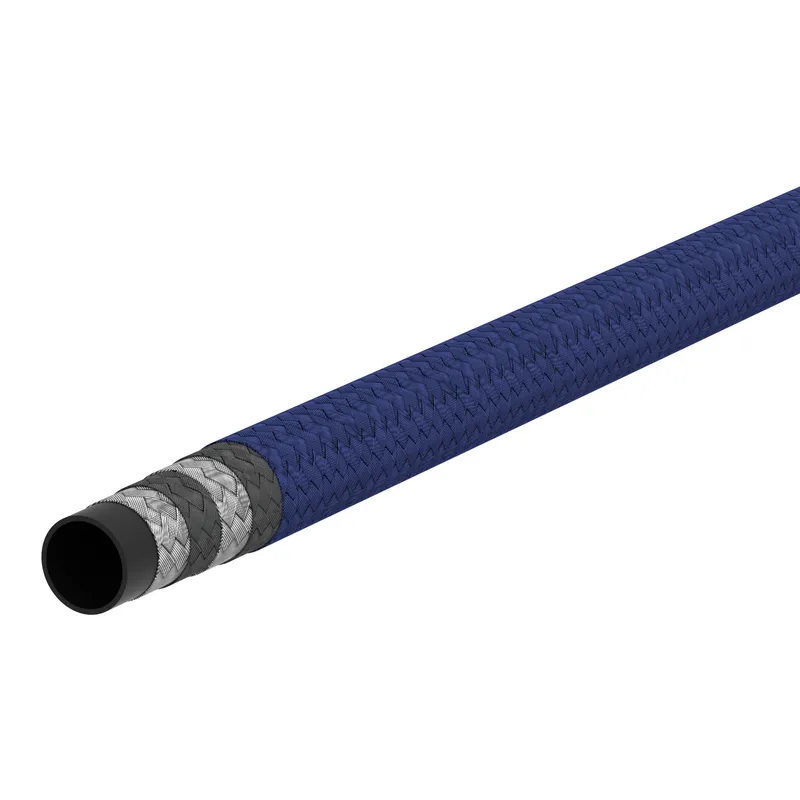

What is the Danfoss FBG1000?

Danfoss HOSE-AER, FBG, -10, PRFM,BU, manufacturer part number FBG1000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146117649
Abrasion resistancePremium
ApplicationFuel gas system
Bend radius min (inch)5.500
Bend radius min (mm)140.000
BrandAeroquip by Danfoss
Burst pressure (bar)488
Burst pressure (psi)7100
ColorBlue
CompliancesSAE J1402
Conditional temp rangeAir not to exceed 121C
ConductivityConductive
Construction1 Wire Braid
Cover materialPolyester (PET)
Inside diameter (inch)0.50
Inside diameter (mm)12.70
Lay line styleInk wheel
Outside diameter (inch)0.92
Outside diameter (mm)23.37
Package formBulk
Product height in0.500
Product height mm12.700
Product width in0.500
Product width mm12.700 mm
Qualified hose fittingsReusable
Reinforcement materialBrass plated steel wire
SeriesFBG Series
Size-10
Tube materialChlorinated Polyethylene (CPE)
Vacuum rating (inHg)28
Vacuum rating (mmHg)711.20
Working pressure max (bar)122
Working pressure max (psi)1750
Working temperature max (C)150
Working temperature max (F)302.0
Working temperature min (C)-50
Working temperature min (F)-58.0

FBG1000: frequently asked questions

When can FBG1000 be shipped?

FBG1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBG1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBG1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBG1000, subject to availability and destination.
