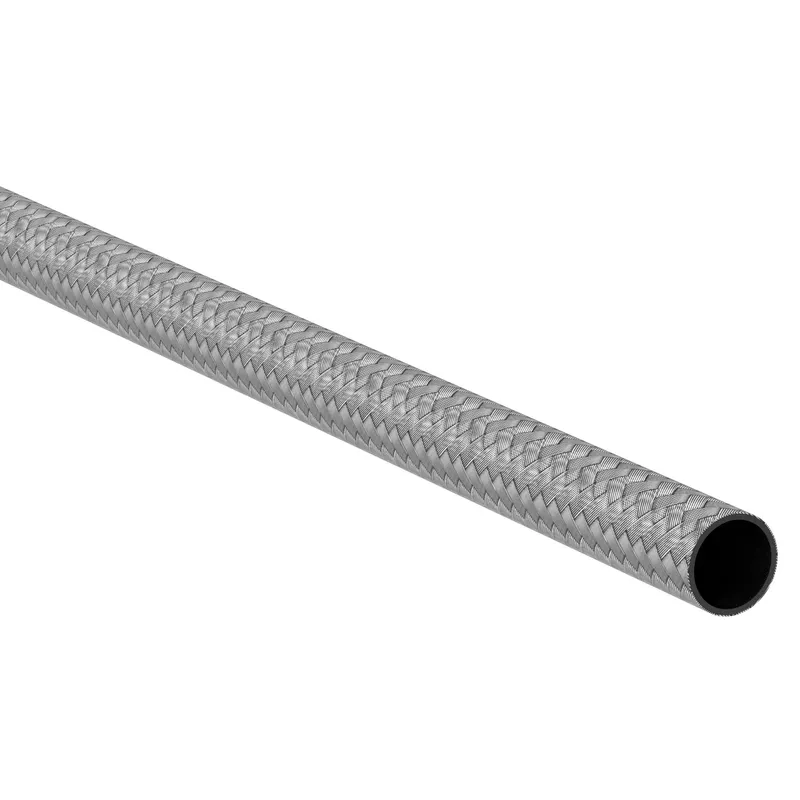

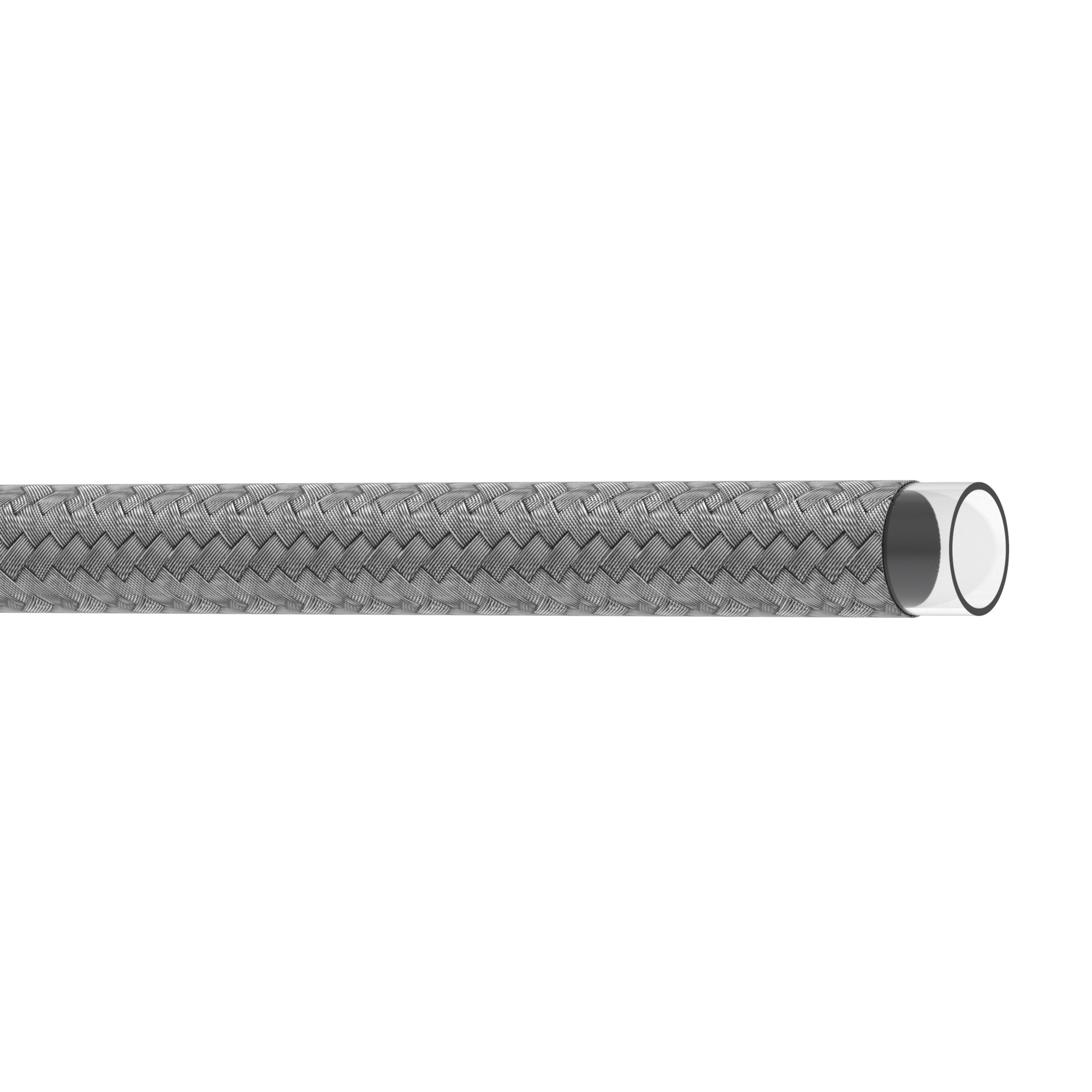

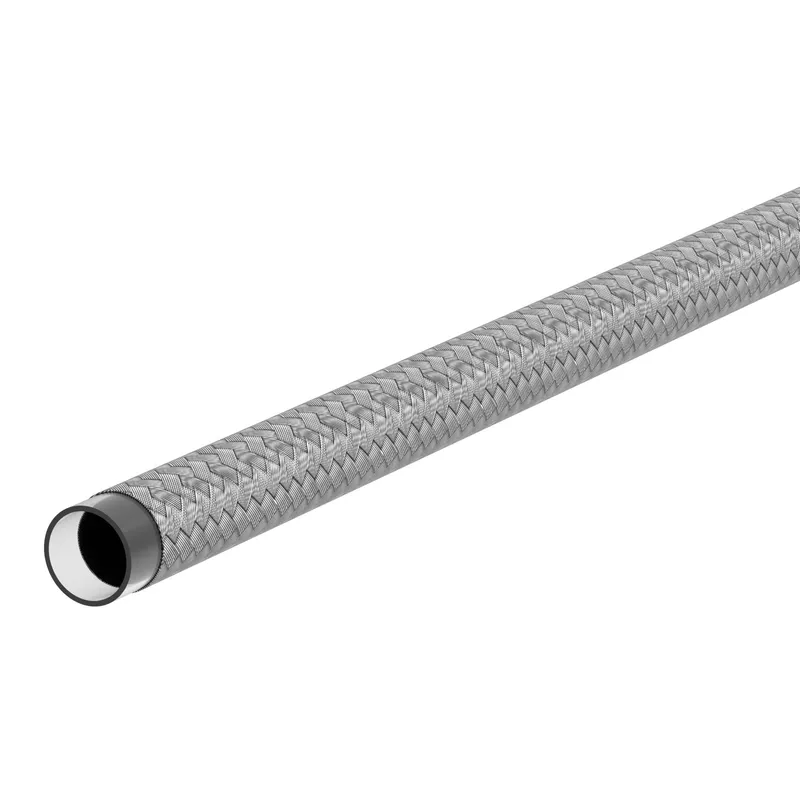

Danfoss FBF0800

HOSE-AER, FBF, -7, AC,GY

MPN: FBF0800
Category: Aeroquip performance products

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss FBF0800?

Danfoss HOSE-AER, FBF, -7, AC,GY, manufacturer part number FBF0800. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146025326
Abrasion resistance	Premium
Application	Air conditioning
Bend radius min (inch)	5.250
Bend radius min (mm)	133.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	138
Burst pressure (psi)	2000
Color	Stainless steel
Conductivity	Non-conductive
Construction	1 Wire Braid
Cover material	Stainless steel
Impulse cycle (cycles)	150000
Inside diameter (inch)	0.42
Inside diameter (mm)	10.70
Lay line style	Ink transfer
Outside diameter (inch)	0.56
Outside diameter (mm)	14.20
Package form	Bulk
Product height in	0.420
Product height mm	10.700
Product width in	0.420
Product width mm	10.700 mm
Qualified hose fittings	Contact Danfoss for fittings
Reinforcement material	Brass plated steel wire
Series	FBF Series
Size	-7
Tube material	Nylon 11
Working pressure max (bar)	34
Working pressure max (psi)	500
Working temperature max (C)	121
Working temperature max (F)	250.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0

FBF0800: frequently asked questions

When can FBF0800 be shipped?

FBF0800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FBF0800 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FBF0800 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FBF0800, subject to availability and destination.
