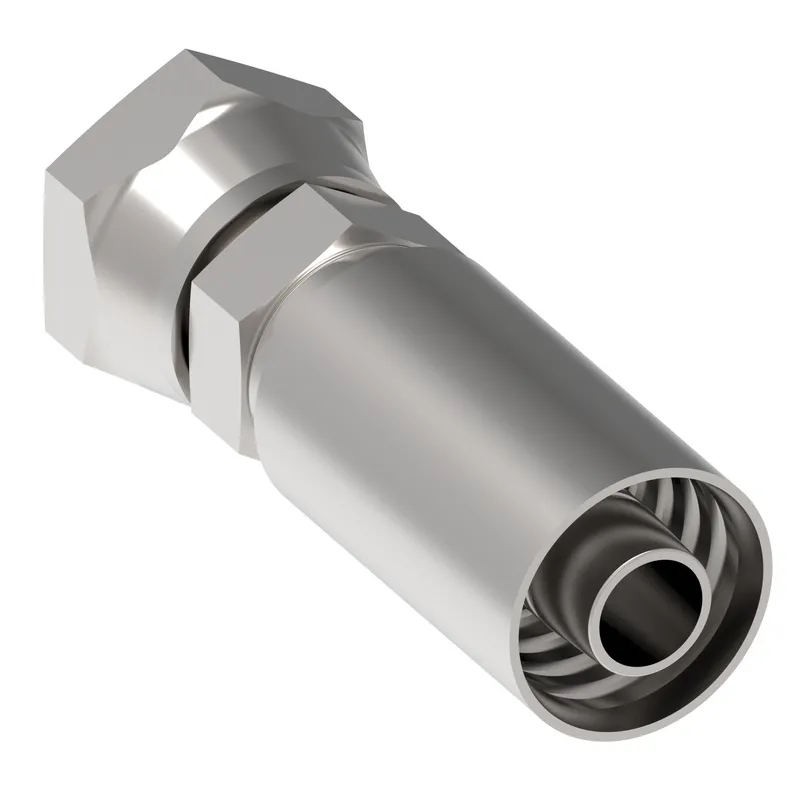

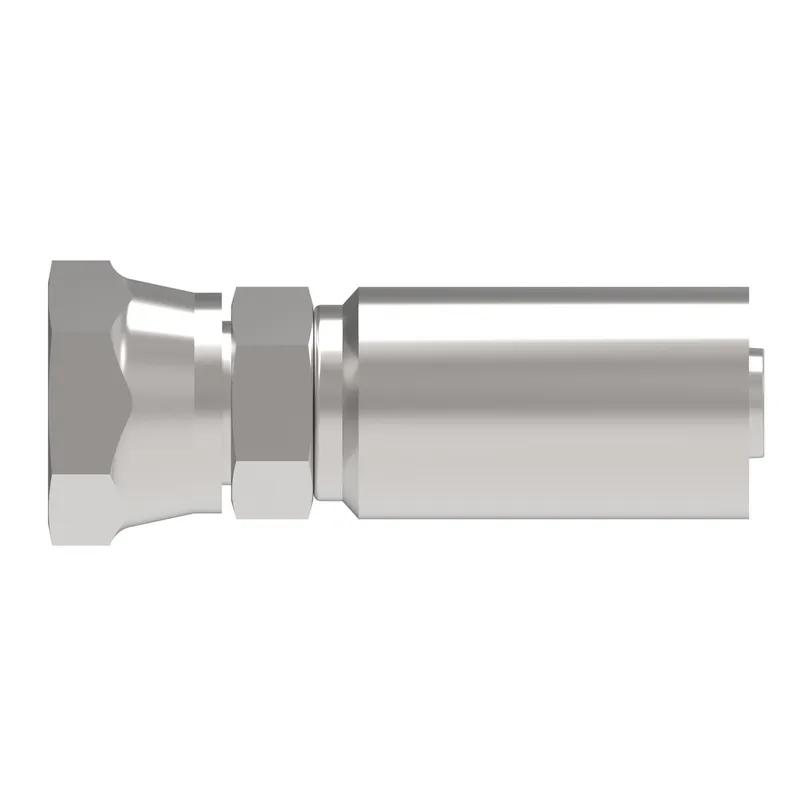

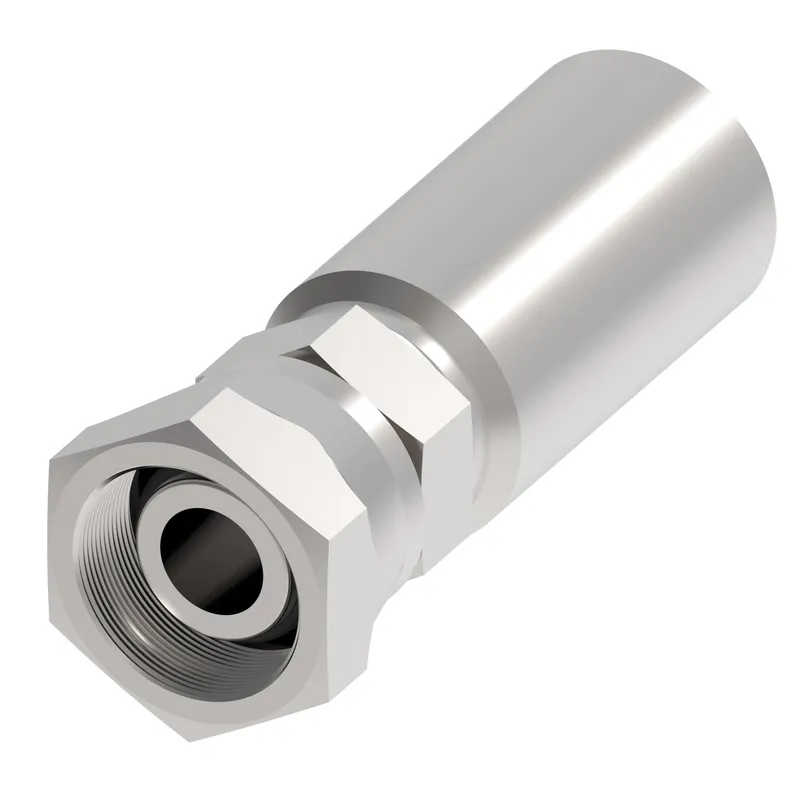

What is the Danfoss 90308-08B000?

Danfoss HOSE FTG, 4T/08, US/08, CS, STR, manufacturer part number 90308-08B000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.115
A dimension MM79.121
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End type 1Female BSPP swivel
Hex size 1 IN0.750
Hex size 1 MM19.000
Hex size 2 IN0.875
Hex size 2 MM22.000
Hose cut off factor IN1.566
Hose cut off factor MM39.776
Hose size-8
Inside diameter IN0.281
Inside diameter MM7.137
Product height in1.226
Product height mm31.150
Product length in3.115
Product length mm79.121
Product materialCarbon steel
Product width in1.226
Product width mm31.150 mm
Thread sealantNo
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
