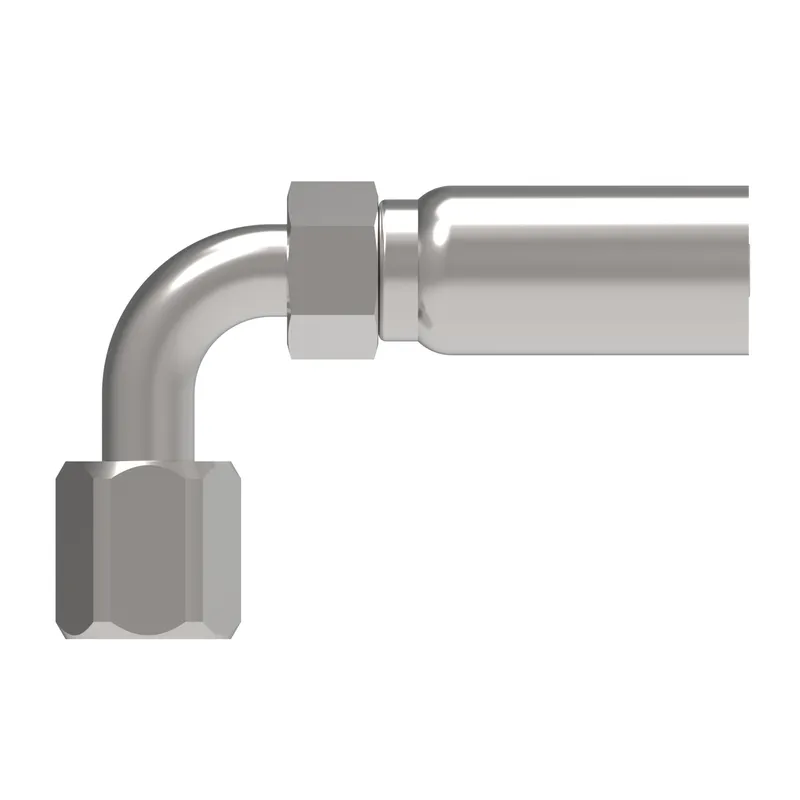

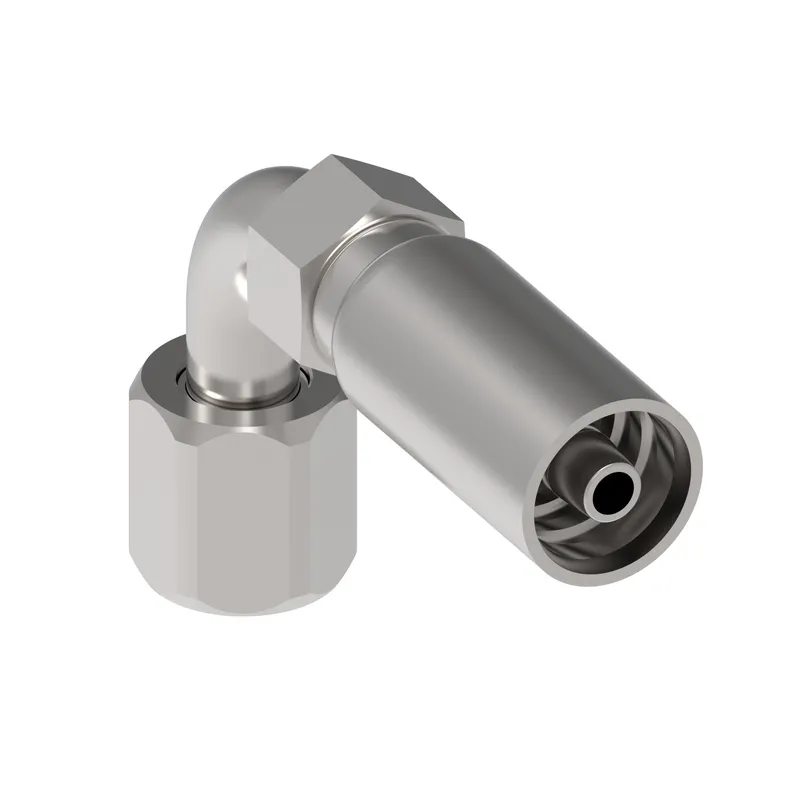

Danfoss 90308-0855S0-0

FTG-Steel- F-JIC - 90SD WAS 3903-08648 S

MPN
90308-0855S0-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90308-0855S0-0?

Danfoss FTG-Steel- F-JIC - 90SD WAS 3903-08648 S, manufacturer part number 90308-0855S0-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789325457
Angle shape90 Degree
BrandSynflex by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Compatible tube OD IN0.50
Compatible tube OD MM12.700
Construction StyleSwage
End size 1-12
End type 1Female 37 degree swivel
Hex size 1 IN0.880
Hex size 1 MM22.4
Hex size 2 IN0.880
Hex size 2 MM22.4
Hose cut off factor IN1.440
Hose cut off factor MM36.576
Hose size-8
Inside diameter IN0.3900
Inside diameter MM9.9060
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700
Working pressure max BAR276
Working pressure max PSI4000
