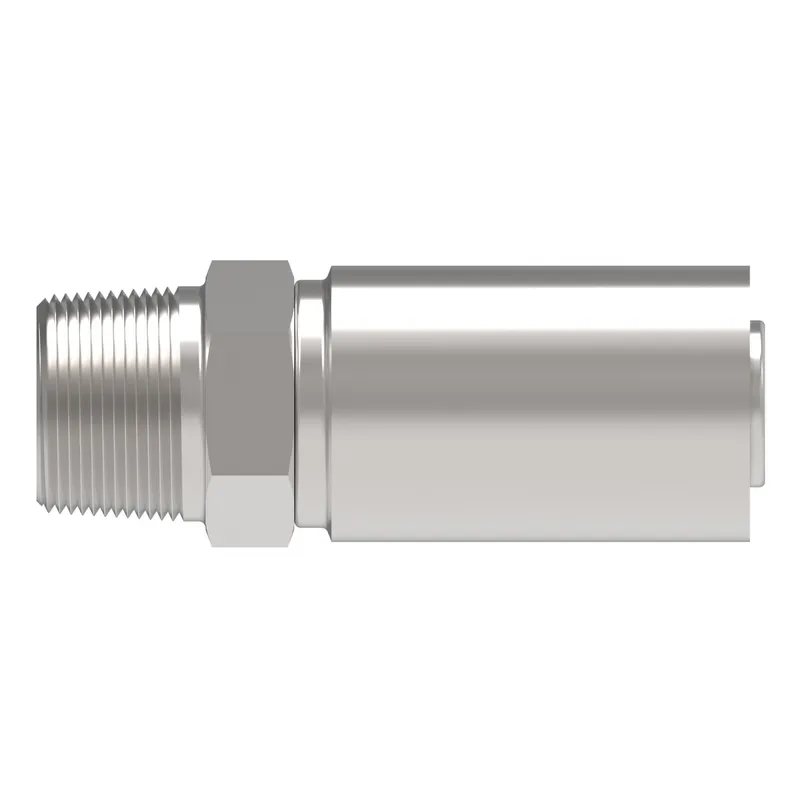

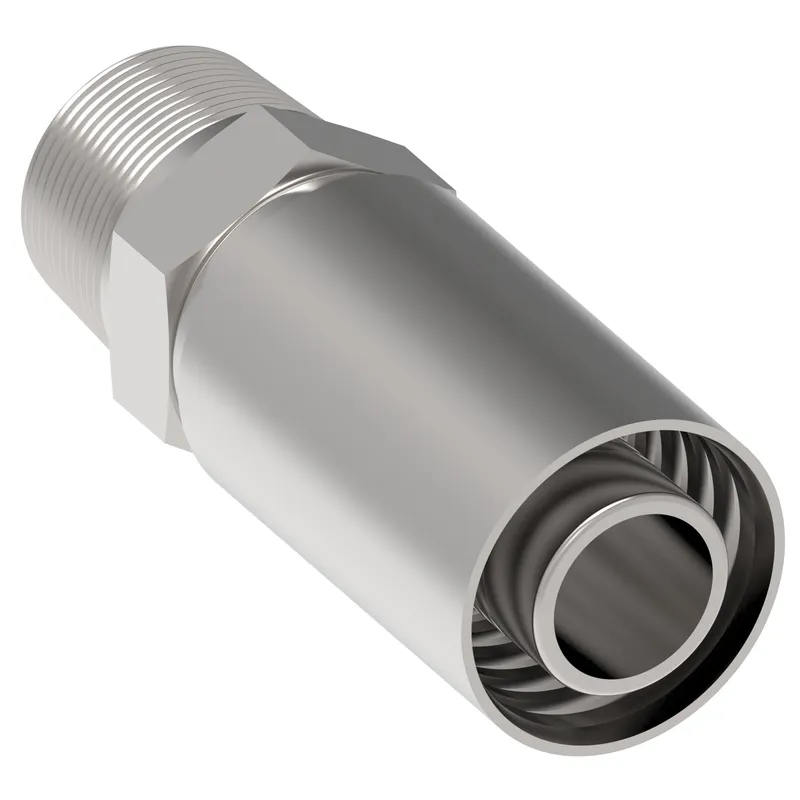

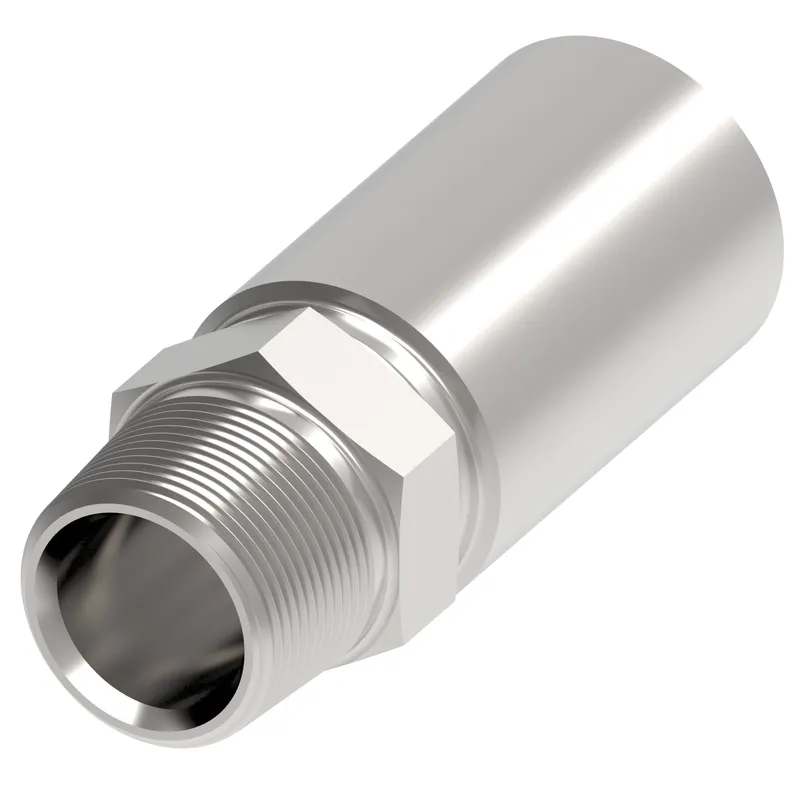

Danfoss 90308-081000-0-BG – FTG-Steel- M-PIPE- STRT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 90308-081000-0-BG be shipped?
90308-081000-0-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 90308-081000-0-BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 90308-081000-0-BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90308-081000-0-BG, subject to availability and destination.
Danfoss FTG-Steel- M-PIPE- STRT, manufacturer part number 90308-081000-0-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Angle shape | Straight |
| Brand | Synflex by Danfoss |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Compatible hoses | 37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30 |
| Compatible tube OD IN | 0.50 |
| Compatible tube OD MM | 12.700 |
| Construction Style | Swage |
| End size 1 | -8 |
| End type 1 | Male pipe (NPT) |
| Hex size 1 IN | 0.940 |
| Hex size 1 MM | 23.900 |
| Hose cut off factor IN | 1.500 |
| Hose cut off factor MM | 38.100 |
| Hose size | -8 |
| Inside diameter IN | 0.4000 |
| Inside diameter MM | 10.1600 |
| Product material | Carbon steel |
| Thread sealant | No |
| Tube OD 1 IN | 0.500 |
| Tube OD 1 MM | 12.700 |
More Danfoss (Drives) parts

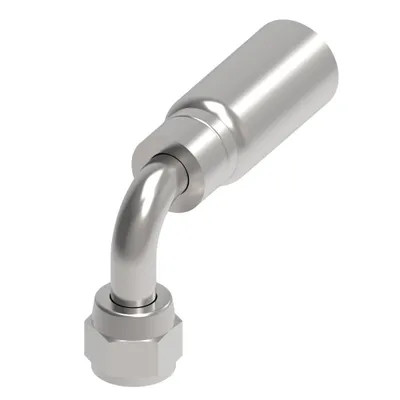

Available on requestHOSE FTG, 4T/06, JIC-M/08, CS, 90D
Available on requestREPLACED BY 9M306-12N000
Available on requestConexion hidraulica de a cero
Available on requestconecion permanente SYNFLEX macho

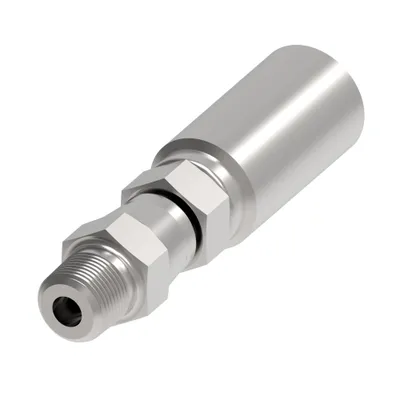

Available on requestFtng (perm), thermo MALE PIPE SWIVEL

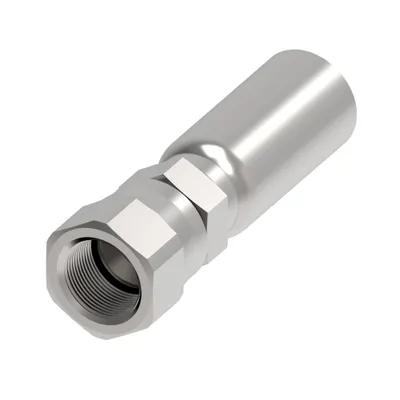

Available on requestFtng (perm), thermo 30 DEG NPSM SWIVEL
Available on requestHOSE FTG, 4T/08, US/08, CS, STR

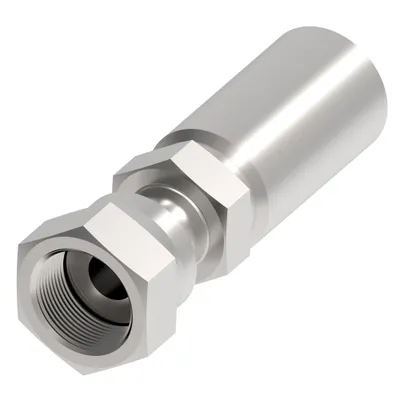

Available on requestFtng (perm), thermo ORFS STRAIGHT
