Danfoss 90308-084000

HOSE FTG, 4T/08, US/08, CS, STR

MPN
90308-084000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90308-084000?

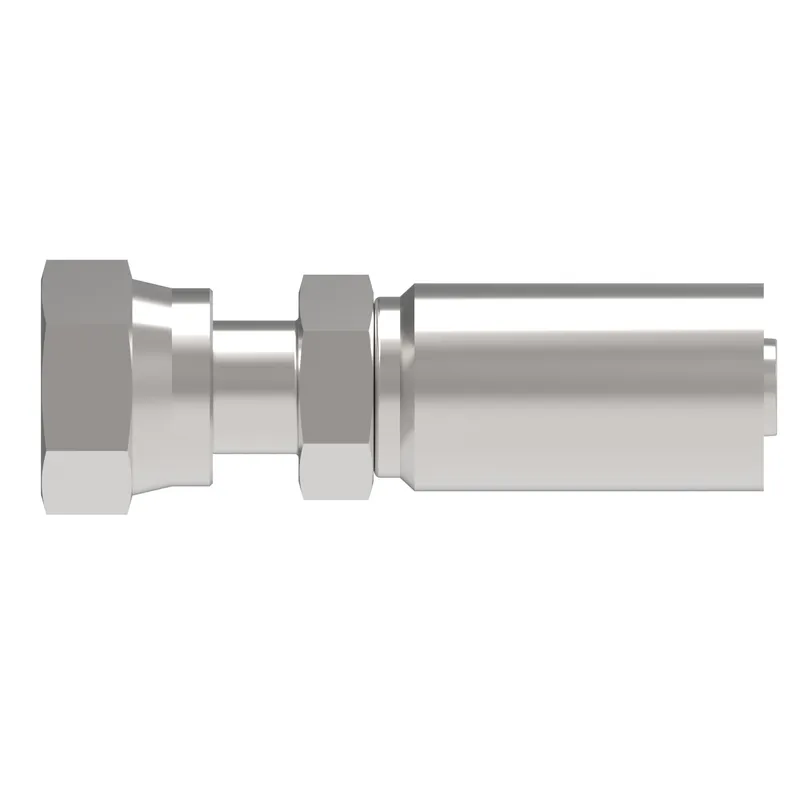

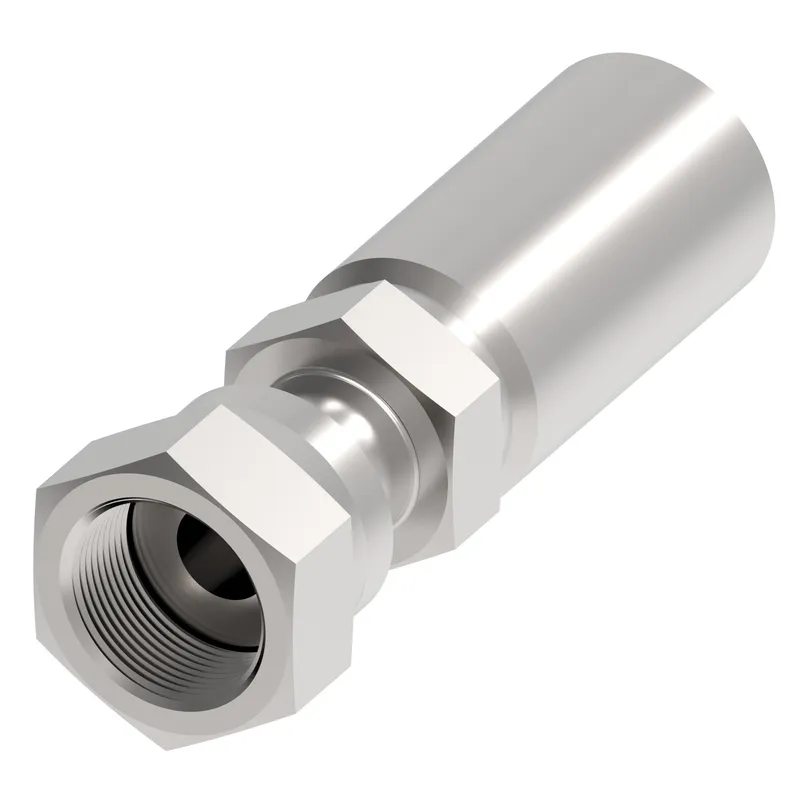

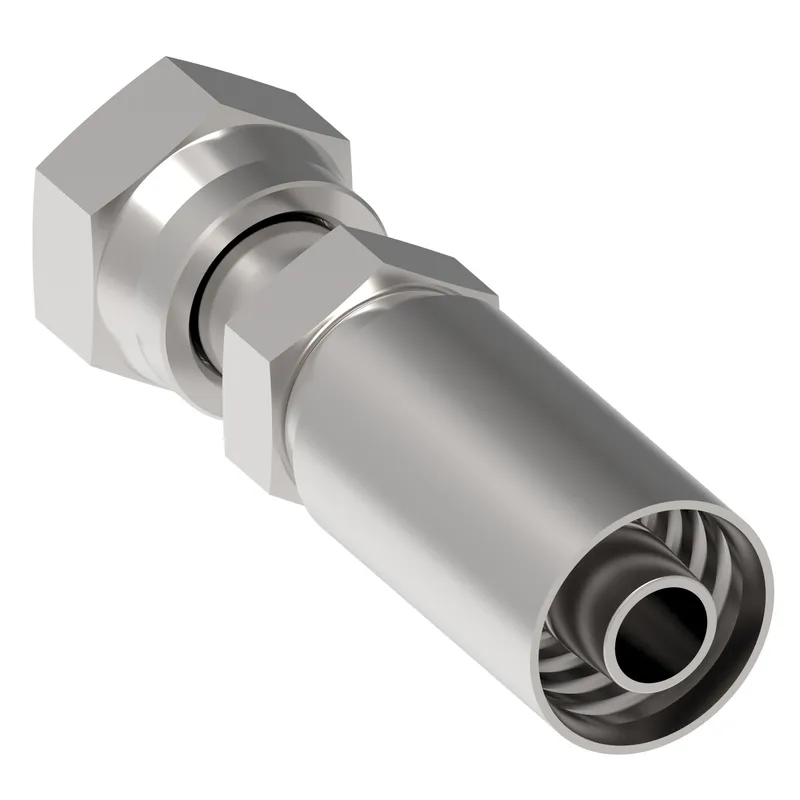

Danfoss HOSE FTG, 4T/08, US/08, CS, STR, manufacturer part number 90308-084000. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.050
A dimension MM77.470
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End type 1Female 37/45 universal swivel
Finish platingZinc plating
Hex size 1 IN0.938
Hex size 1 MM23.000
Hex size 2 IN1.063
Hex size 2 MM26.000
Hose cut off factor IN1.550
Hose cut off factor MM39.400
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.600
Product height in1.060
Product height mm26.924
Product length in3.050
Product length mm77.470
Product materialCarbon steel
Product width in1.060
Product width mm26.924 mm
Thread sealantNo
Thread size 113/16-16 UN
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90308-084000: frequently asked questions

When can 90308-084000 be shipped?

90308-084000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90308-084000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90308-084000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90308-084000, subject to availability and destination.
