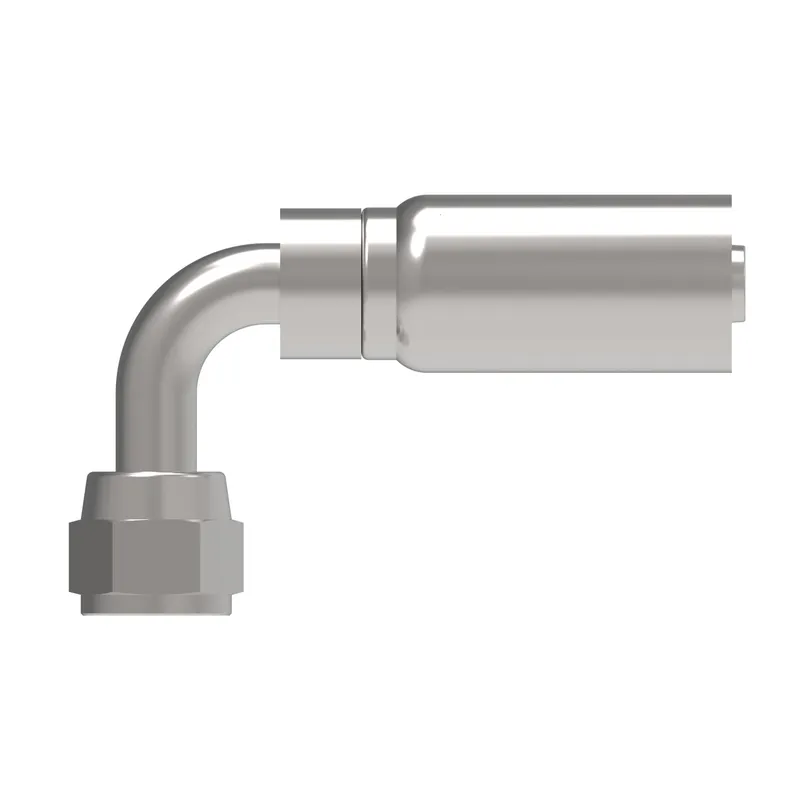

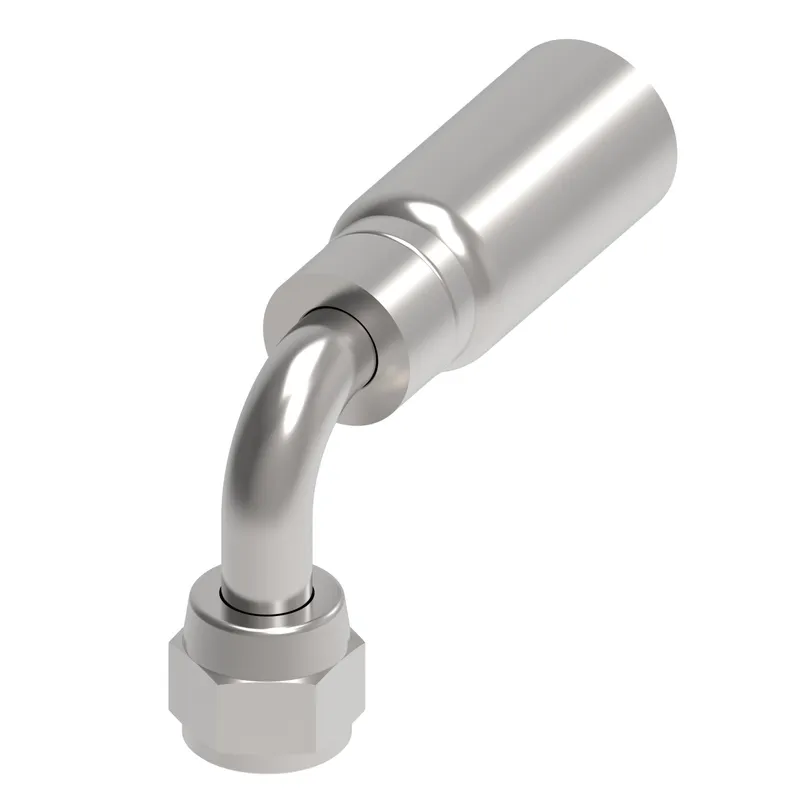

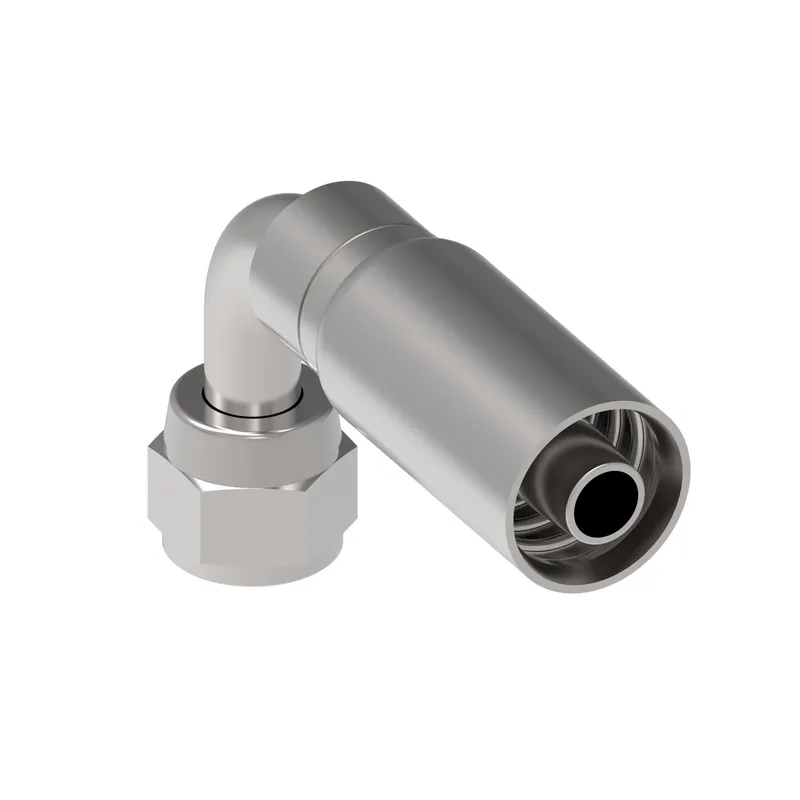

Danfoss 90306-0855S0-0

HOSE FTG, 4T/06, JIC-M/08, CS, 90D

MPN
90306-0855S0-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90306-0855S0-0?

Danfoss HOSE FTG, 4T/06, JIC-M/08, CS, 90D, manufacturer part number 90306-0855S0-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789325310
A dimension IN2.750
A dimension MM69.900
Angle shape90 Degree
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM35.0
End size 1-12
End type 1Female 37/45 universal swivel
Finish platingZinc plating
Hex size 1 IN0.875
Hex size 1 MM22.0
Hex size 2 IN0.880
Hex size 2 MM22.4
Hose cut off factor IN1.500
Hose cut off factor MM38.100
Hose size-8
Inside diameter IN0.280
Inside diameter MM7.100
Product height in1.370
Product height mm34.798
Product length in2.750
Product length mm69.850
Product materialCarbon steel
Product width in1.370
Product width mm34.798 mm
Thread sealantNo
Thread size 13/4-16 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90306-0855S0-0: frequently asked questions

When can 90306-0855S0-0 be shipped?

90306-0855S0-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90306-0855S0-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90306-0855S0-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90306-0855S0-0, subject to availability and destination.
