Danfoss 90305-0640S0-0

FTG:Steel: F-ORFS: 90SD WAS 3903-05476

MPN
90305-0640S0-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90305-0640S0-0?

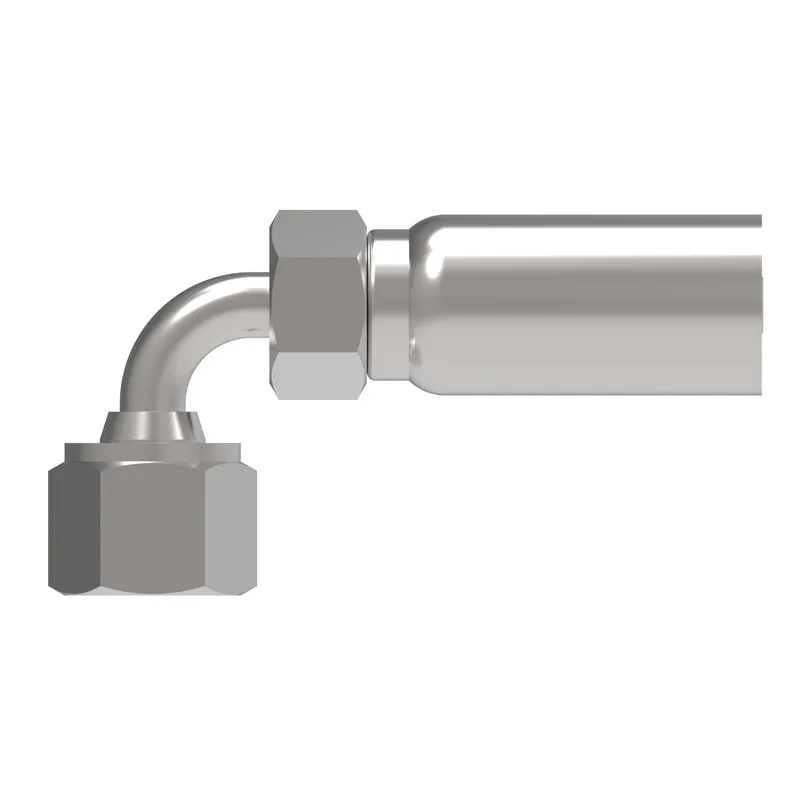

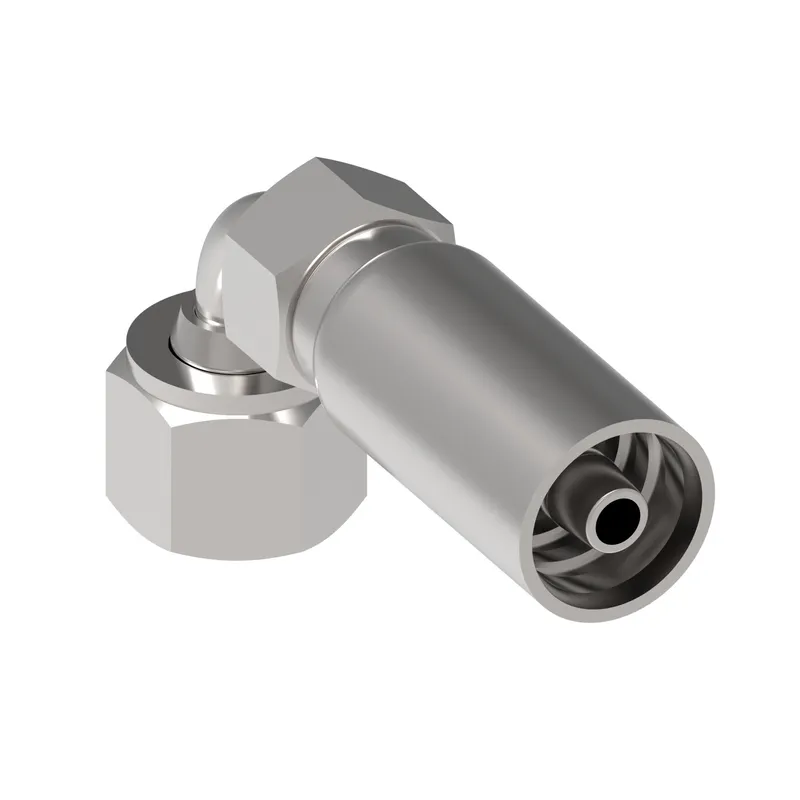

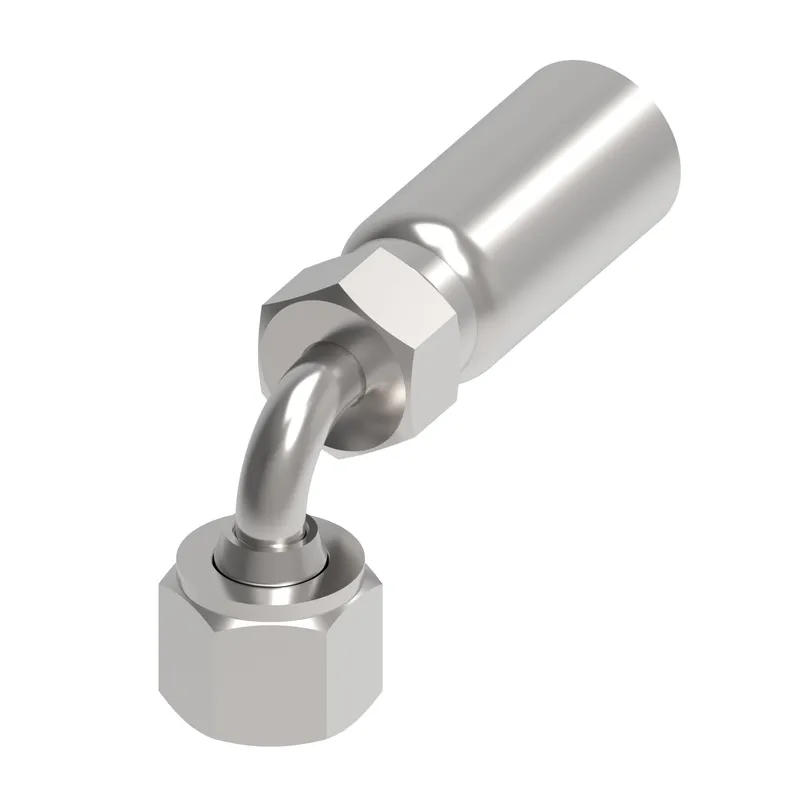

Danfoss FTG:Steel: F-ORFS: 90SD WAS 3903-05476, manufacturer part number 90305-0640S0-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Angle shape90 Degree
BrandSynflex by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Construction StyleSwage
End type 1Female ORFS swivel
Hex size 1 IN0.750
Hex size 1 MM19.050
Hex size 2 IN0.810
Hex size 2 MM20.574
Hose cut off factor IN1.940
Hose cut off factor MM49.276
Hose size-6
Inside diameter IN0.2800
Inside diameter MM7.1120
Product materialCarbon steel
Thread sealantNo

90305-0640S0-0: frequently asked questions

When can 90305-0640S0-0 be shipped?

90305-0640S0-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90305-0640S0-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90305-0640S0-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90305-0640S0-0, subject to availability and destination.
