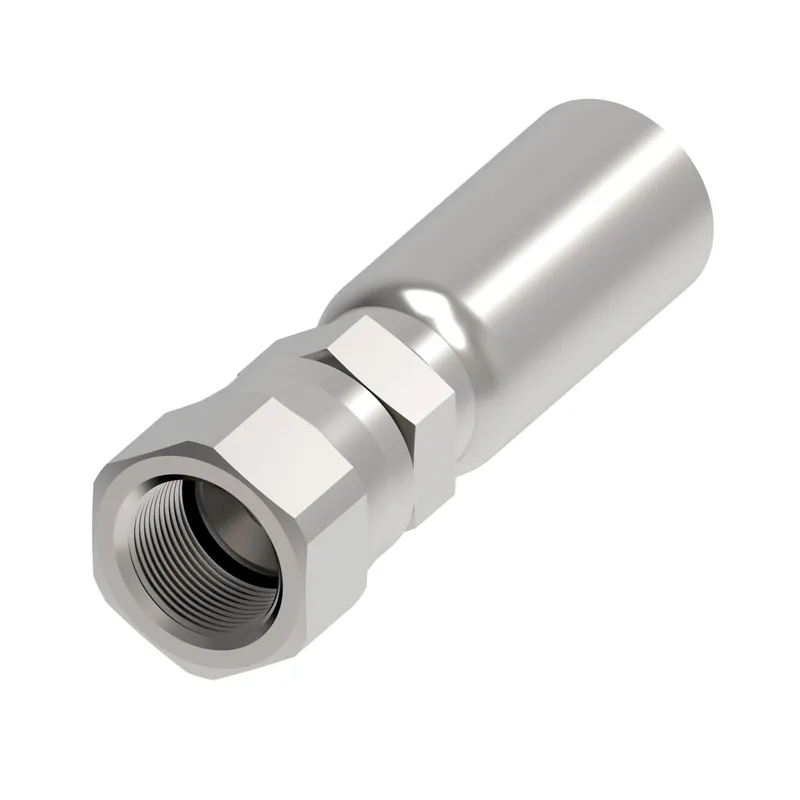

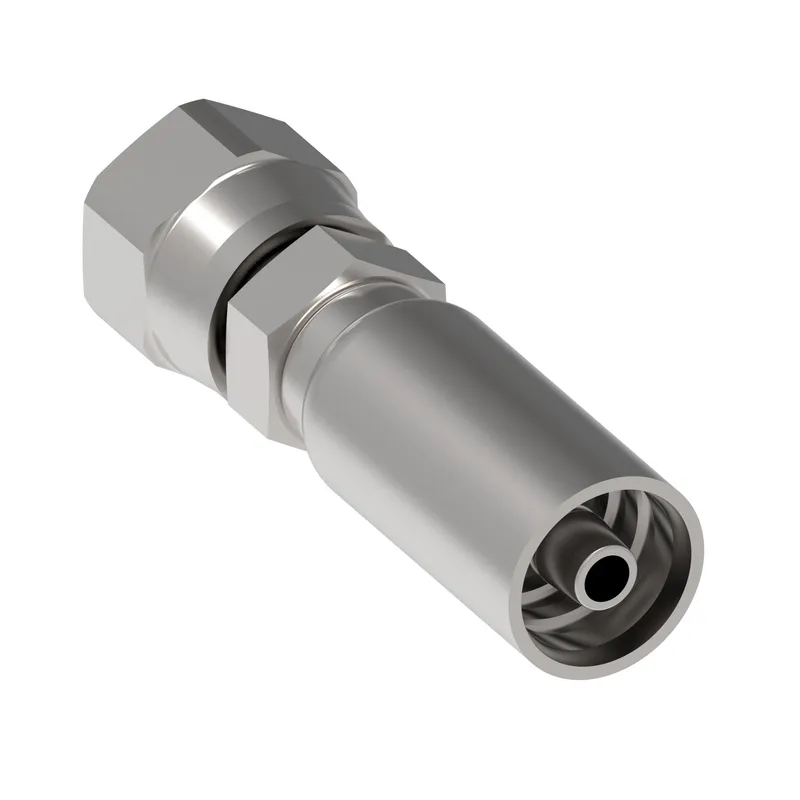

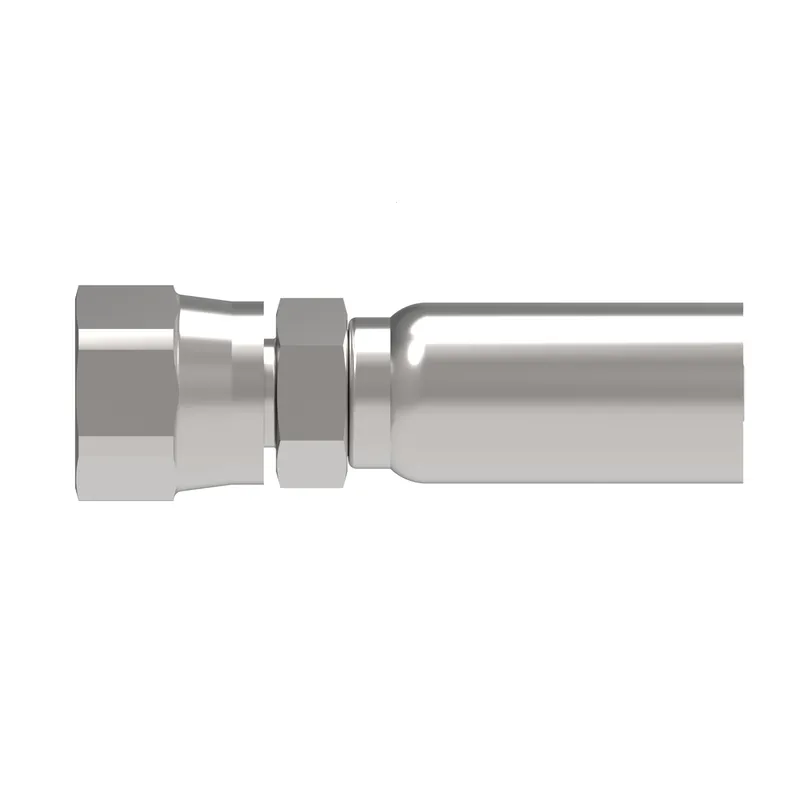

Danfoss 90305-065500

HOSE FTG, 4T/05, JIC-F/06, CS, STR

MPN
90305-065500
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90305-065500?

Danfoss HOSE FTG, 4T/05, JIC-F/06, CS, STR, manufacturer part number 90305-065500. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.540
A dimension MM64.400
Angle shapeStraight
Compatible hose ID IN0.310
Compatible hose ID MM7.874
Construction StyleCrimp
End size 1-6
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.625
Hex size 1 MM15.000
Hex size 2 IN0.750
Hex size 2 MM19.000
Hose cut off factor IN1.410
Hose cut off factor MM35.800
Hose size-5
Inside diameter IN0.220
Inside diameter MM5.600
Product height in0.790
Product height mm20.066
Product length in2.300
Product length mm58.420
Product materialCarbon steel
Product width in0.790
Product width mm20.066 mm
Thread sealantNo
Thread size 19/16-18 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90305-065500: frequently asked questions

When can 90305-065500 be shipped?

90305-065500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90305-065500 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90305-065500 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90305-065500, subject to availability and destination.
