Danfoss 90305-055400-0

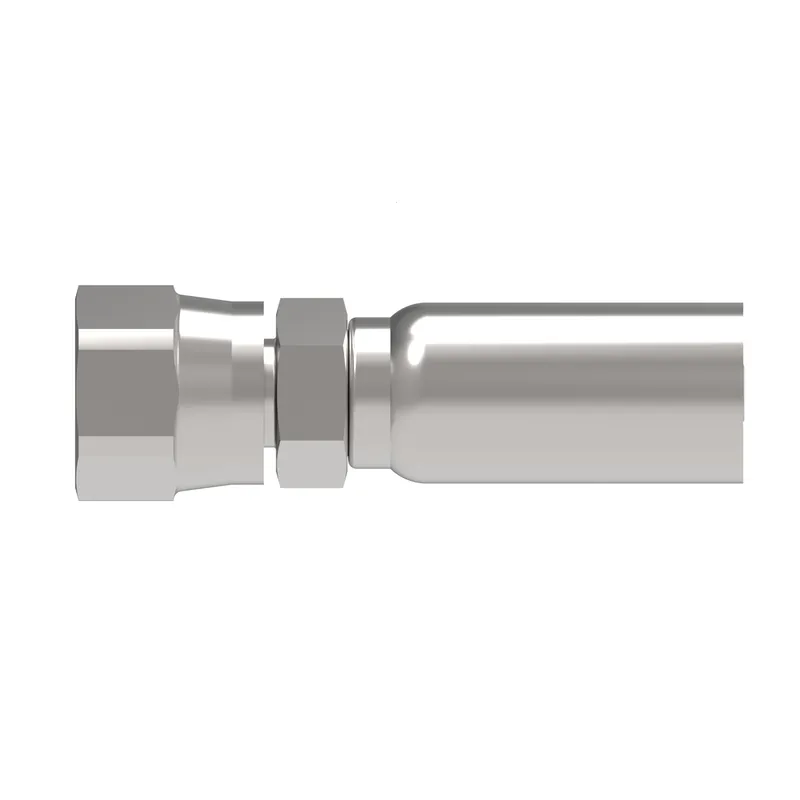

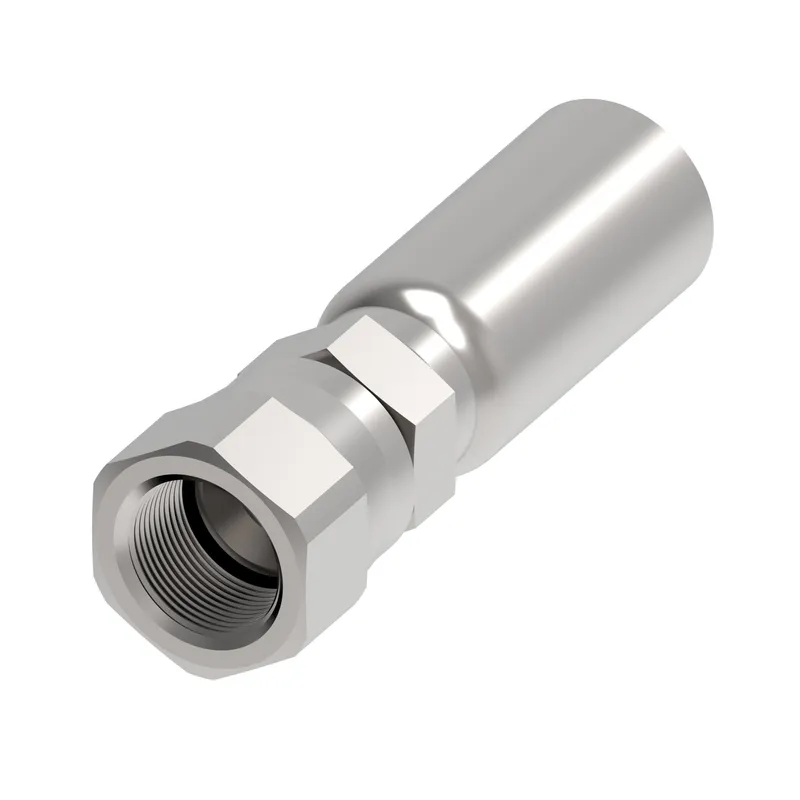

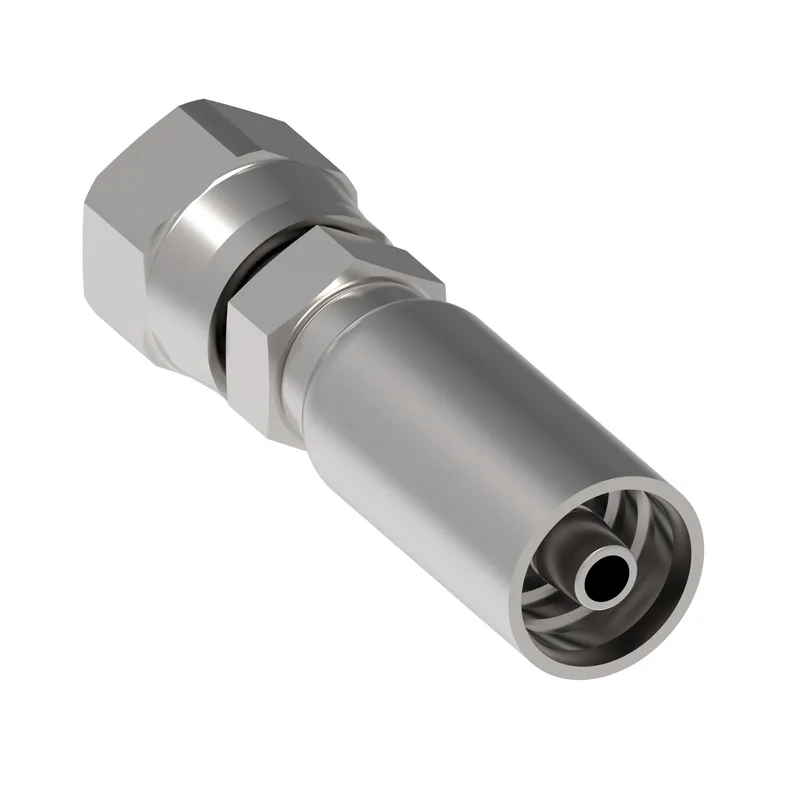

HOSE FTG, 4T/05, JIC-F/05, CS, STR

MPN
90305-055400-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90305-055400-0?

Danfoss HOSE FTG, 4T/05, JIC-F/05, CS, STR, manufacturer part number 90305-055400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789325020
A dimension IN2.526
A dimension MM64.160
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.310
Compatible hose ID MM7.874
Compatible hoses37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30
Construction StyleCrimp
End size 1-8
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.625
Hex size 1 MM15.0
Hex size 2 IN0.750
Hex size 2 MM19.0
Hose cut off factor IN1.401
Hose cut off factor MM35.590
Hose size-5
Inside diameter IN0.219
Inside diameter MM5.560
Product height in0.750
Product height mm19.050
Product length in2.530
Product length mm64.262
Product materialCarbon steel
Product width in0.750
Product width mm19.050 mm
Thread sealantNo
Thread size 11/2-20 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90305-055400-0: frequently asked questions

When can 90305-055400-0 be shipped?

90305-055400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90305-055400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90305-055400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90305-055400-0, subject to availability and destination.
